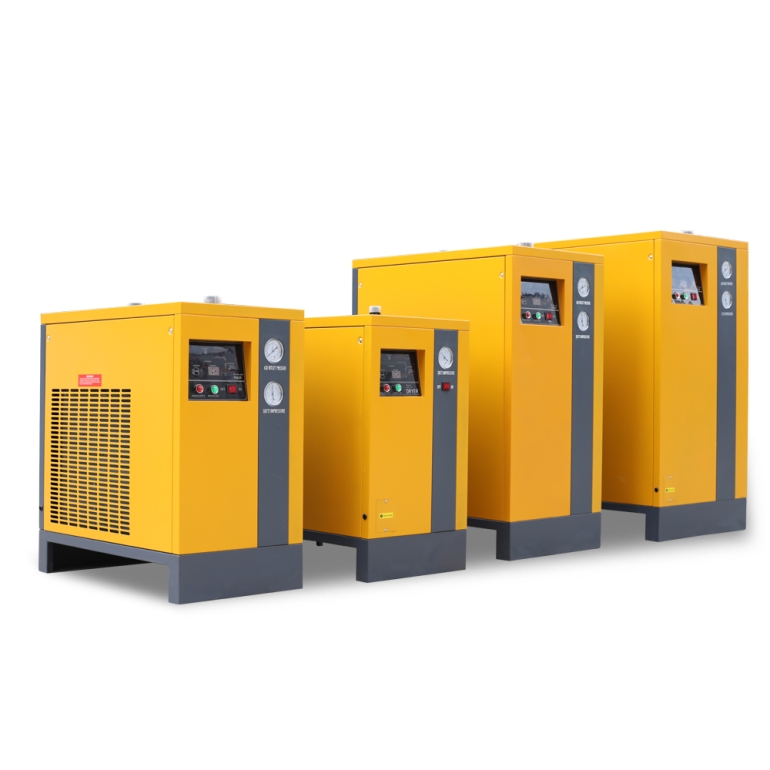

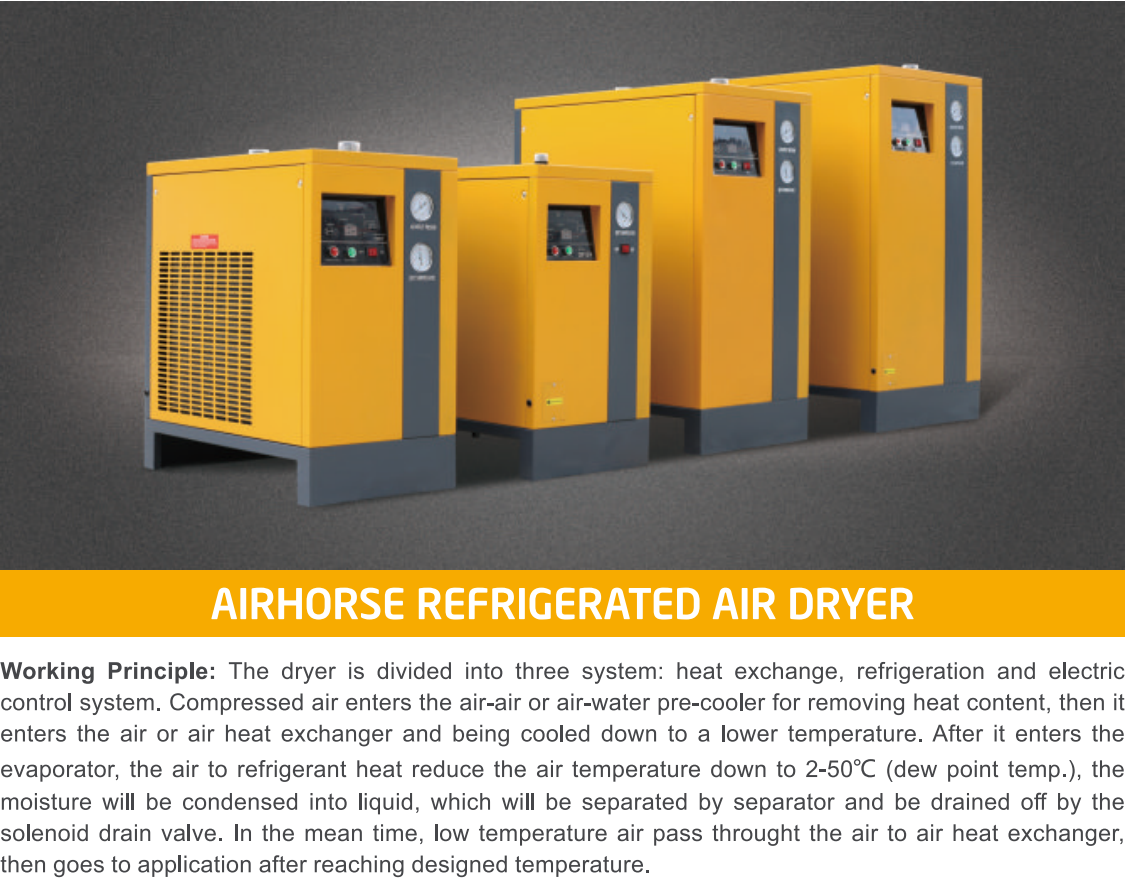

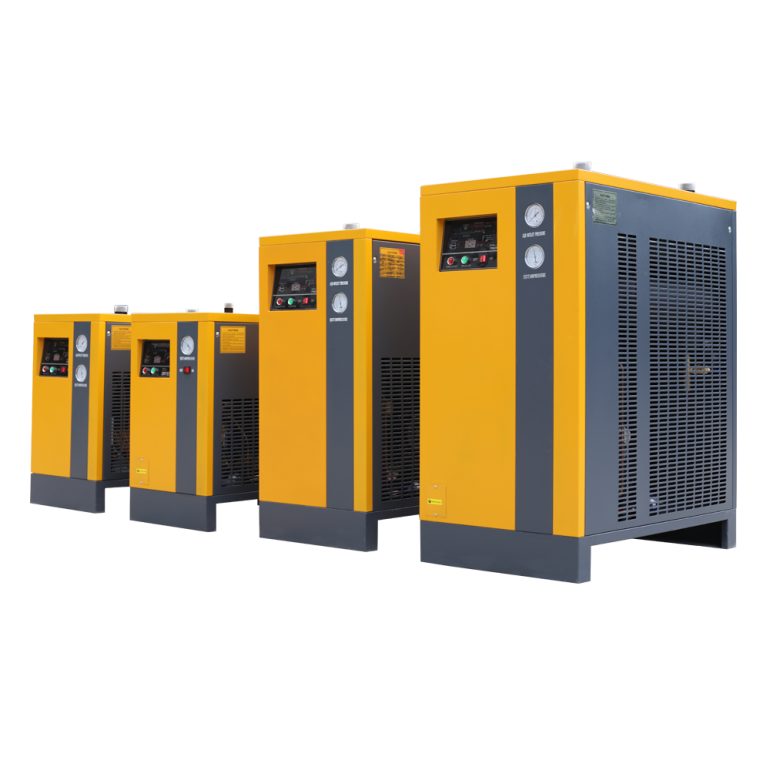

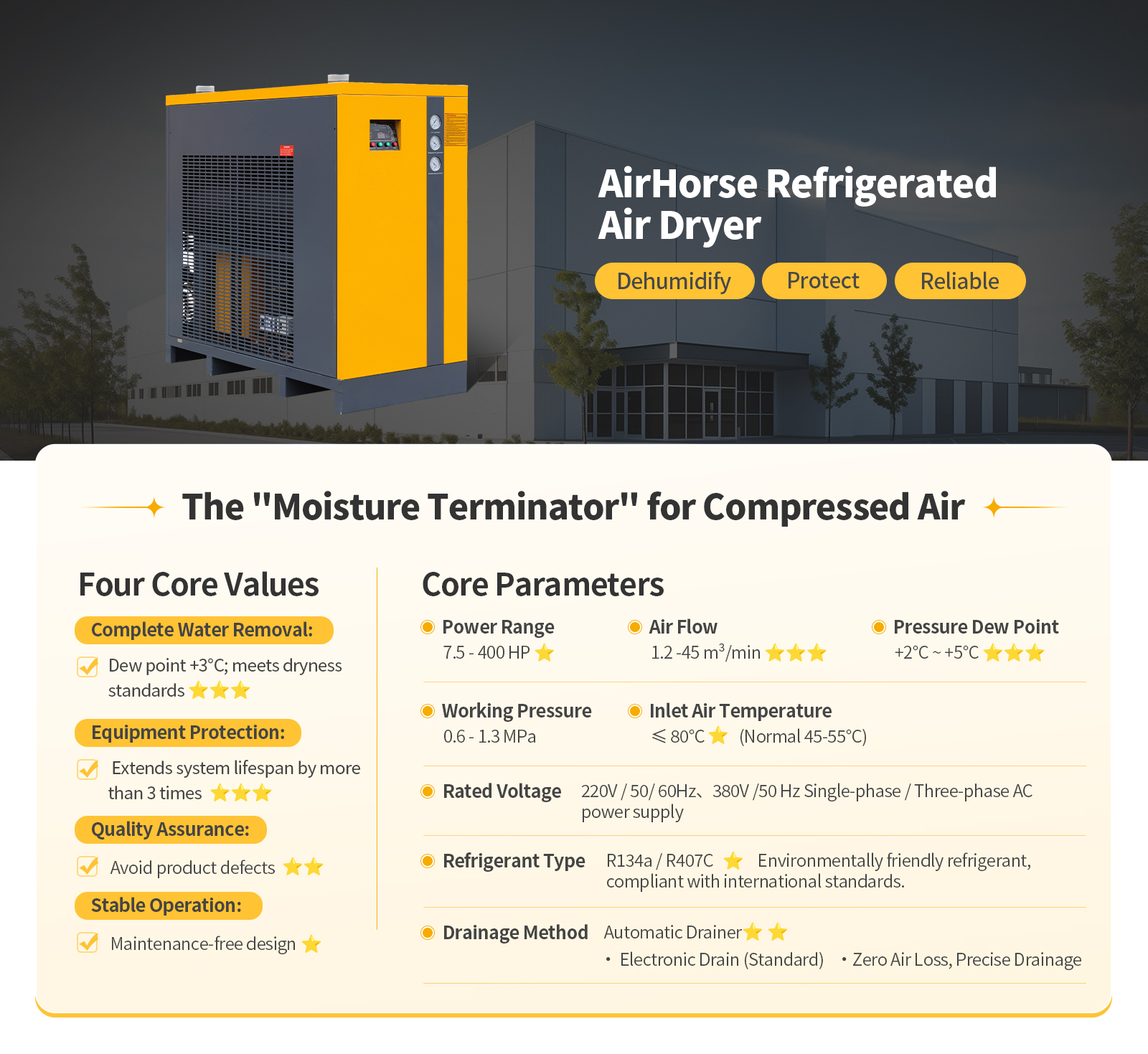

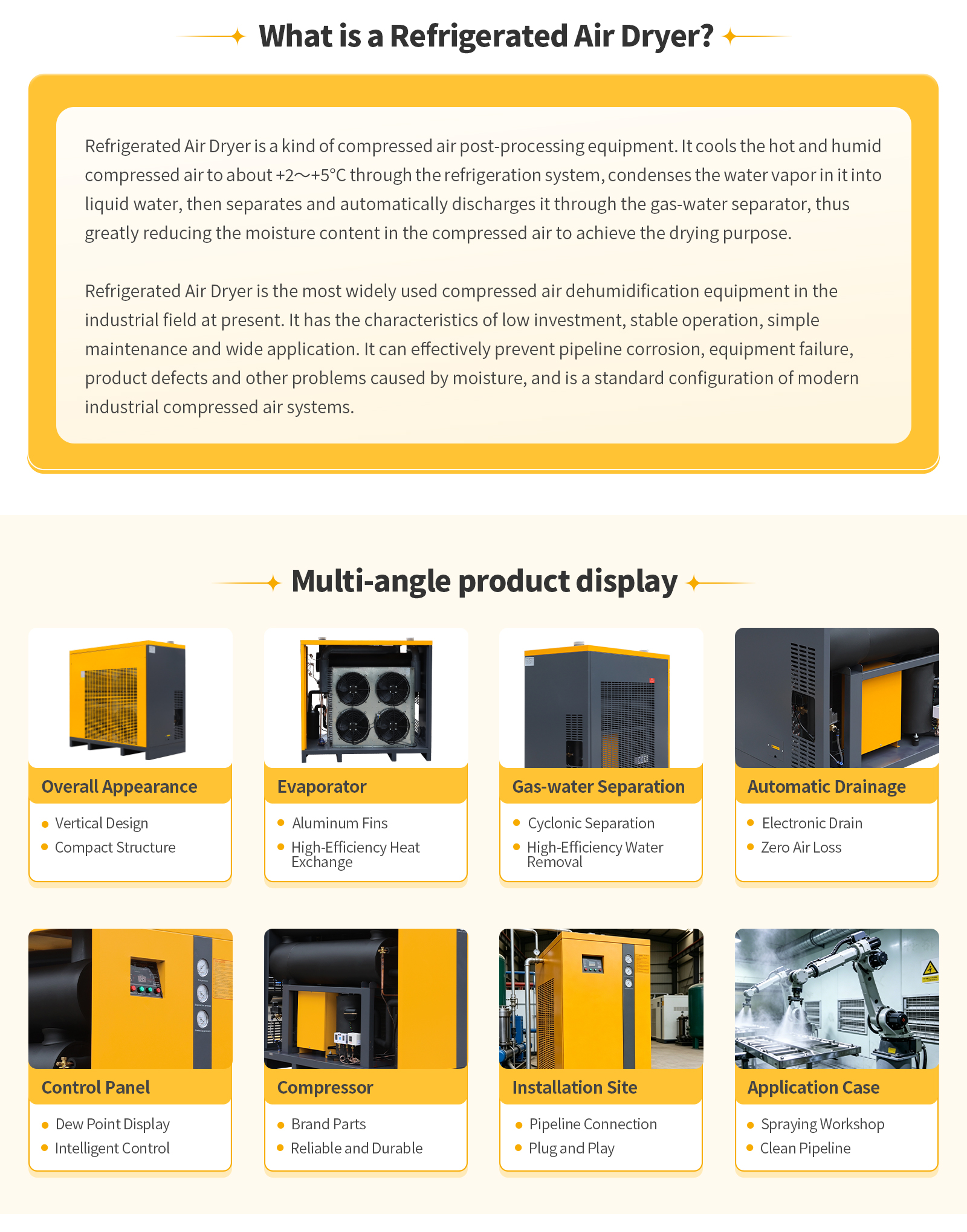

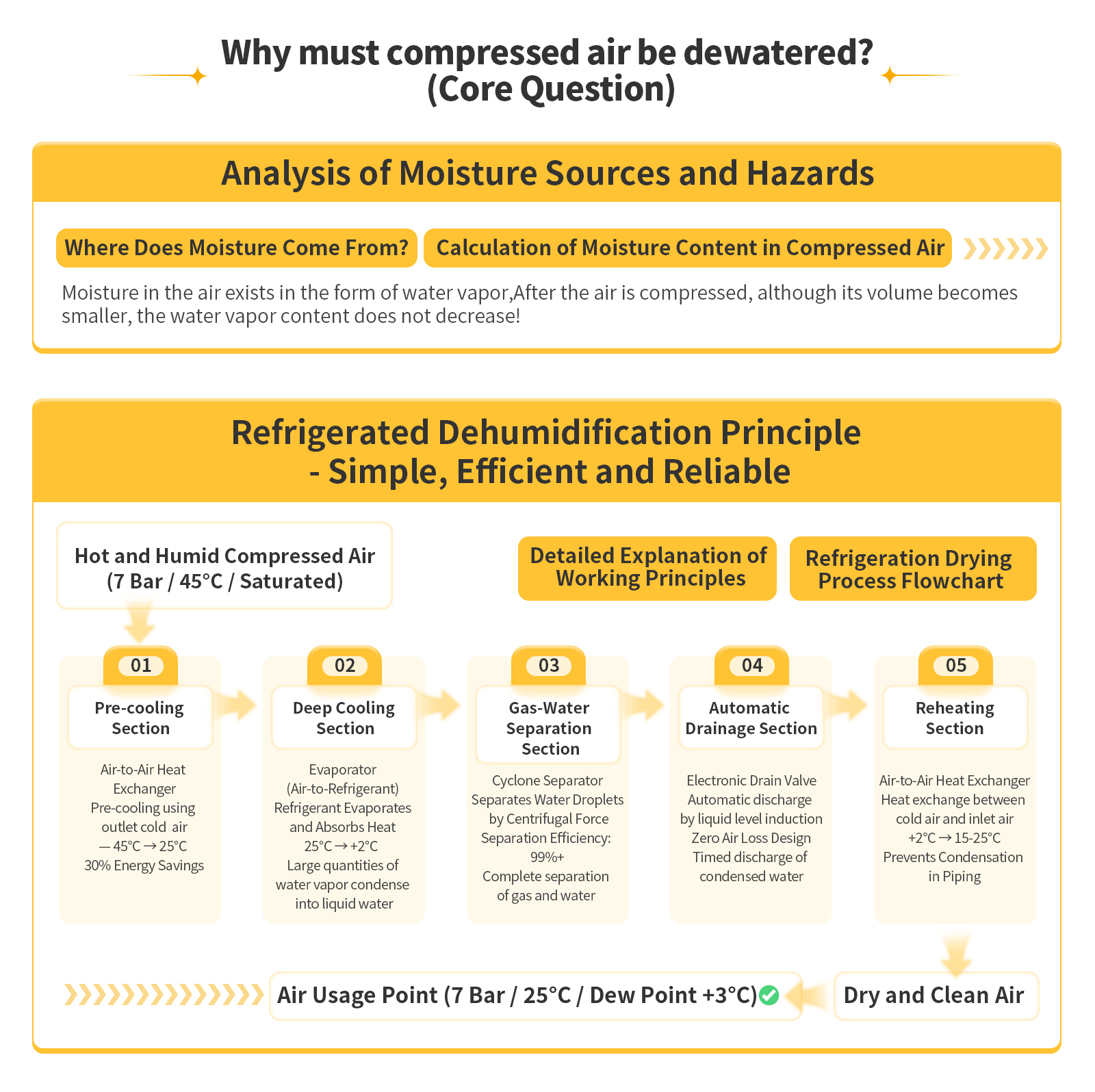

Refrigerated air dryer in the 7.5 – 400 HP range is a compressed-air after-treatment device whose primary job is to remove moisture from compressed air and lower its pressure dew point to about +2 °C to +10 °C. By doing so, it prevents corrosion, icing, pipeline water accumulation, product defects, and instrumentation failures caused by water vapour.

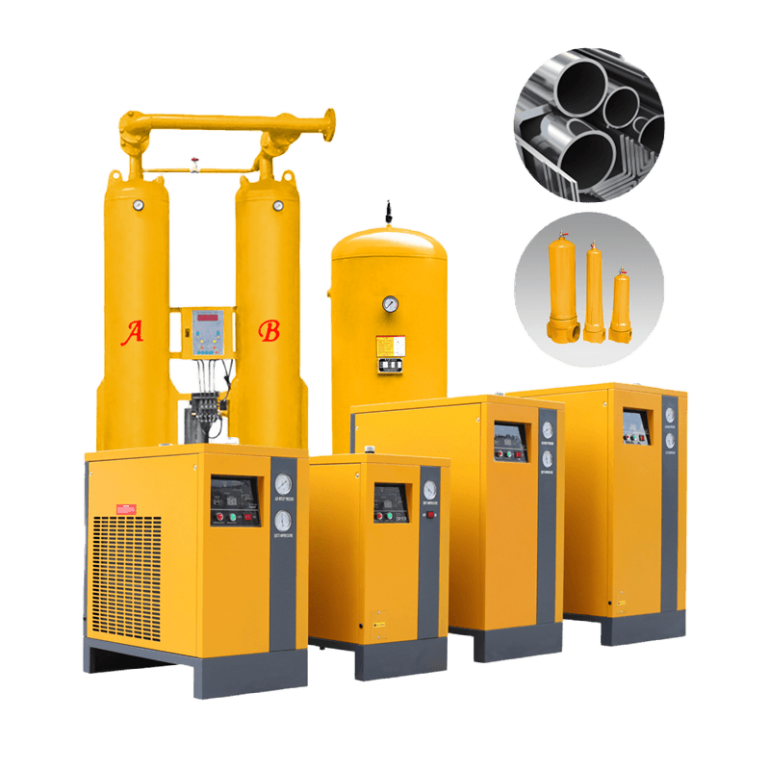

The post-processing equipment of the air compressor has：Refrigerated compressed air dryer, Air tank, Pipeline air filter.

Next Product

Inquire Now

Product Details

Technical Parmeters

Catalogue Download

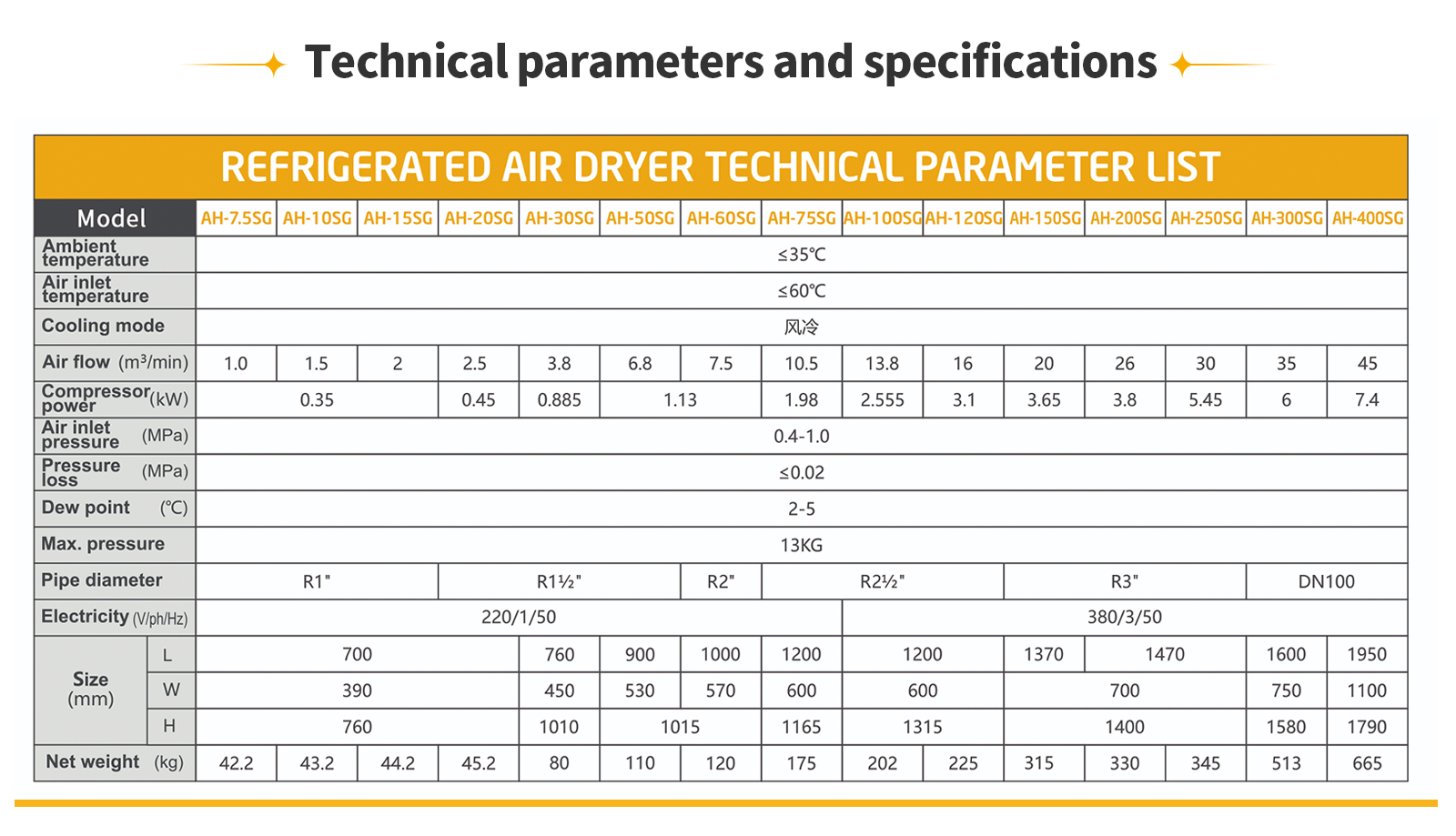

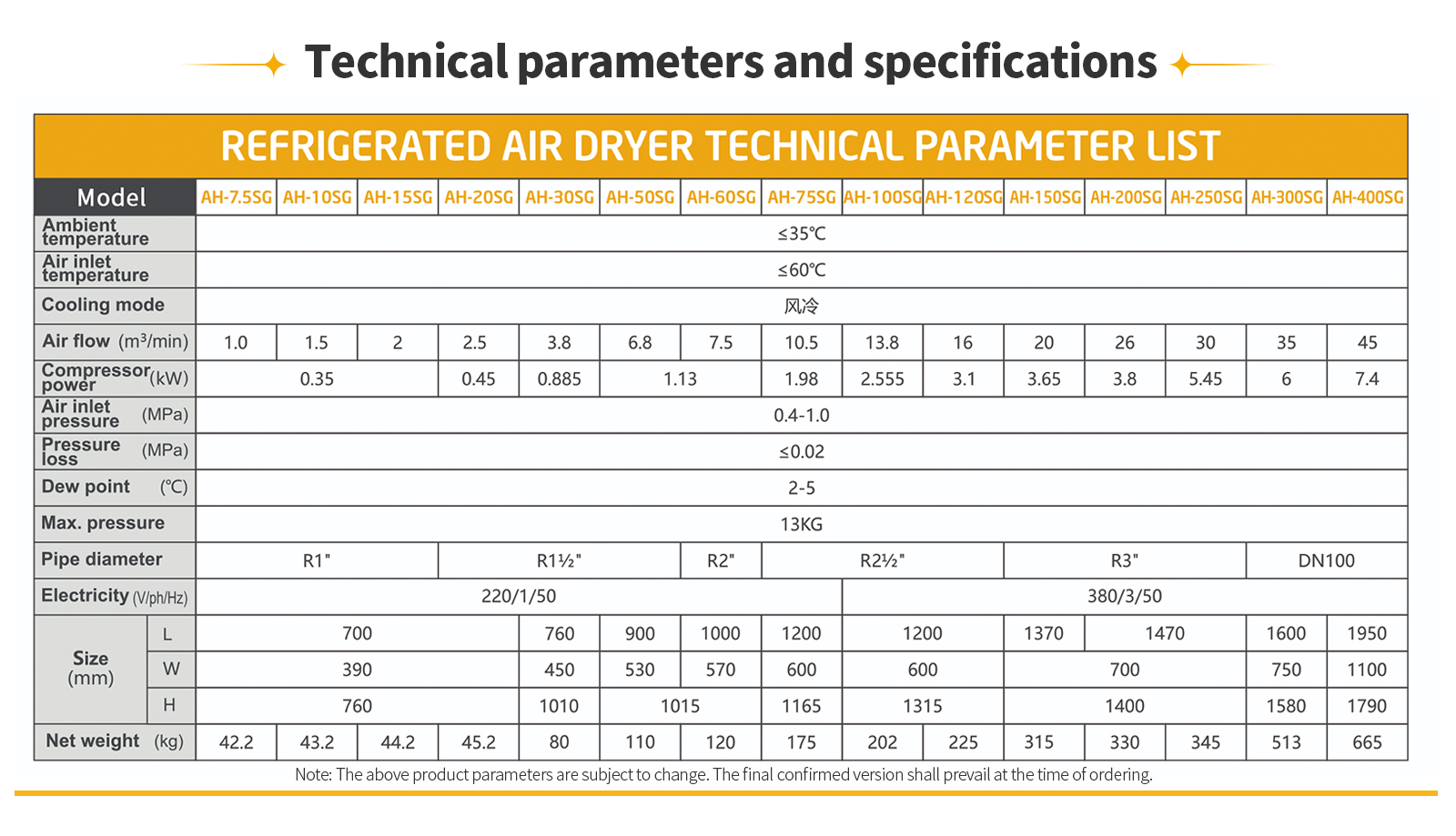

REFRIGERATED AIR DRYER TECHNICAL PARAMETER LIST
MODEL		AH-7.5SG	AH-10SG	AH-15SG	AH-20SG	AH-30SG	AH-50G	AH-60G	AH-75G	AH-100G	AH-120G	AH-150GF	AH-200GF	AH-250GF	AH-300GF	AH-400GF
Ambienttemperature		35℃
Cooling mode		Air cooling
Air flow (m³/min)		1.2	2	2.5	2.8	3.8	6.8	7.5	11	13.8	17	21	27	32	37	45
Compressor power(KW)		0.35			0.45	0.885	1.13		1.98	2.555	3.1	3.65	3.8	5.45	6	7.4
Air inletpressure(Mpa)		0.4~1.0
Dew point(Mpa)		≤0.02
Dew point(℃)		2--5
Max. pressure		13KG
Pipe diameter		R1"			R1 1/2"			R2 "	R2 1/2"			R3"			DN100
Electricity (V/phHz)		220/1/50										380/3/50
Size（mm）	L	700				760	900	1000	1200	1200		1370	1470		1600	1950
	W	390				450	530	570	600	600		700	700		750	1100
	H	730				970	1070	970	1120	1270		1350	1350		1580	1700
Net weight （KG）		42.2	43.2	44.2	45.2	80	110	123	175	202	225	315	330	345	513	665

*FRIENDLY REMINDER: This parameter list is for reference only. We may adjust the related parameter. if there is any change, we will not inform you otherwise.If you do not know, please call us.
*FRIENDLY REMINDER: The standard specifications of our products are applicable to regions with an altitude below 1,000 meters. For usage environments exceeding 1,000 meters above sea level, please feel free to contact us for customized configurations to ensure optimal equipment performance and operational safety.
