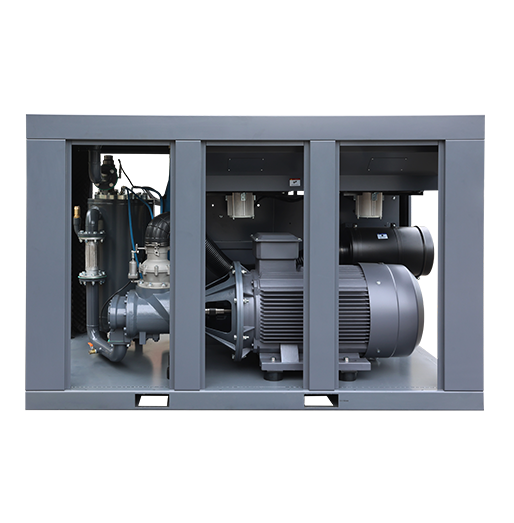

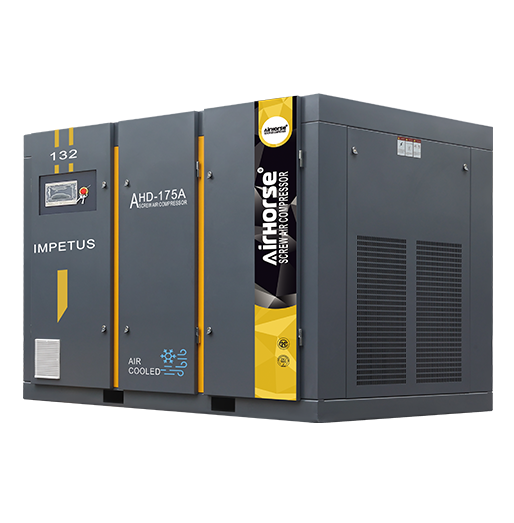

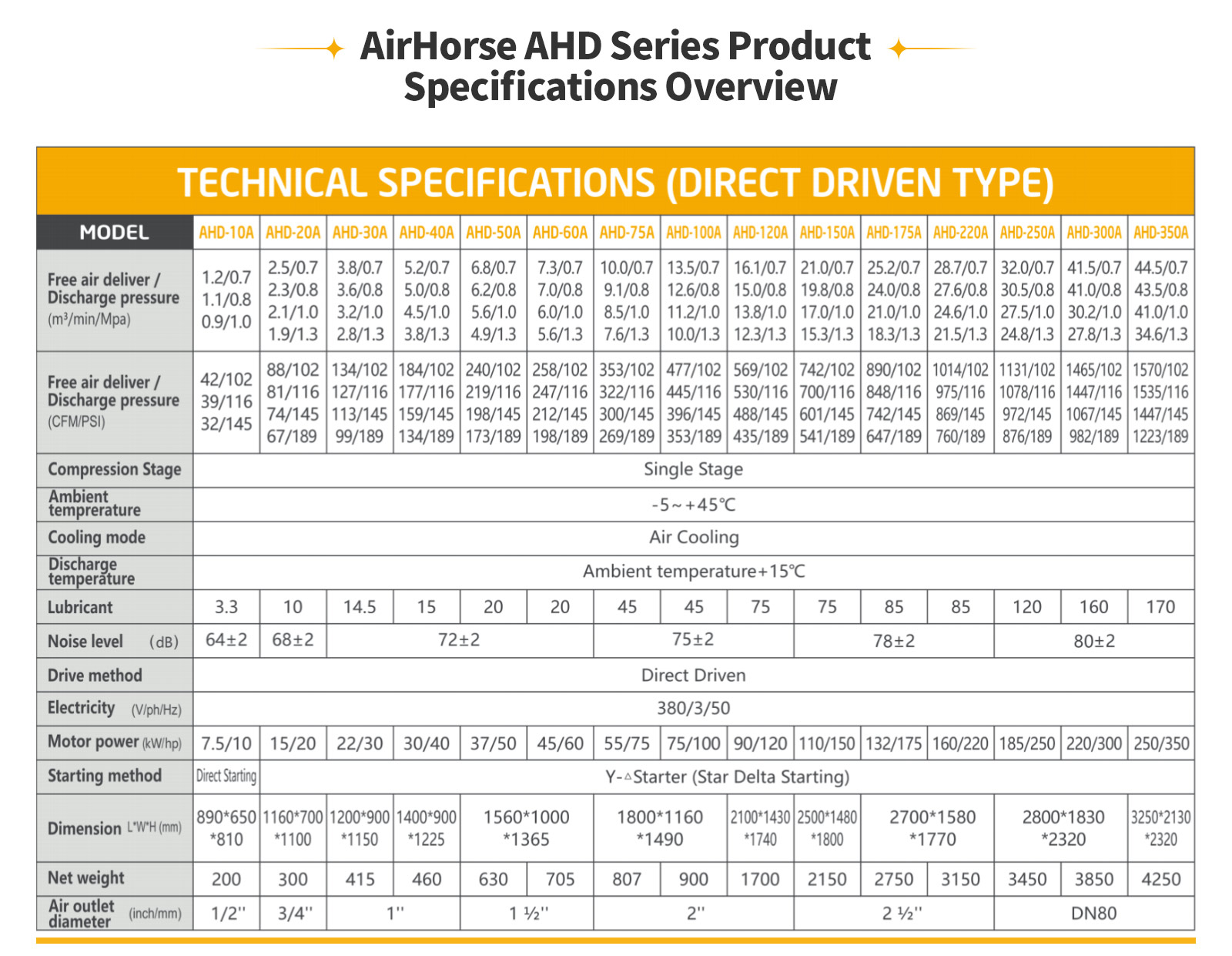

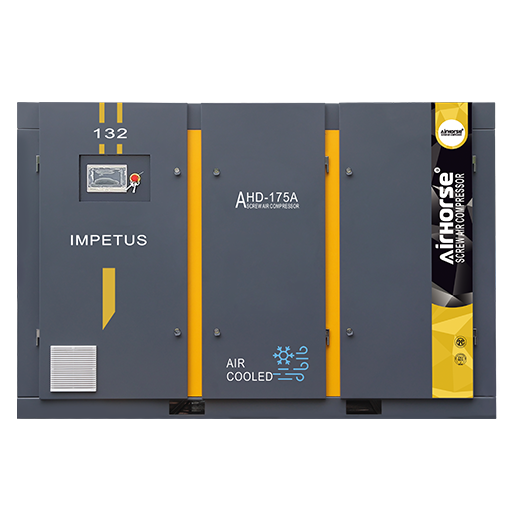

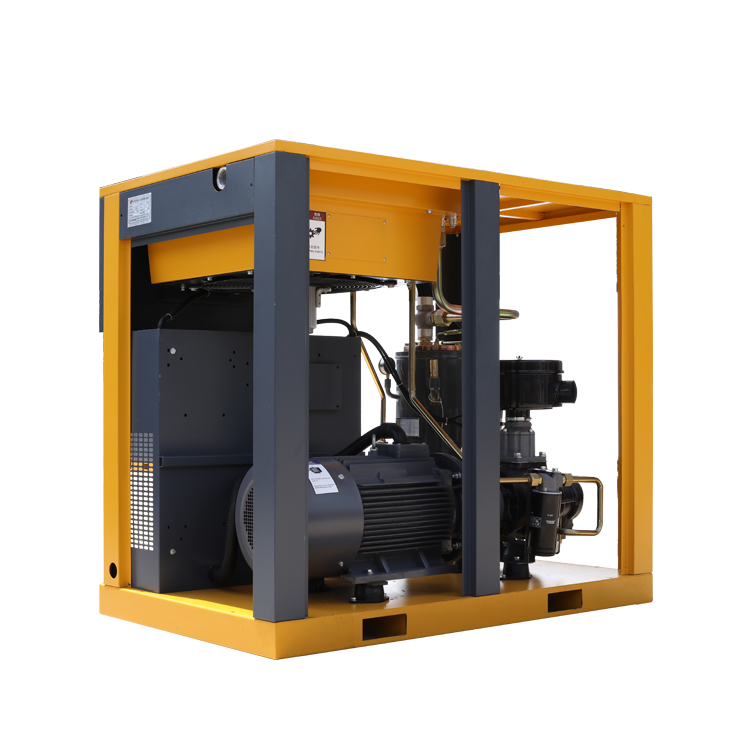

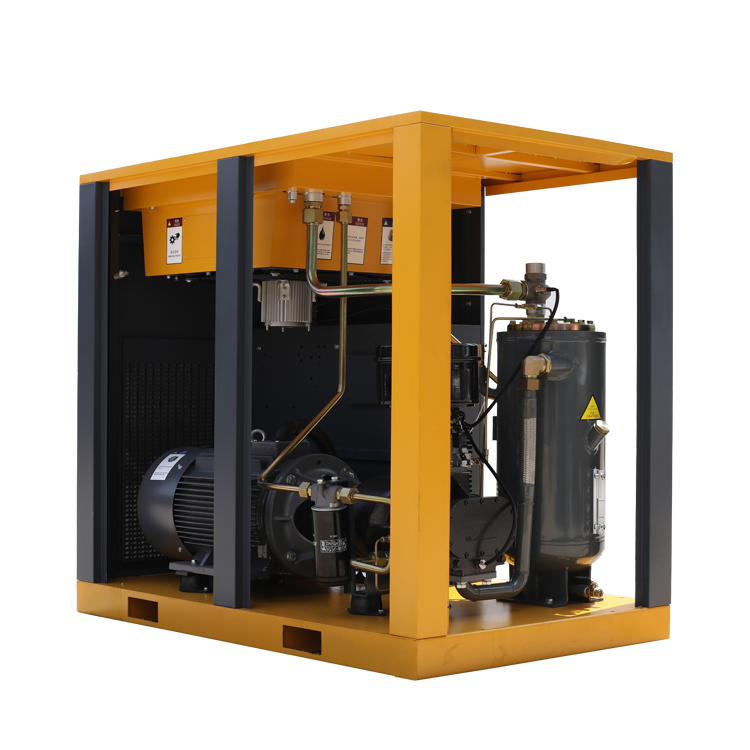

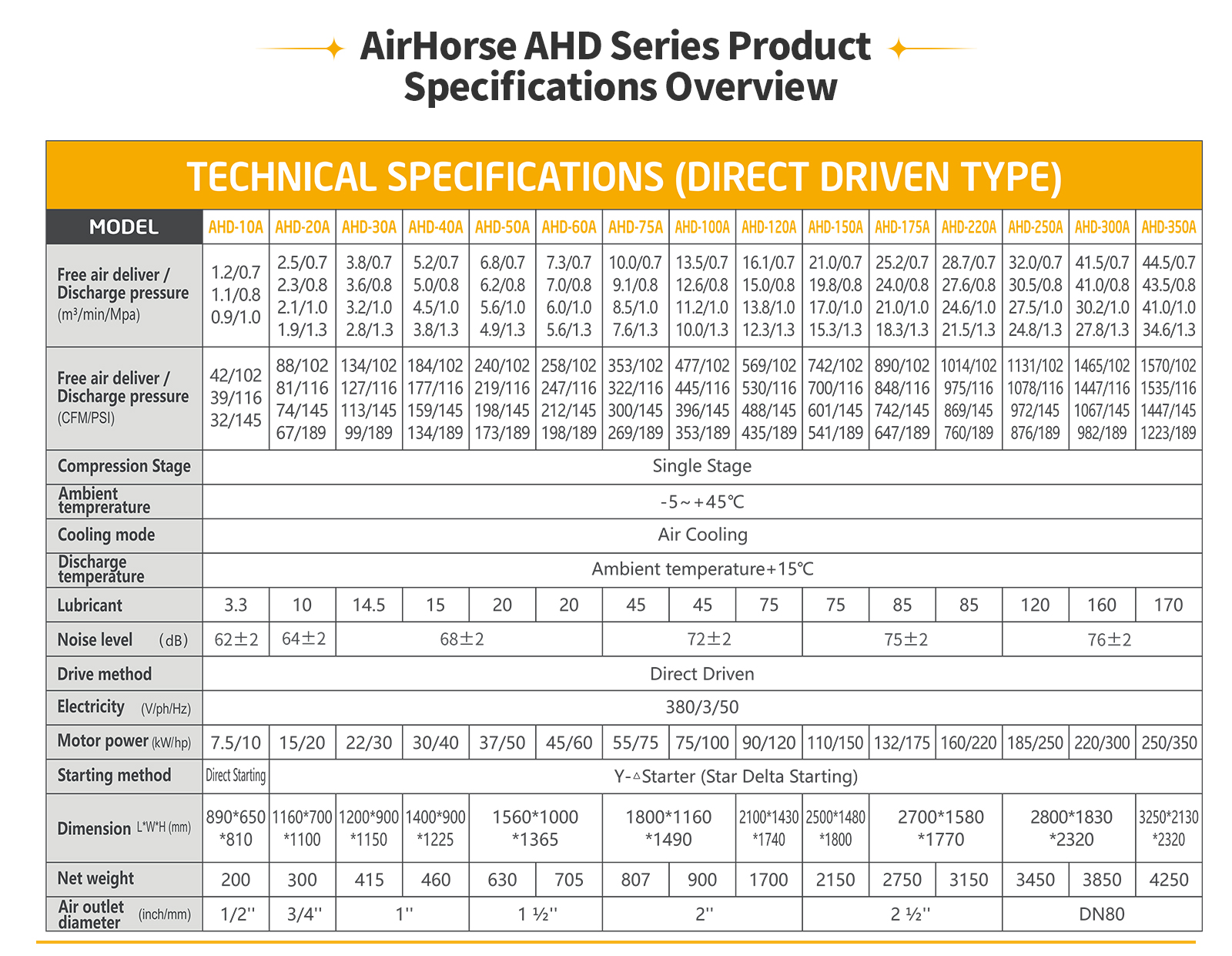

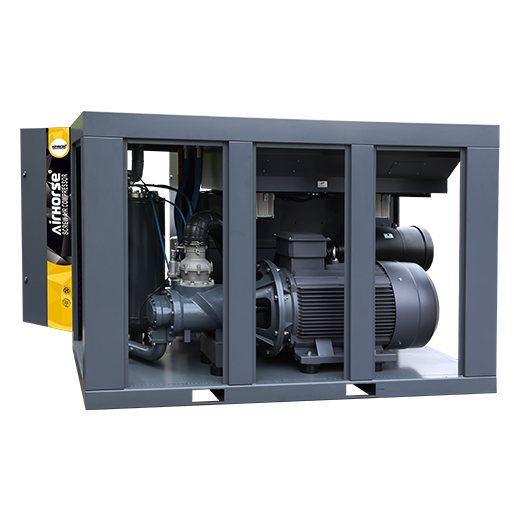

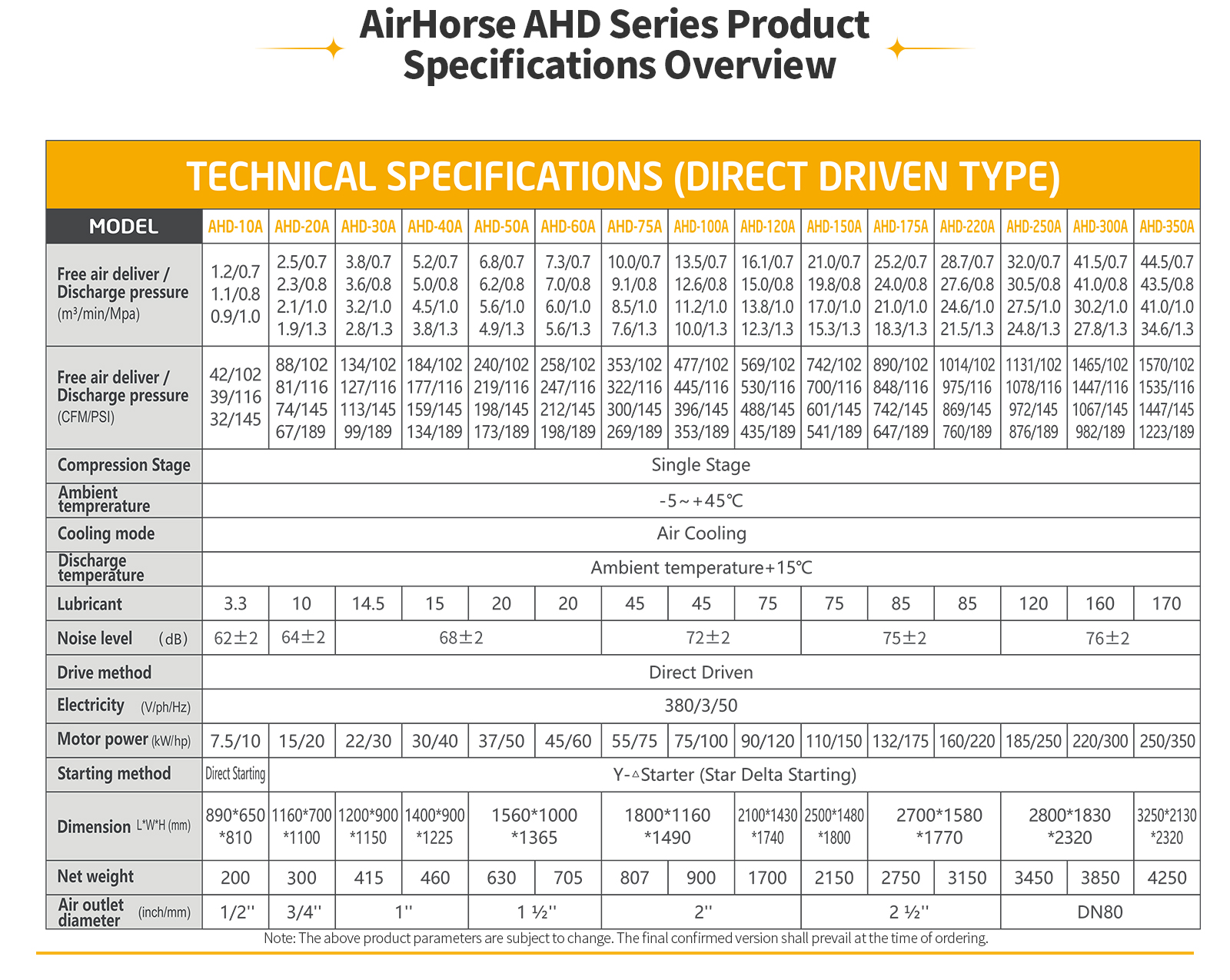

| AirHorse Screw Air Compressor (Direct driven) | |||||||||||||||

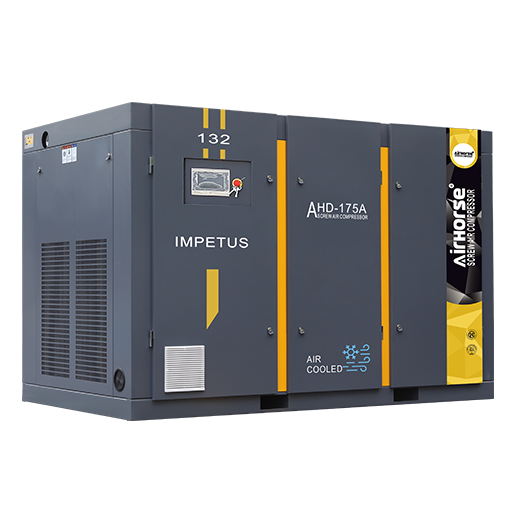

| Model | AHD-10A | AHD-20A | AHD-30A | AHD-40A | AHD-50A | AHD-60A | AHD-75A | AHD-100A | AHD-120A | AHD-150A | AHD-175A | AHD-220A | AHD-250A | AHD-300A | AHD-350A |
| Free air deliver/Discharge pressure (m3/min/Mpa) |
1.2/0.7 1.1/0.8 0.9/1.0 | 2.5/0.7 2.3/0.8 2.1/1.0 1.9/1.3 | 3.8/0.7 3.6/0.8 3.2/1.0 2.8/1.3 | 5.2/0.7 5.0/0.8 4.5/1.0 3.8/1.3 |
6.8/0.7 6.2/0.8 5.6/1.0 4.9/1.3 | 7.3/0.7 7.0/0.8 6.0/1.0 5.6/1.3 |
10.0/0.7 9.1/0.8 8.5/1.0 7.6/1.3 |
13.5/0.7 12.6/0.8 11.2/1.0 10.0/1.3 |
16.1/0.7 15.0/0.8 13.8/1.0 12.3/1.3 |
21/0.7 19.8/0.8 17.0/1.0 15.3/1.3 |
25.2/0.7 24.0/0.8 21.0/1.0 18.3/1.3 |
28.7/0.7 27.6/0.8 24.6/1.0 21.5/1.3 |
32.0/0.7 30.5/0.8 27.5/1.0 24.8/1.3 | 41.5/0.7 41.0/0.8 30.2/1.0 27.8/1.3 | 44.5/0.7 43.5/0.8 41.0/1.0 34.6/1.3 |
| Free air deliver/Discharge pressure (CFM/PSI) |
42/102 39/116 32/145 | 88/102 81/116 74/145 67/189 | 134/102 127/116 113/145 99/189 | 184/102 177/116 159/145 134/189 |
240/102 219/116 198/145 173/189 | 258/102 247/116 212/145 198/189 |
353/102 322/116 300/145 269/189 |
477/102 445/116 396/145 353/189 |
569/102 530/116 488/145 435/189 |
742/102 700/116 601/145 541/189 |
890/102 848/116 742/145 647/189 |
1014/102 975/116 869/145 760/189 |
1131/102 1078/116 972/145 876/189 | 1465/102 1447/116 1067/145 982/189 | 1570/102 1535/116 1447/145 1223/189 |
| Compression stage | Single stage | ||||||||||||||
| Ambient temprerature | -5--+45℃ | ||||||||||||||
| Cooling mode | Air cooling | ||||||||||||||
| Discharge temperature | Ambient temperature+15℃ | ||||||||||||||
| Lubricant (L) | 3.3 | 10 | 14.5 | 15 | 20 | 45 | 75 | 85 | 120 | 210 | 220 | ||||
| Noise Level （Db） | 62±2 | 64±2 | 68±2 | 72±2 | 75±2 | 76±2 | |||||||||
| Drive method | Direct driven | ||||||||||||||
| Electricity （V/ph/Hz） | 380/3/50 | ||||||||||||||
| Motor power（KW/HP） | 7.5/10 | 15/20 | 22/30 | 30/40 | 37/50 | 45/60 | 55/75 | 75/100 | 90/120 | 110/150 | 132/175 | 160/220 | 185/250 | 220/300 | 250/350 |
| Starting methodDirect driven | Direct driven | Y-△Starter (Star delta starting) | |||||||||||||
| Dimension（mm） | 890*650*810 | 1160*700*1100 | 1200*900*1150 | 1400*900*1225 | 1560*1000*1365 | 1800*1160*1490 | 2100*1400*1780 | 2500*1450*1800 | 2700*1550*1800 | 2800*1550*1950 | 3250*2100*2300 | ||||
| Net Weight （KG） | 200 | 230 | 415 | 460 | 630 | 705 | 870 | 900 | 1900 | 2150 | 2750 | 3150 | 3450 | 3850 | 4250 |
| Air outlet diameter (inch/mm) | 1/2'' | 3/4'' | 1'' | 11/2'' | 2'' | 2 1/2'' | DN80 | ||||||||
*FRIENDLY REMINDER: This parameter list is for reference only. We may adjust the related parameter. if there is any change, we will not inform you otherwise.If you do not know, please call us.

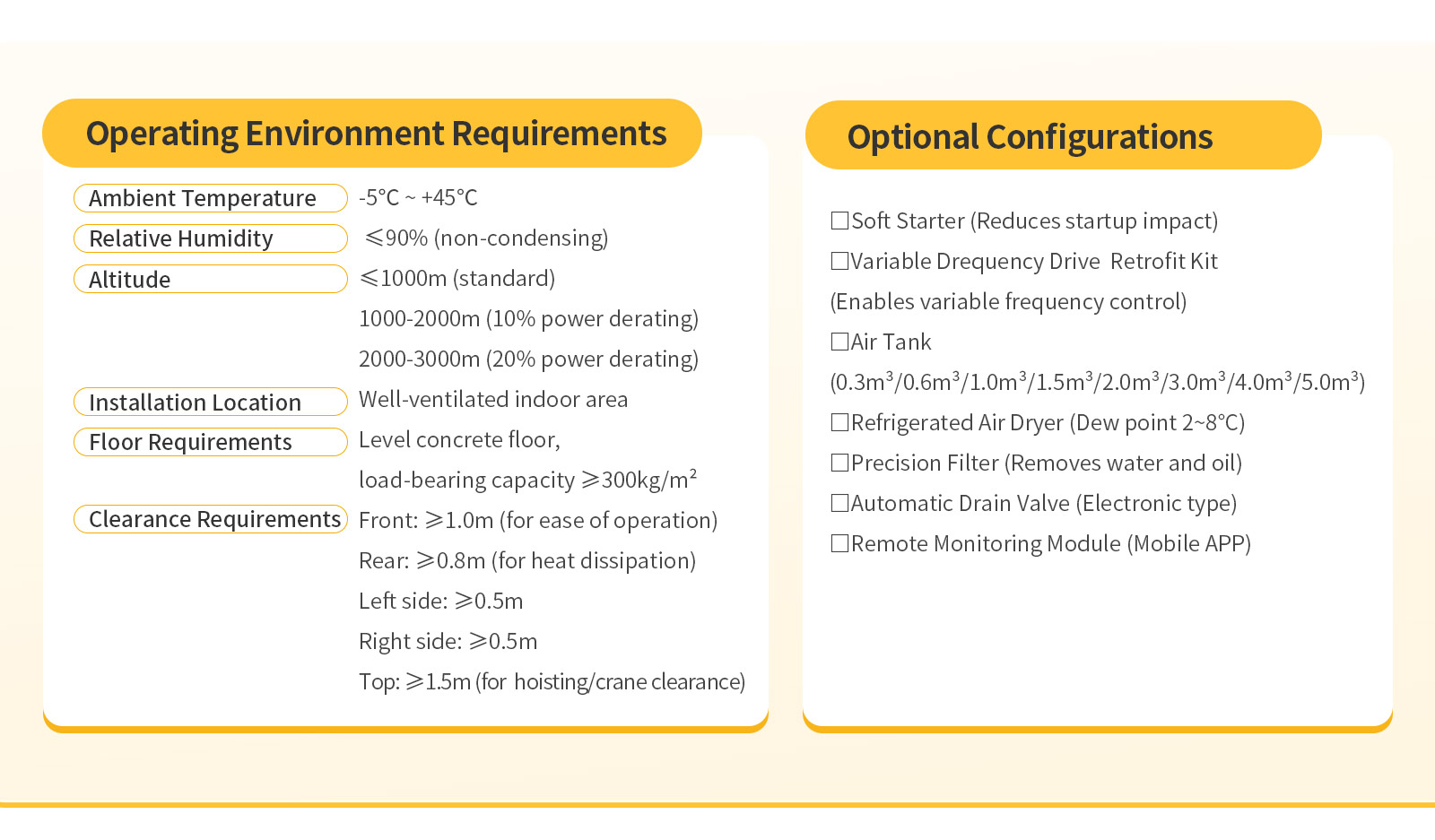

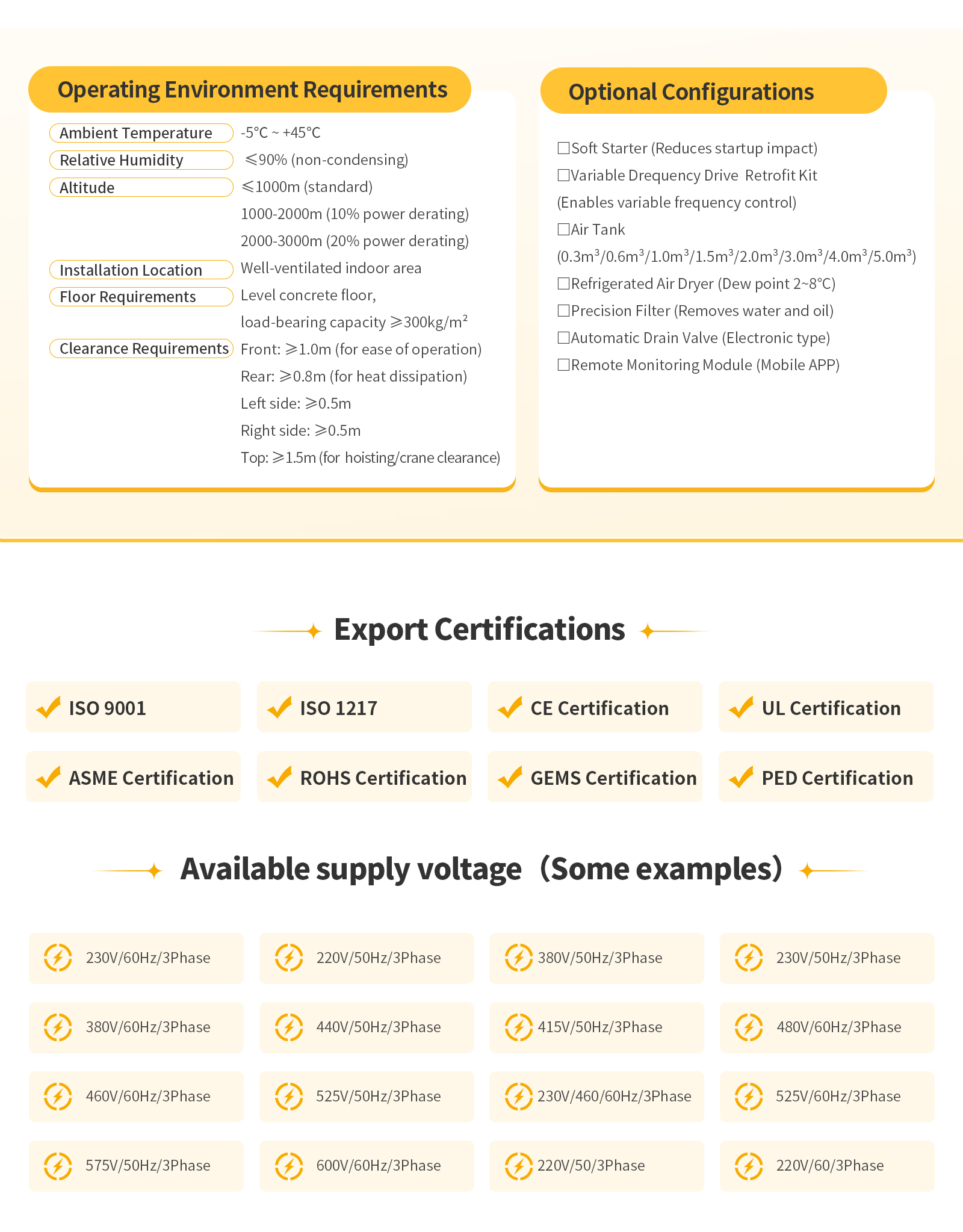

*FRIENDLY REMINDER: The standard specifications of our products are applicable to regions with an altitude below 1,000 meters. For usage environments exceeding 1,000 meters above sea level, please feel free to contact us for customized configurations to ensure optimal equipment performance and operational safety.
