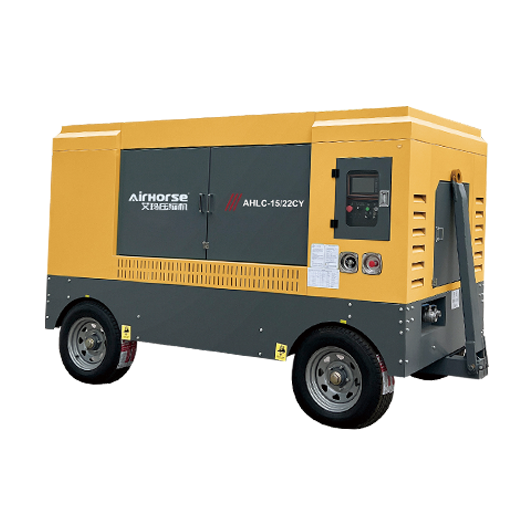

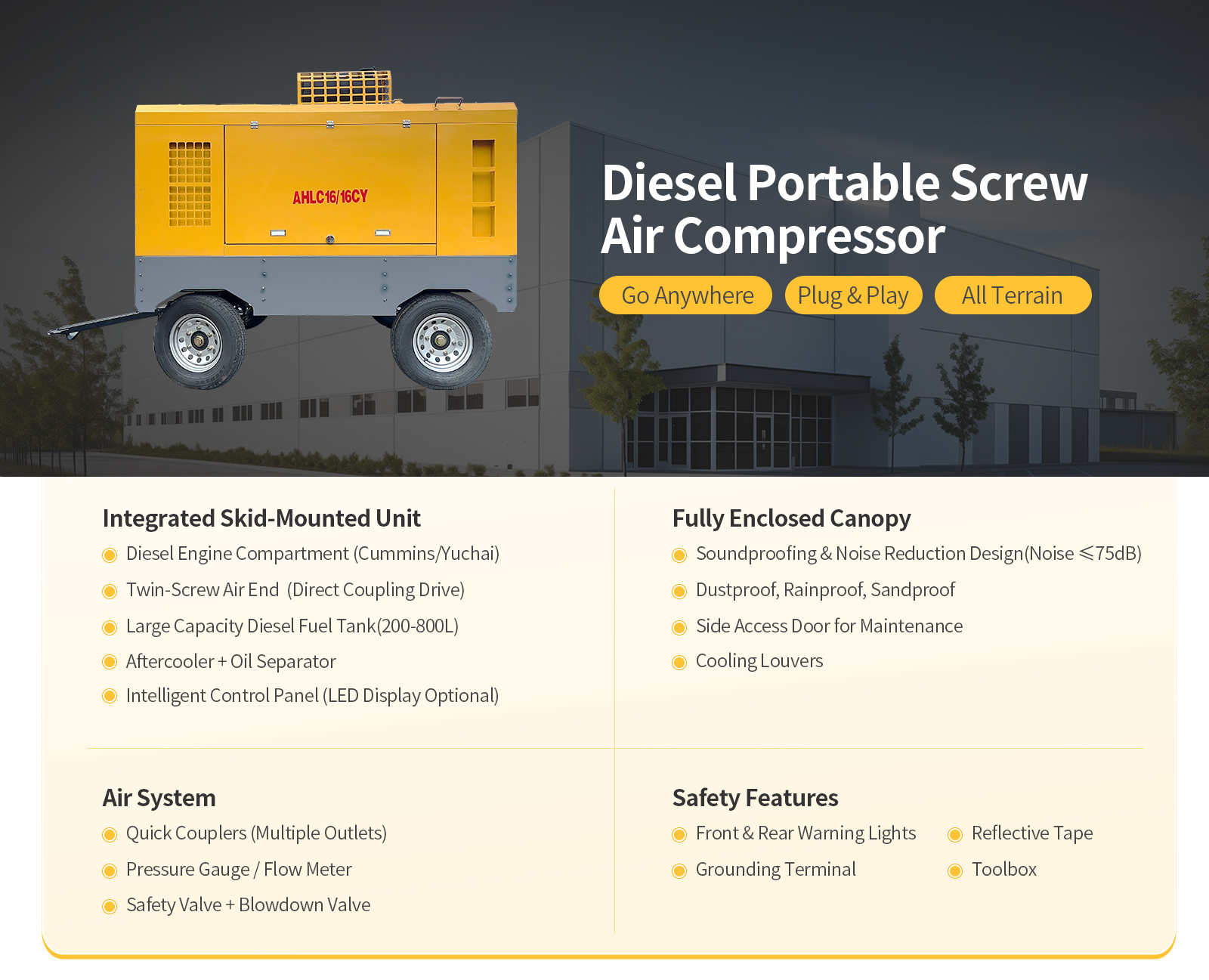

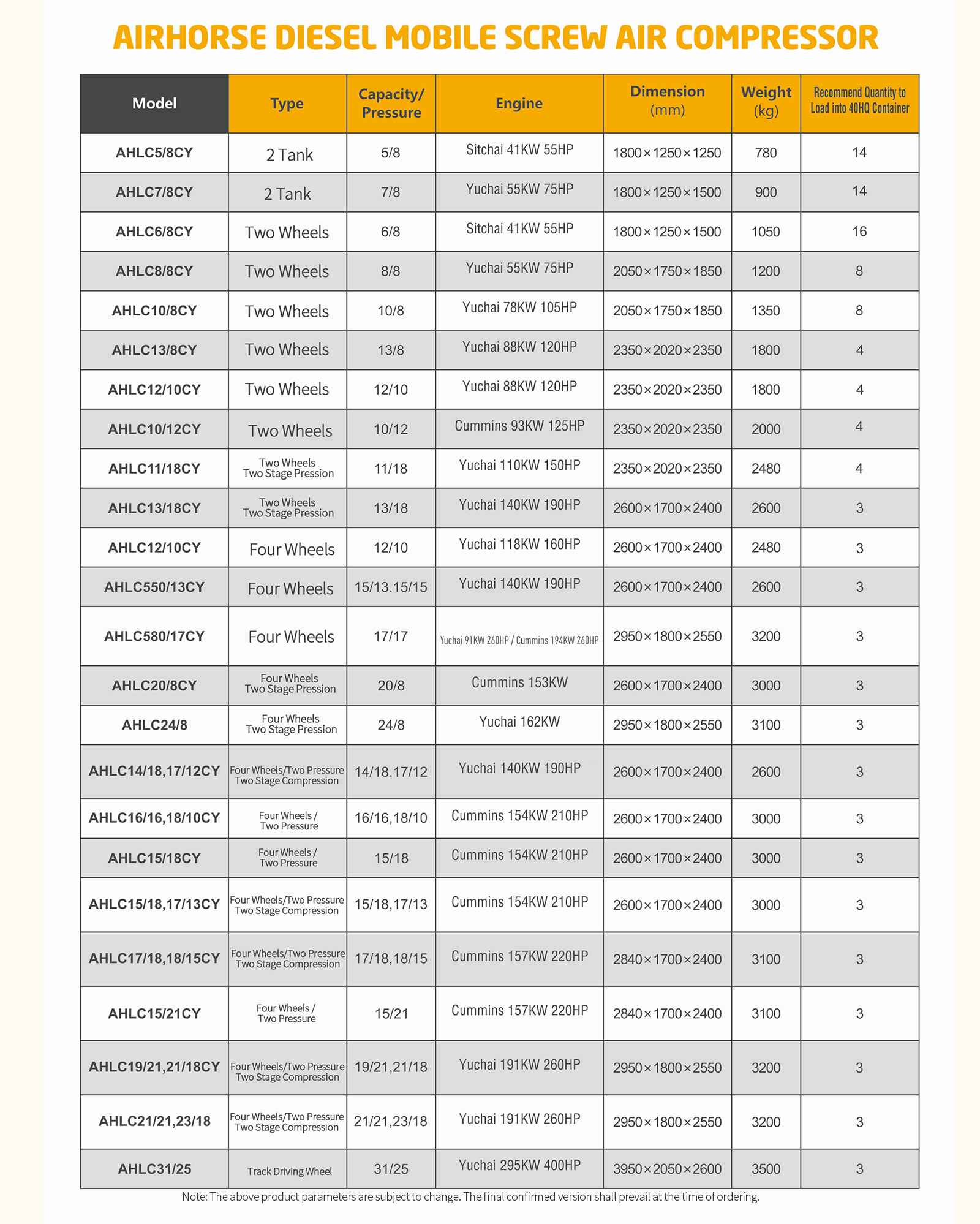

| 艾玛柴油移动螺杆空压机 | ||||||

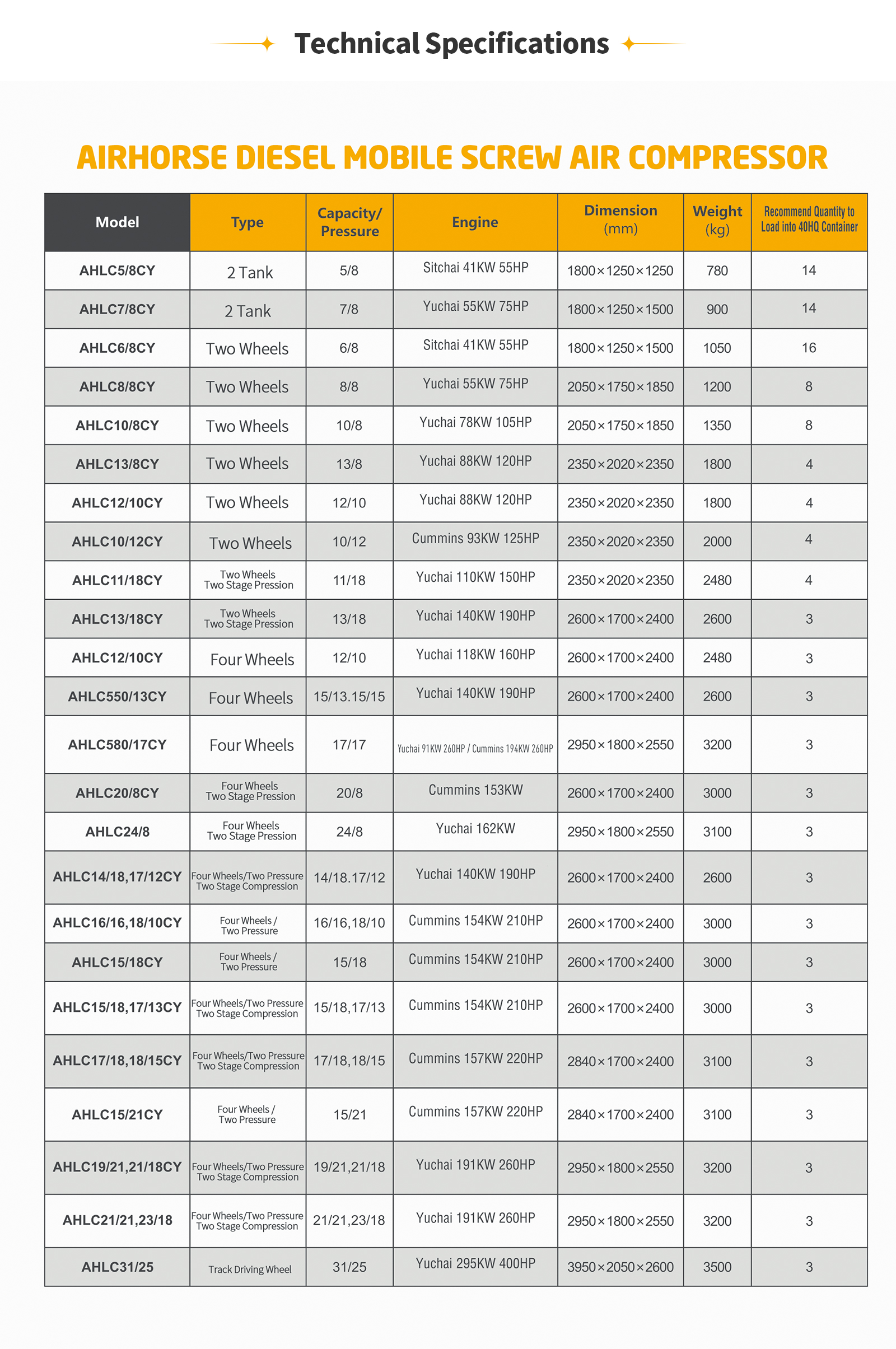

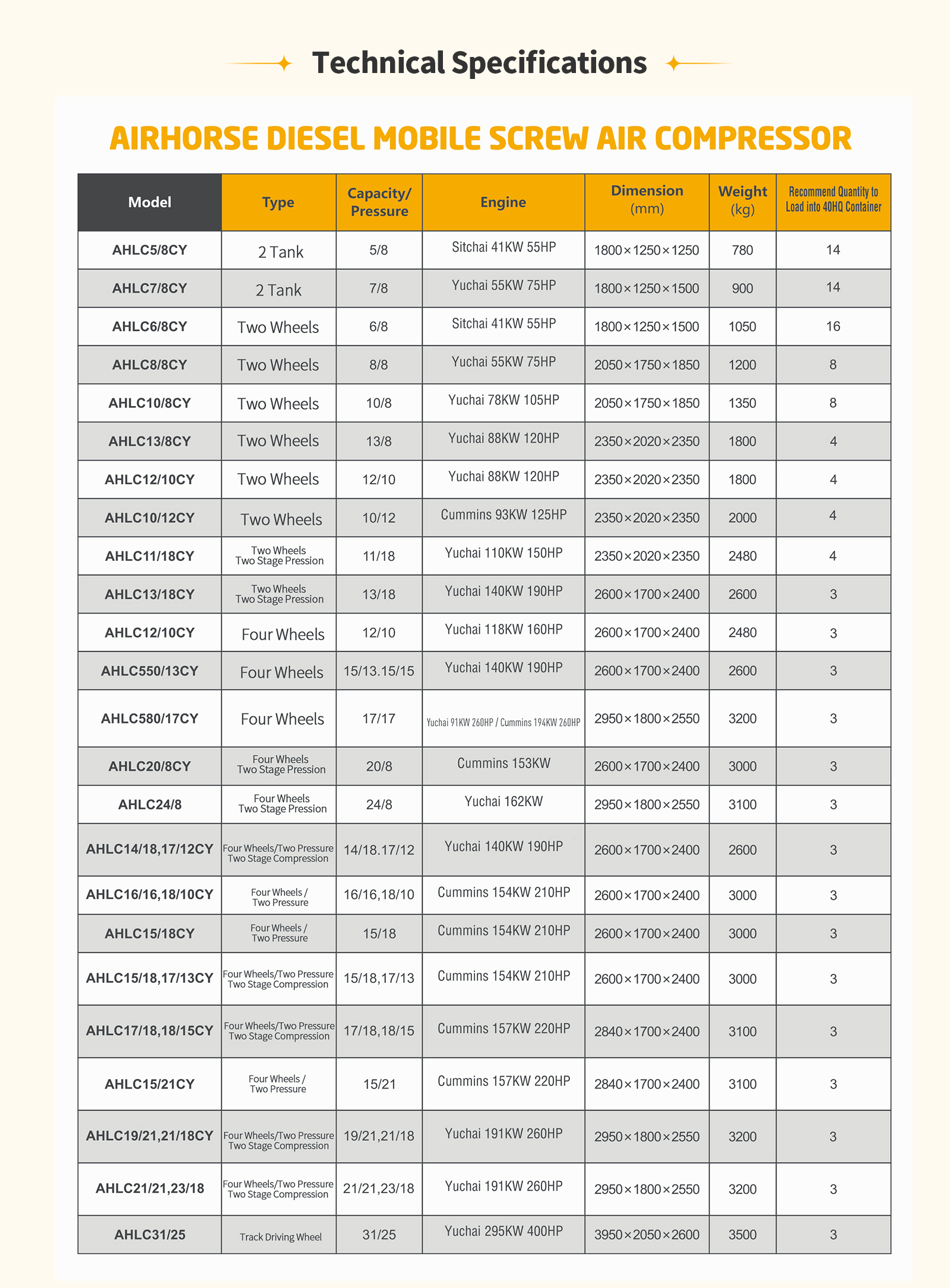

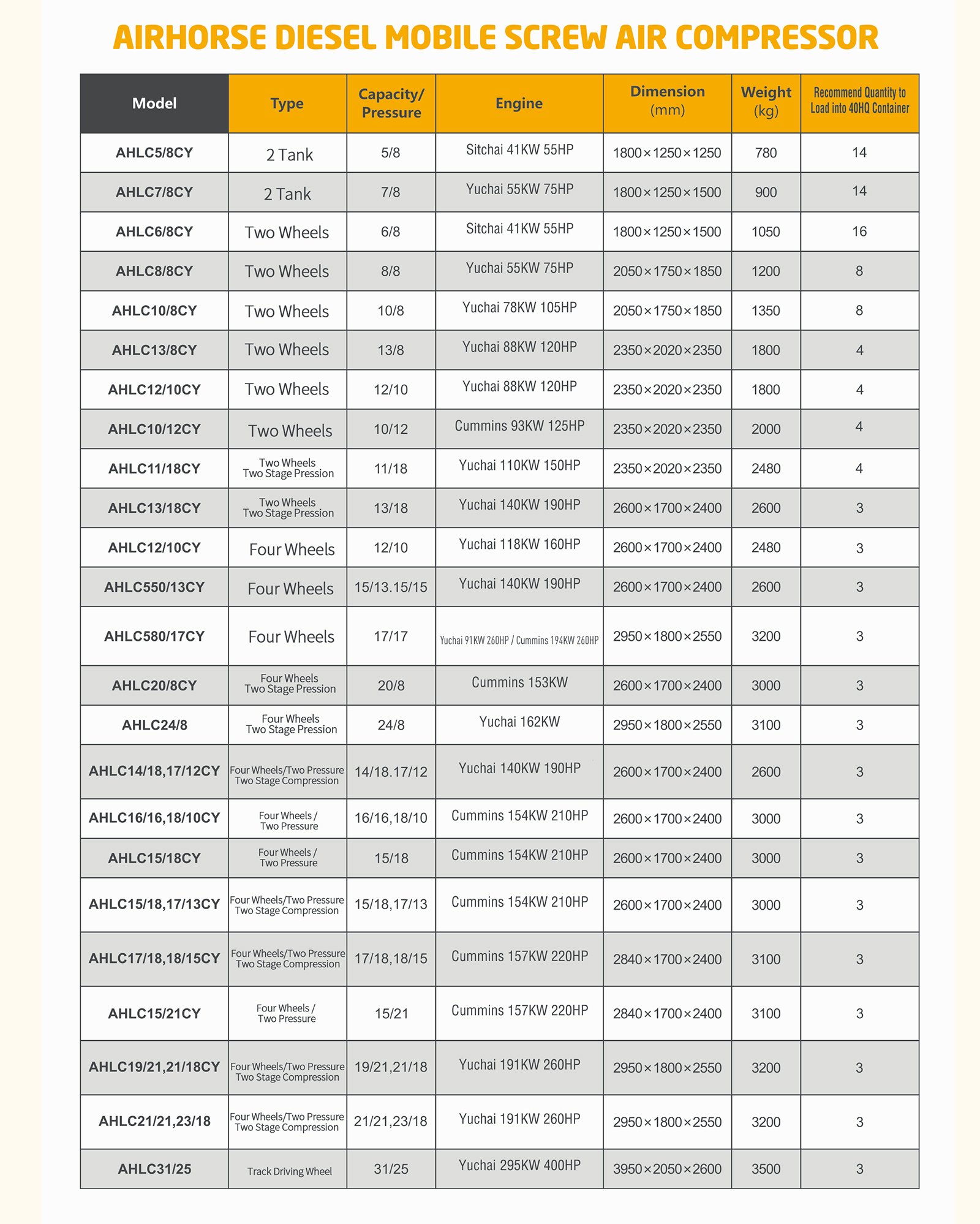

| Model | Type | Capacity/Pres | Engine | Dimension (mm) | Weight (KG) | recommend quantity to load into 40HQ container |

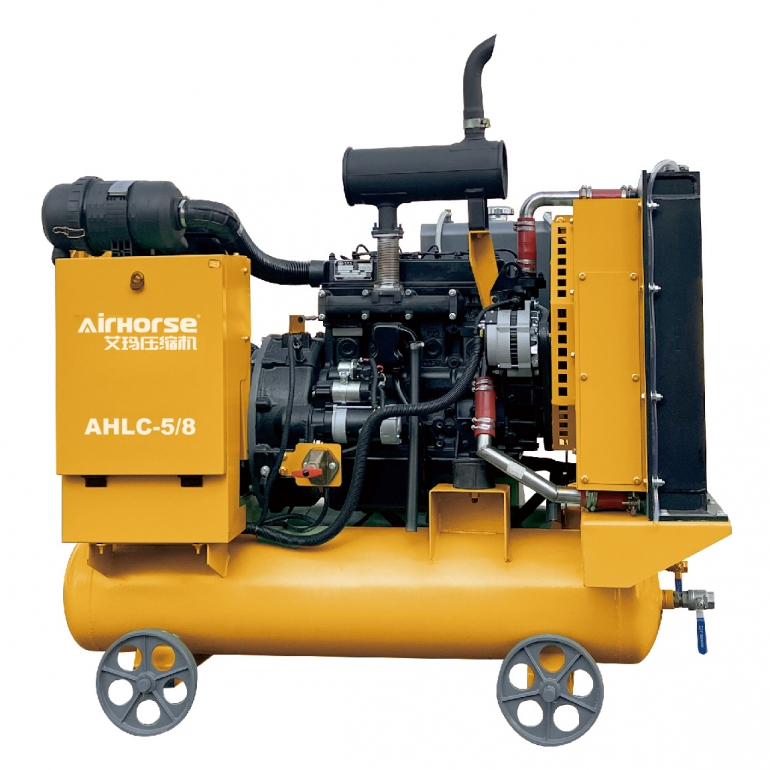

| AHLC5/8CY | 2 Tank | 5/8 | Sitchai 41KW 55HP | 1600*1100*1600 | 700 | 14 |
| AHLC7/8CY | 2 Tank | 7/8 | Yuchai 55KW 75HP | 1902*1280*1731 | 1500 | 8 |
| AHLC6/8CY | Two Wheels | 6/8 | Sitchai 41KW 55HP | 2540*1460*1550 | 1000 | 16 |

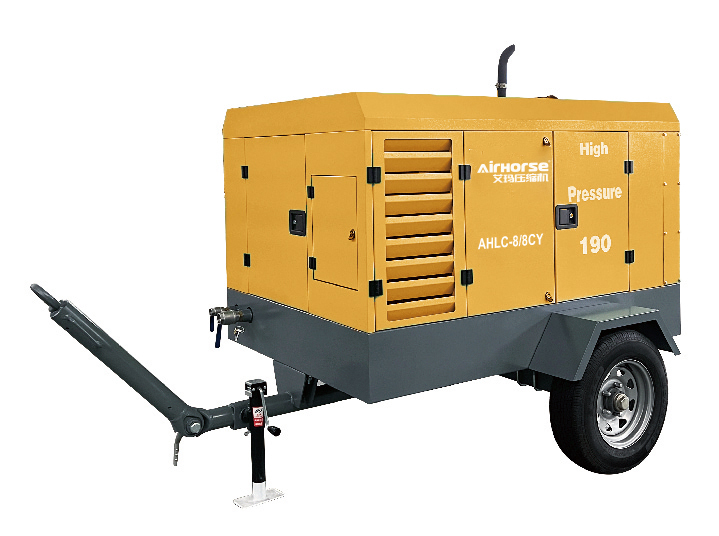

| AHLC8/8CY | Two Wheels | 8/8 | Yuchai 55KW 75HP | 3116*1806*1887 | 1650 | 8 |
| AHLC10/8CY | Two Wheels | 10/8 | Yuchai 78KW 105HP | 3116*1806*1887 | 1750 | 8 |
| AHLC13/8CY | Two Wheels | 13/8 | Yuchai 88KW 120HP | 3116*1806*1887 | 1750 | 8 |
| AHLC12/10CY | Two Wheels | 12/10 | Yuchai 88KW 120HP | 3116*1806*1887 | 1750 | 8 |
| AHLC10/12CY | Two Wheels | 10/12 | Commins 93KW 125HP | 3116*1806*1887 | 1750 | 8 |
| AHLC11/18CY | Two Wheels Two stage pression |
11/18 | Yuchai 110KW 150HP | 3780*2176*2433 | 2700 | 4 |
| AHLC13/18CY | Two Wheels Two stage pression |
13/18 | Yuchai 140KW 190HP | 3780*2176*2433 | 2700 | 4 |
| AHLC12/10CY | Four Wheels | 12/10 | Yuchai 118KW 160HP | 3116*1806*1887 | 1750 | 8 |
| AHLC550/13CY | Four Wheels | 15/13，15/15 | Yuchai 140KW 190HP | 3282*1605*2252 | 2500 | 4 |
| AHLC580/17CY | Four Wheels | 17/17 | Yuchai 91KW 260HP / Commins 194KW 260HP |
3282*1605*2252 | 2500 | 4 |
| AHLC20/8CY | Four Wheels Two stage compression |
20/8 | Commins 153KW | 3282*1605*2252 | 2500 | 4 |
| AHLC24/8 | Four Wheels Two stage compression |
24/8 | Yuchai 162KW | 3282*1605*2252 | 2500 | 4 |
| AHLC14/18,17/12CY | Four Wheels/ Two pressure Two stage compression |
14/18，17/12 | Yuchai140KW 190HP | 3282*1605*2252 | 2500 | 4 |
| AHLC16/16,18/10CY | Four Wheels/ Two pressure |
16/16，18/10 | Commins 154KW 210HP | 3282*1605*2252 | 2500 | 4 |
| AHLC15/18CY | Four Wheels/ Two pressure |
15/18 | Commins 154KW 210HP | 3282*1605*2252 | 2500 | 4 |
| AHLC15/18,17/13CY | Four Wheels/ Two pressure Two stage compression |
15/18， 17/13 | Commins 154KW 210HP | 3282*1605*2252 | 2500 | 4 |
| AHLC17/18,18/15CY | Four Wheels/ Two pressure Two stage compression |
17/18， 18/15 | Commins 157KW 220HP | 3282*1605*2252 | 2500 | 4 |
| AHLC15/21CY | Four Wheels/ Two pressure |
15/21 | Commins 157KW 220HP | 3282*1605*2252 | 2700 | 4 |
| AHLC19/21,21/18CY | Four Wheels/ Two pressure Two stage compression |
19/21，21/18 | Yuchai 191KW 260HP | 3173*1800*2285 | 3700 | 3 |
| AHLC21/21，23/18 | Four Wheels/ Two pressure Two stage compression |
21/21，23/18 | Yuchai 191KW 260HP | 3173*1800*2285 | 3700 | 3 |
| AHLC31/25 | Track Driving Wheel | 31/25 | Yuchai 295KW 400HP | 3500*1980*2260 | 4500 | 3 |
*FRIENDLY REMINDER: This parameter list is for reference only. We may adjust the related parameter. if there is any change, we will not inform you otherwise.If you do not know, please call us.

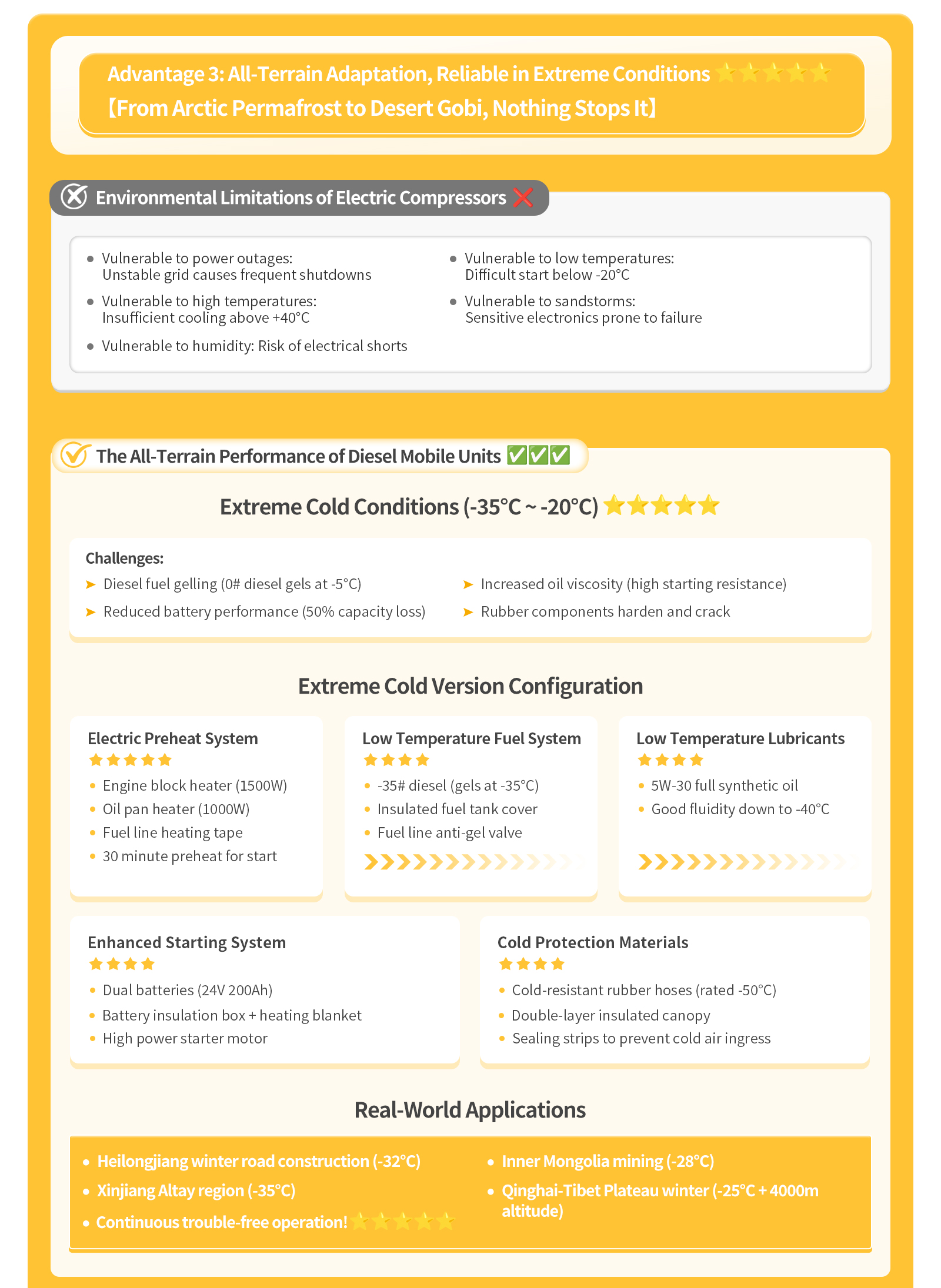

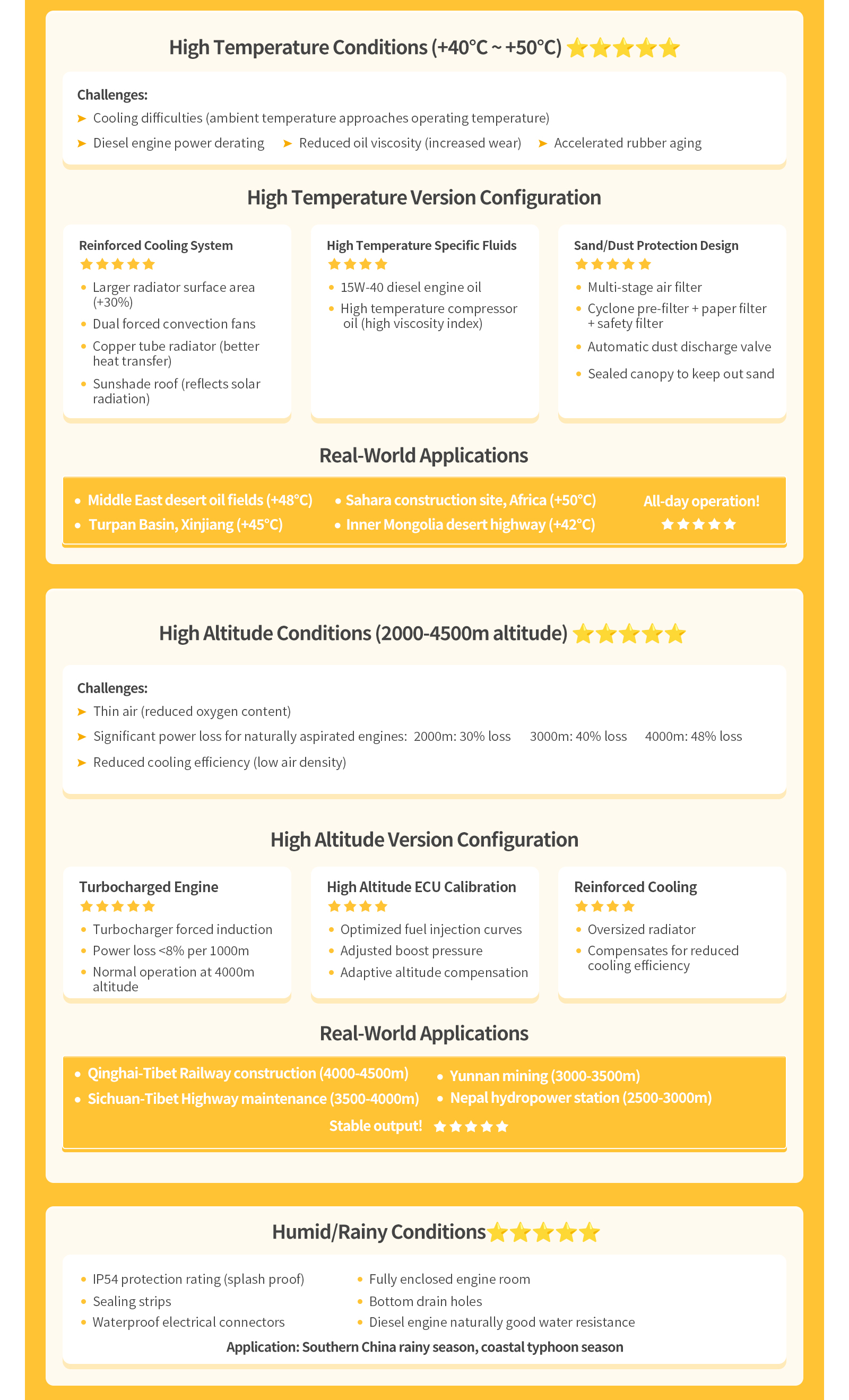

*FRIENDLY REMINDER: The standard specifications of our products are applicable to regions with an altitude below 1,000 meters. For usage environments exceeding 1,000 meters above sea level, please feel free to contact us for customized configurations to ensure optimal equipment performance and operational safety.
