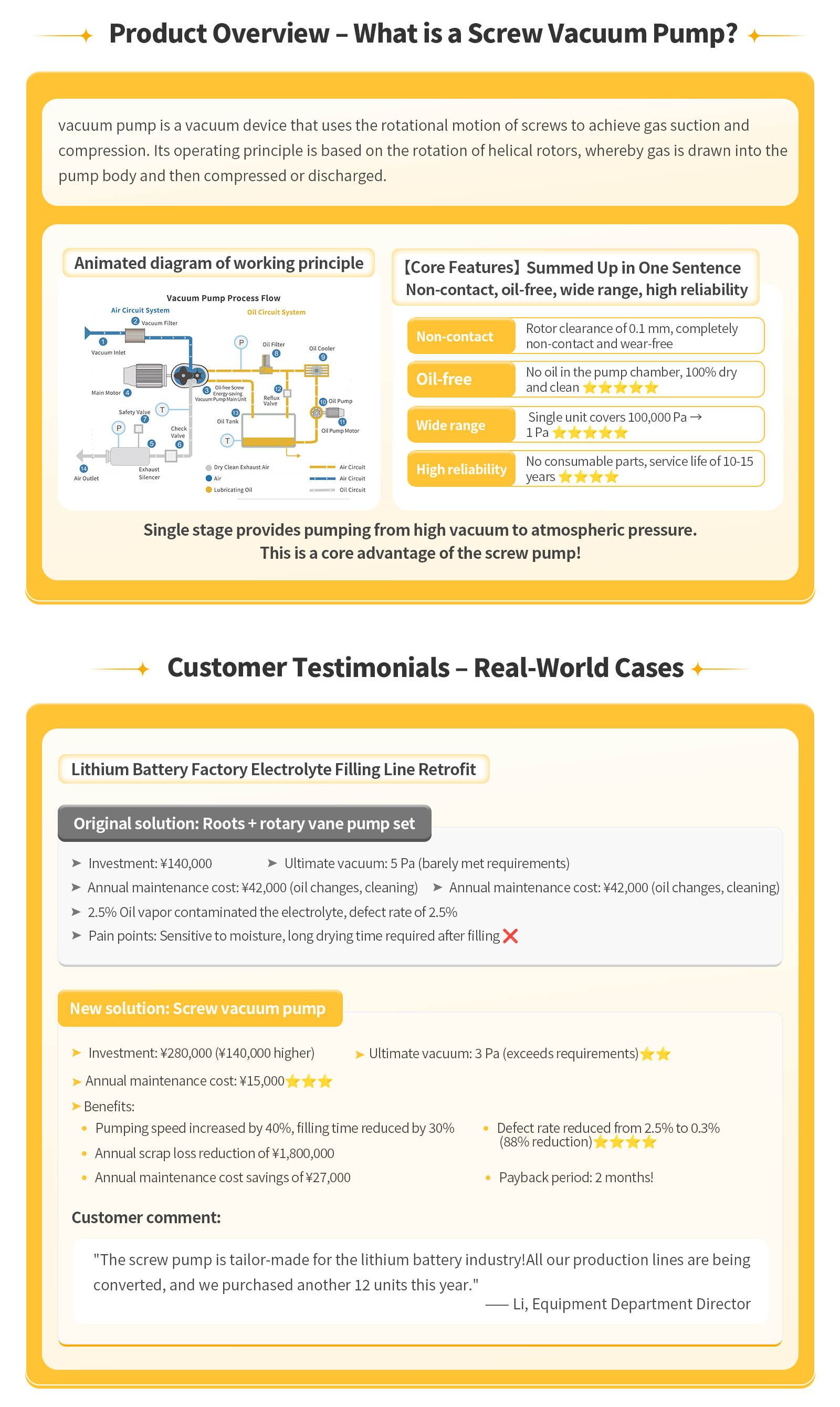

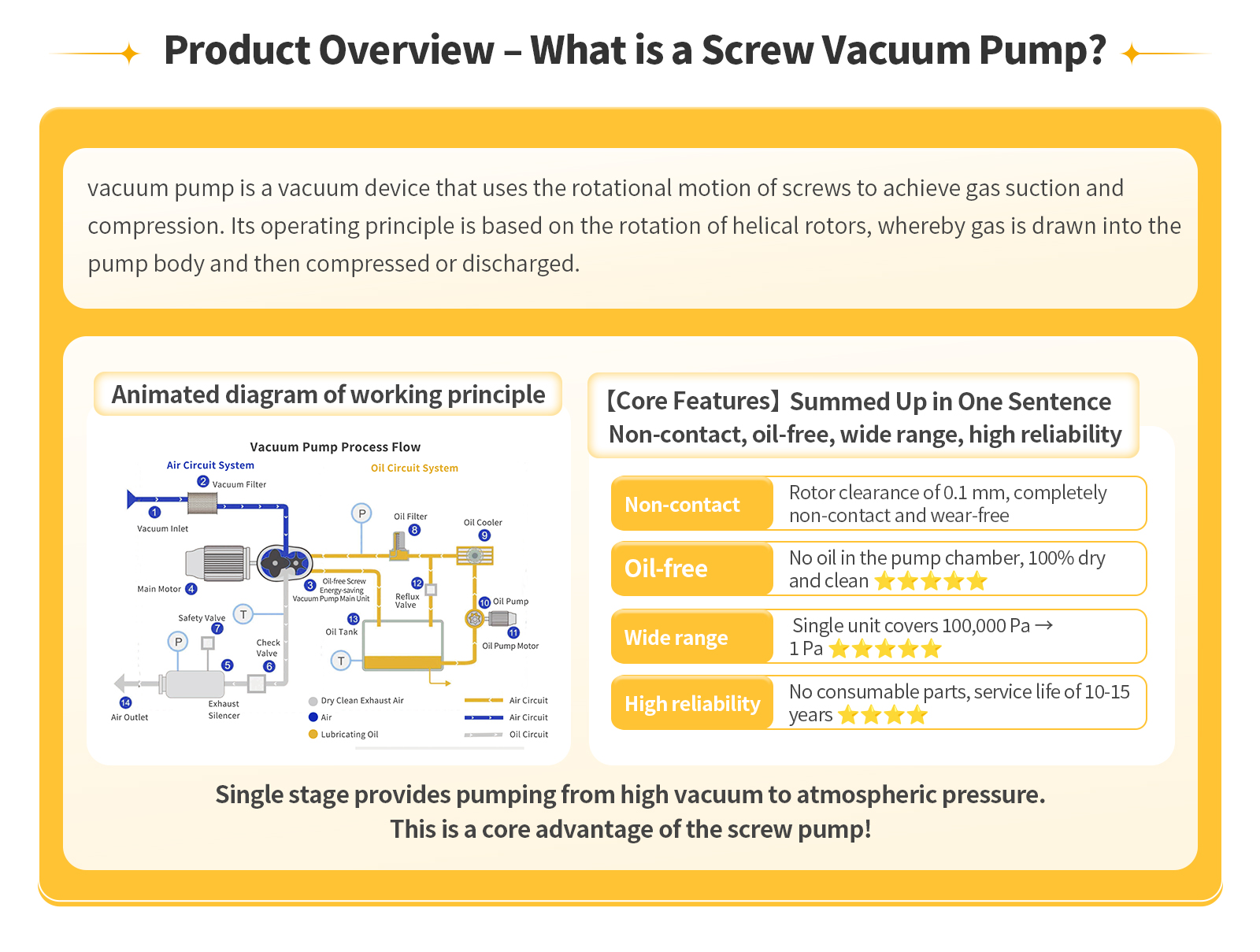

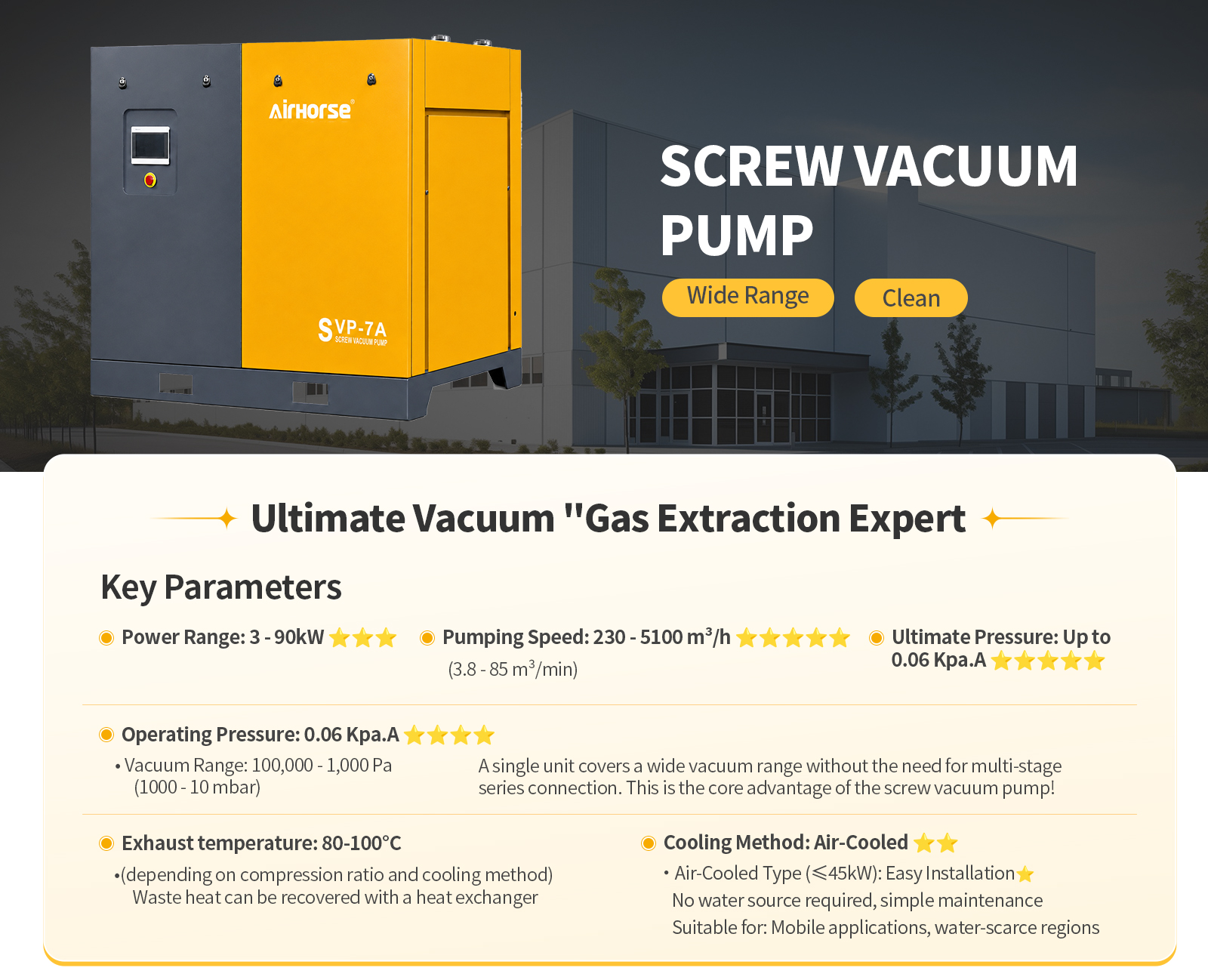

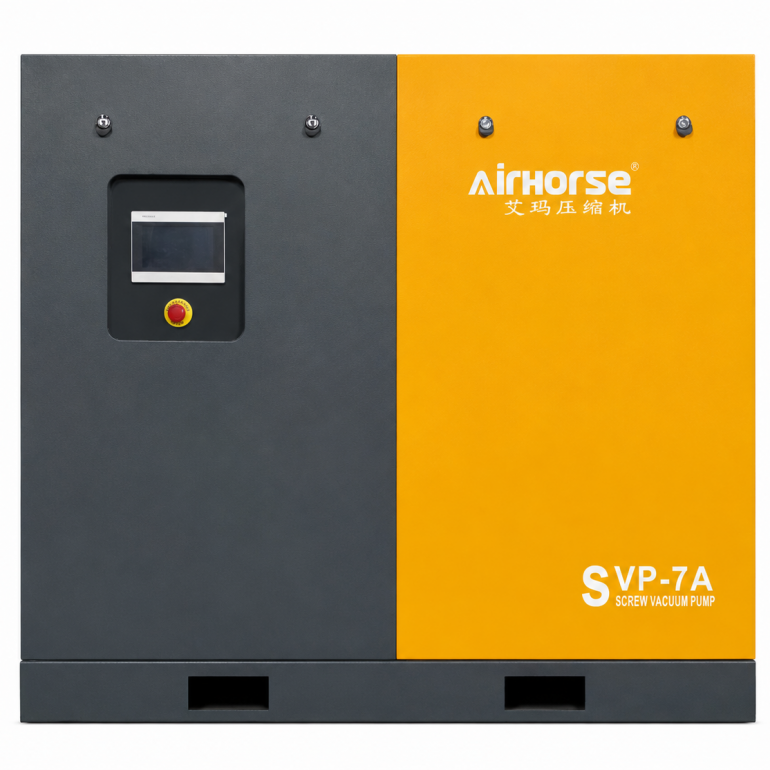

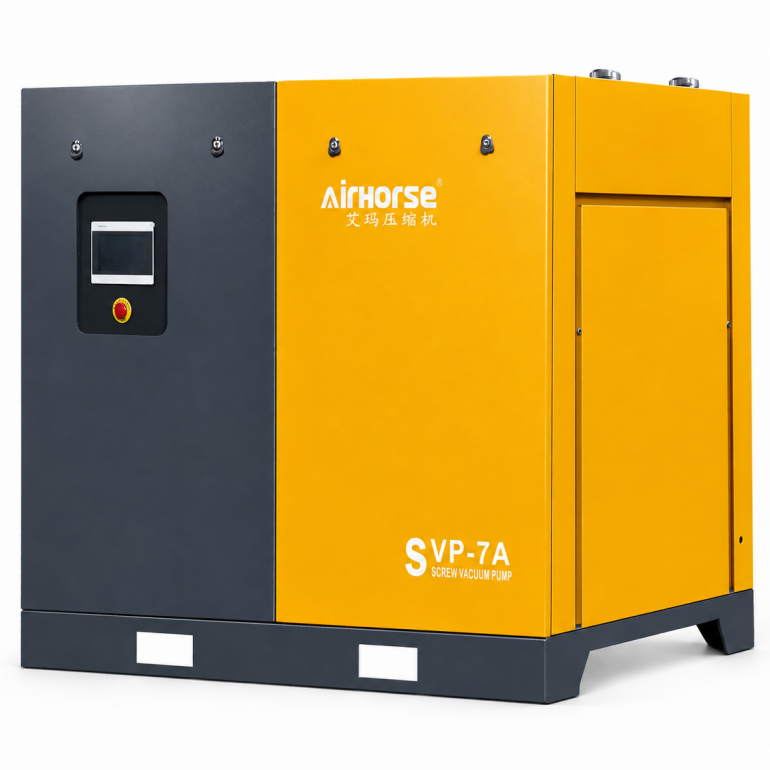

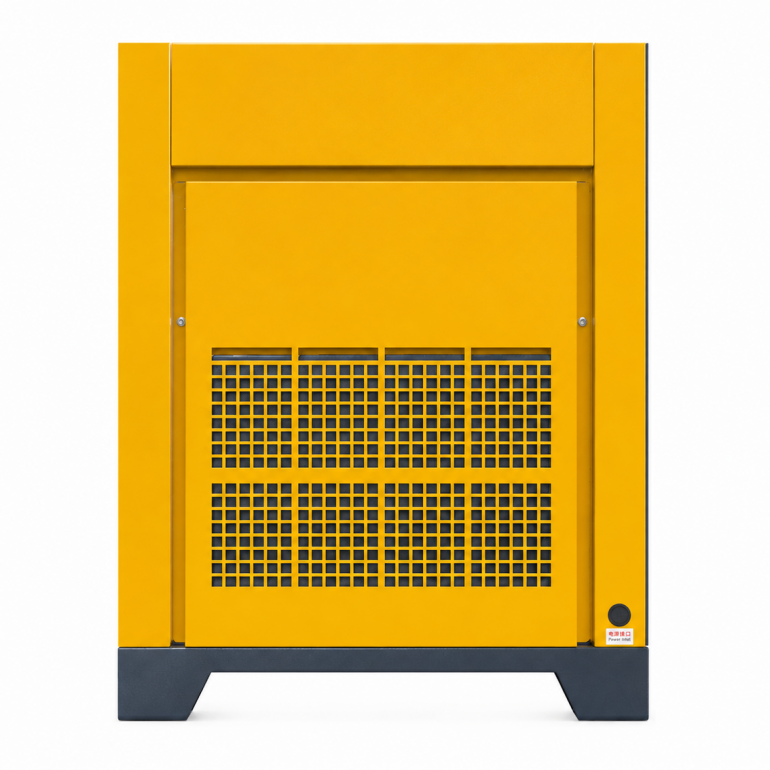

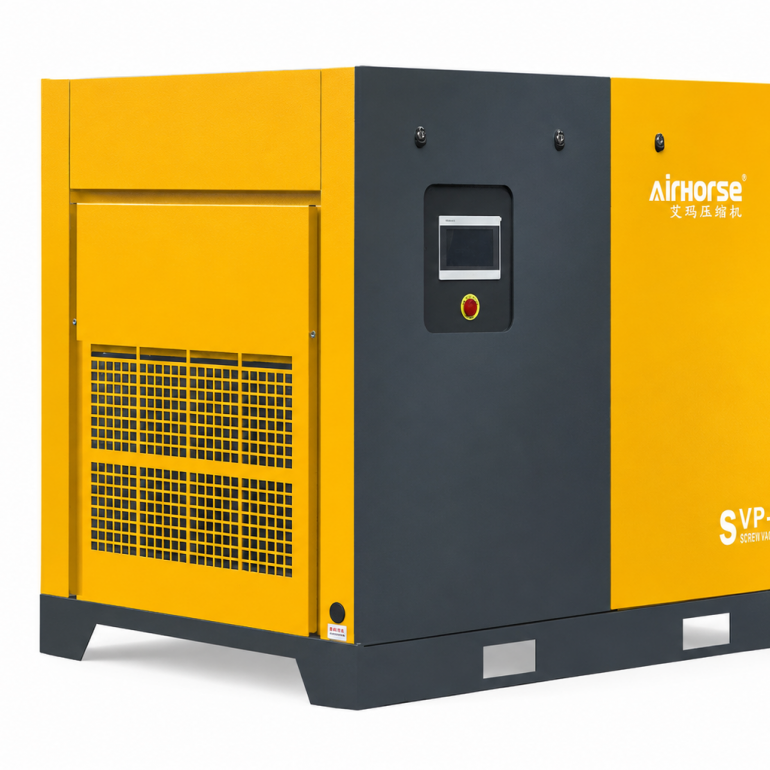

A screw vacuum pump is a dry, positive-displacement vacuum pump that uses a pair of counter-rotating, non-contacting screw rotors which continuously mesh, seal, convey, and discharge gas inside the pump chamber. By continuously removing gas from an enclosed space, it reduces the pressure below atmospheric—down to near-zero levels. Owing to its dry operation, wide operating pressure range, high efficiency, and low maintenance requirements, the screw vacuum pump has become the preferred alternative to traditional oil-sealed and water-ring technologies in pharmaceutical and chemical processing, food freeze-drying, lithium-battery and other new-energy manufacturing, semiconductor and photovoltaic production, and environmental-protection applications.

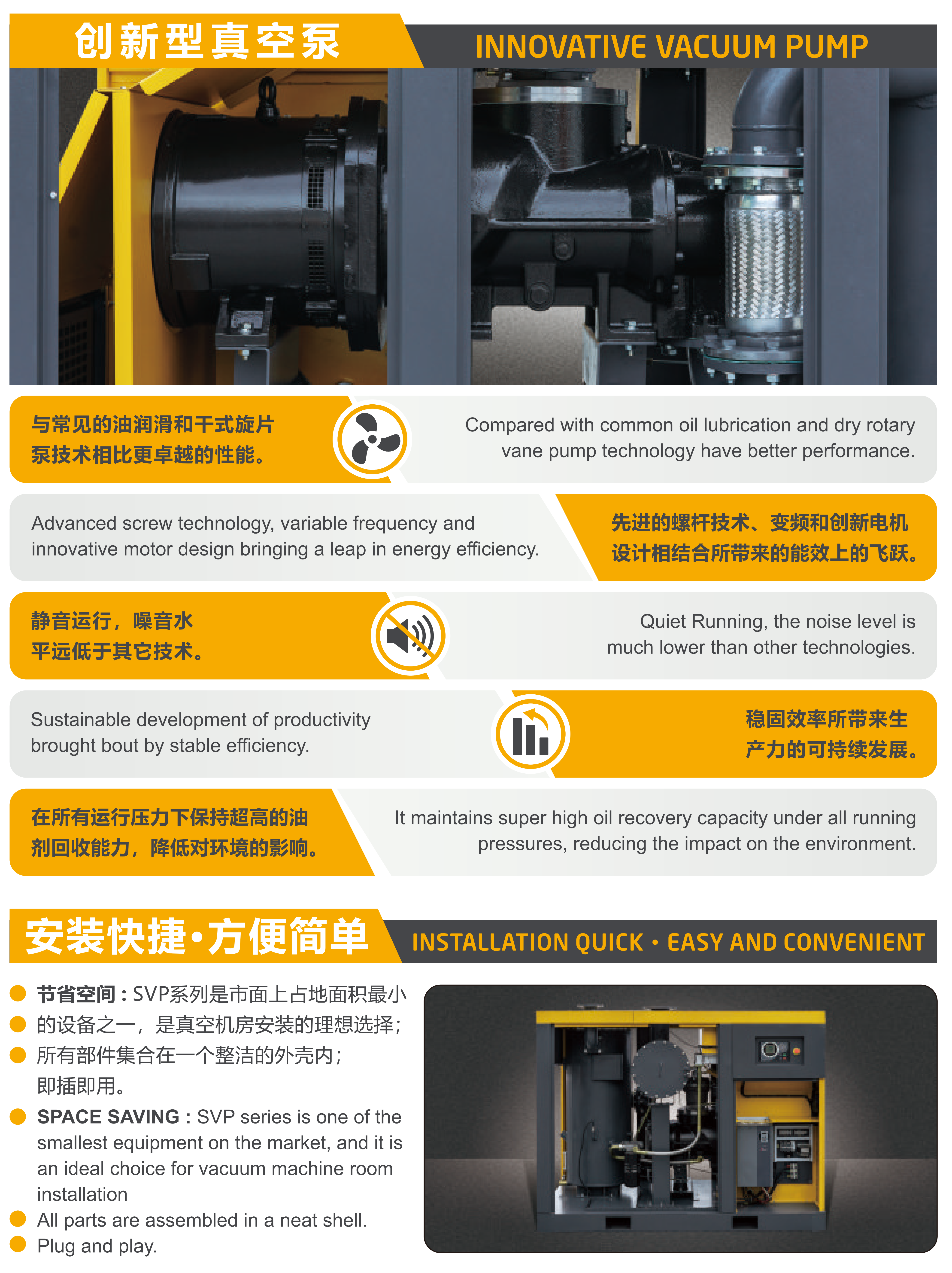

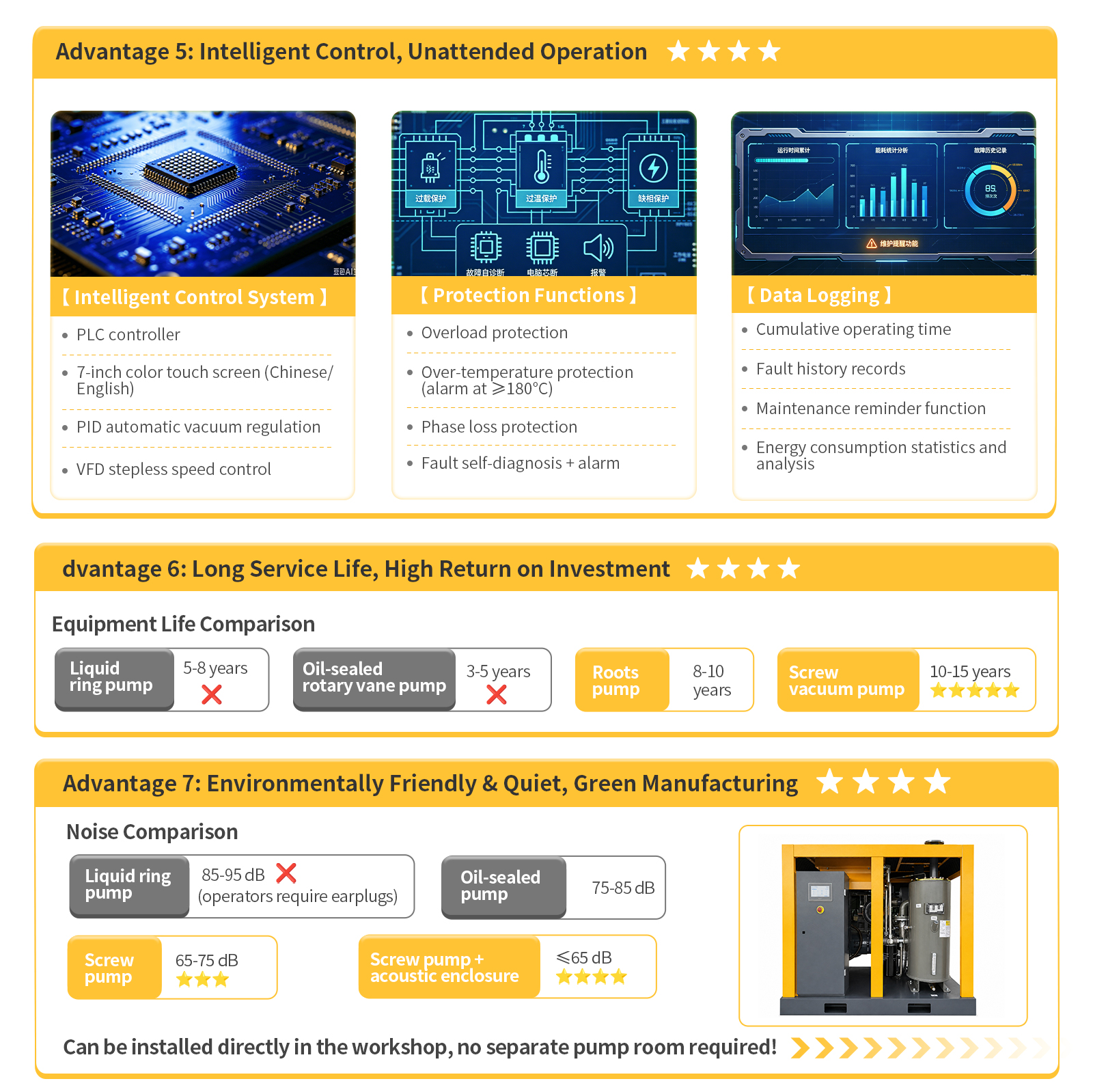

Quiet Running, the noise level is much lower than other technologies.

Sustainable development of productivity brought bout by stable efficiency.

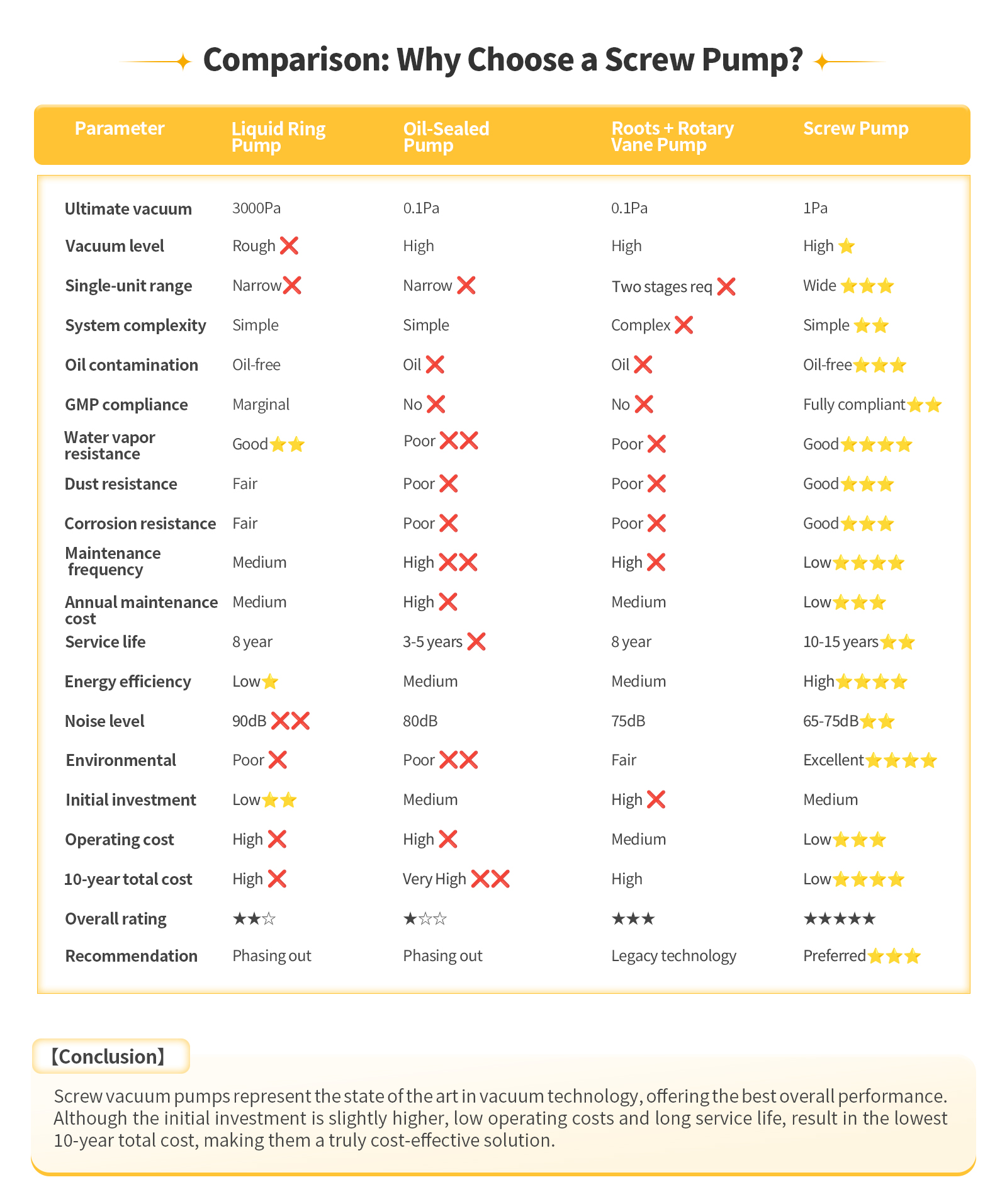

Compared with common oil lubrication and dry rotary vane pump technology have better performance.

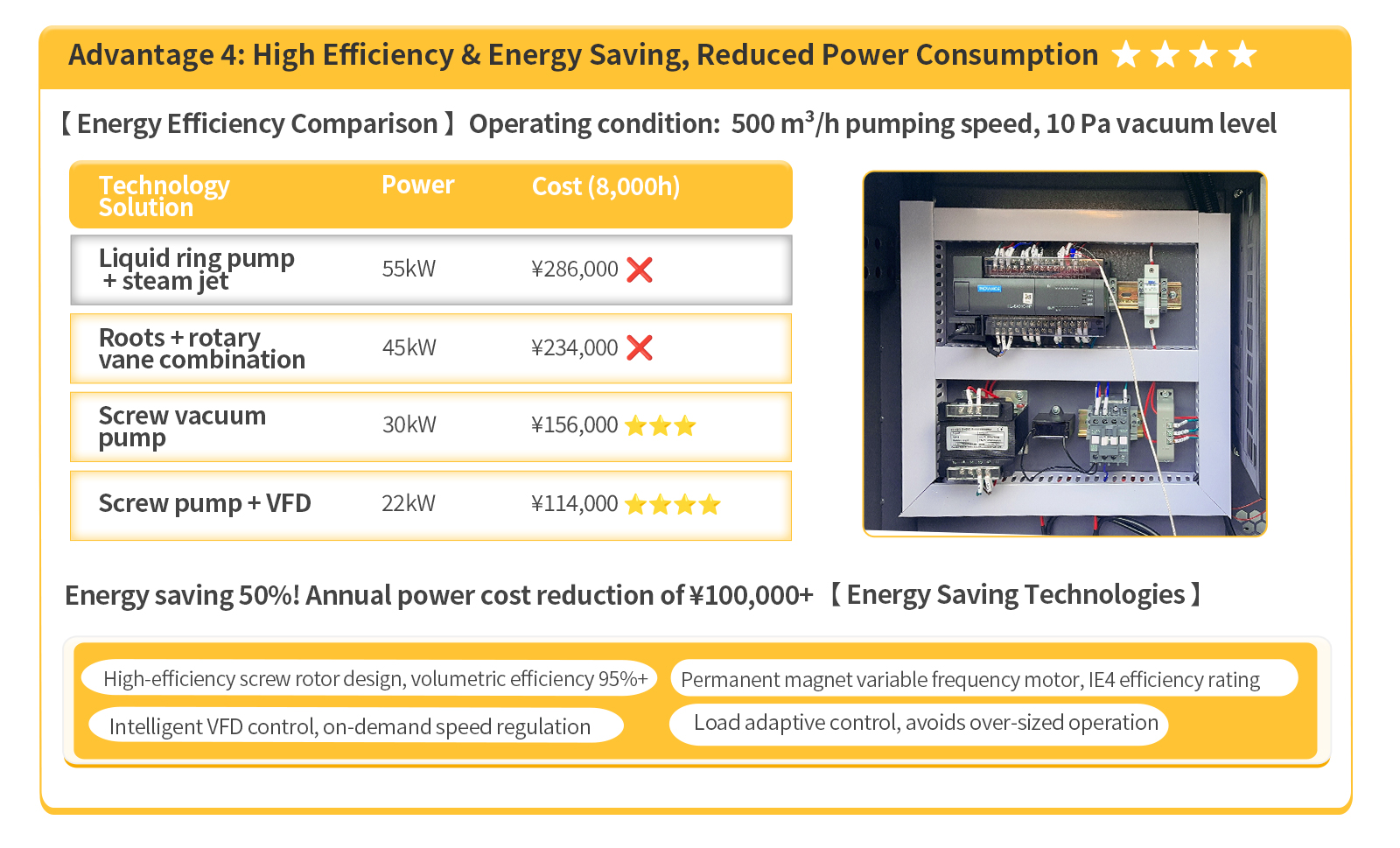

Advanced screw technology, variable frequency and innovative motor design bringing a leap in energy efficiency.

It maintains super high oil recovery capacity under all running pressures, reducing the impact on the environment.

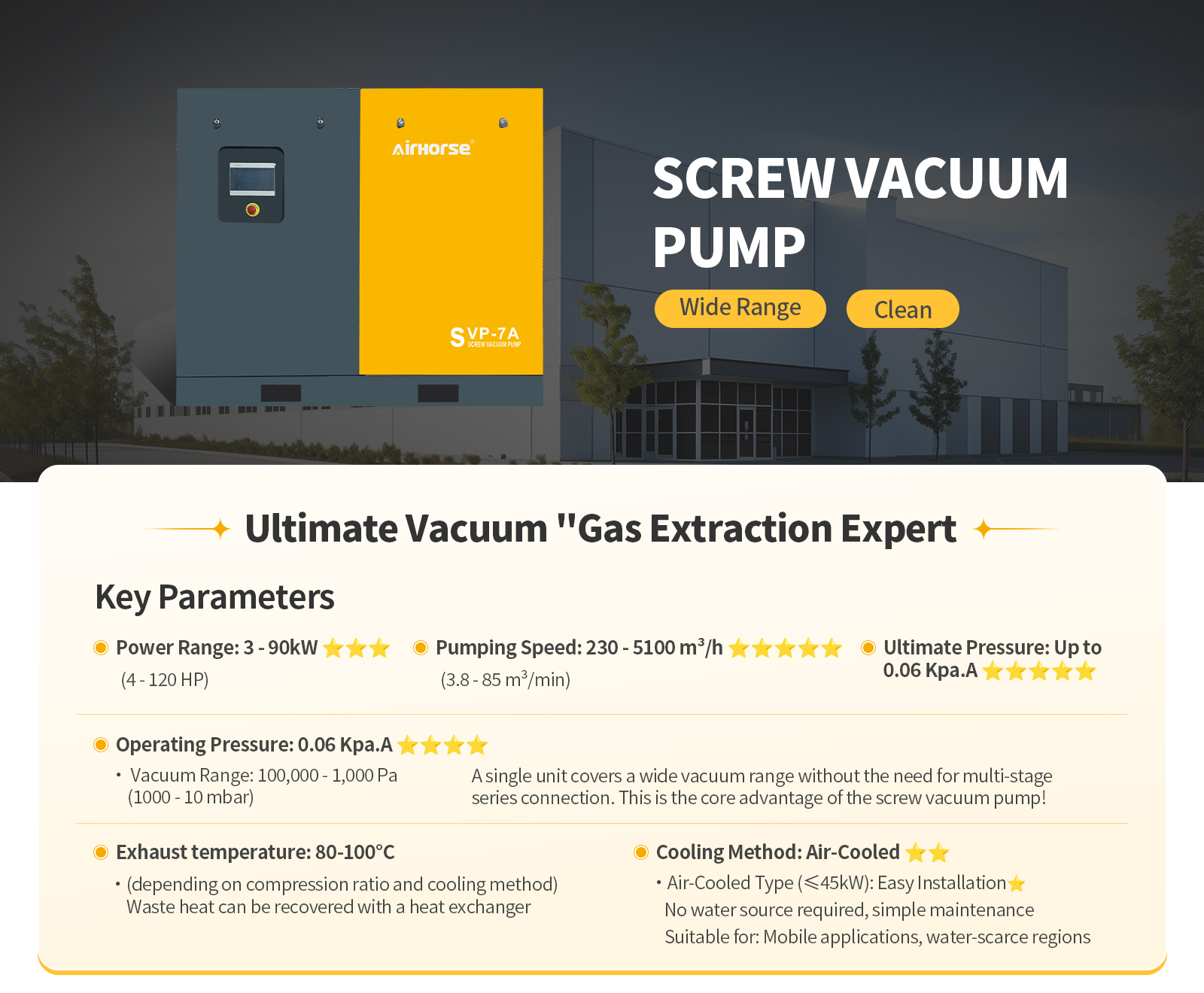

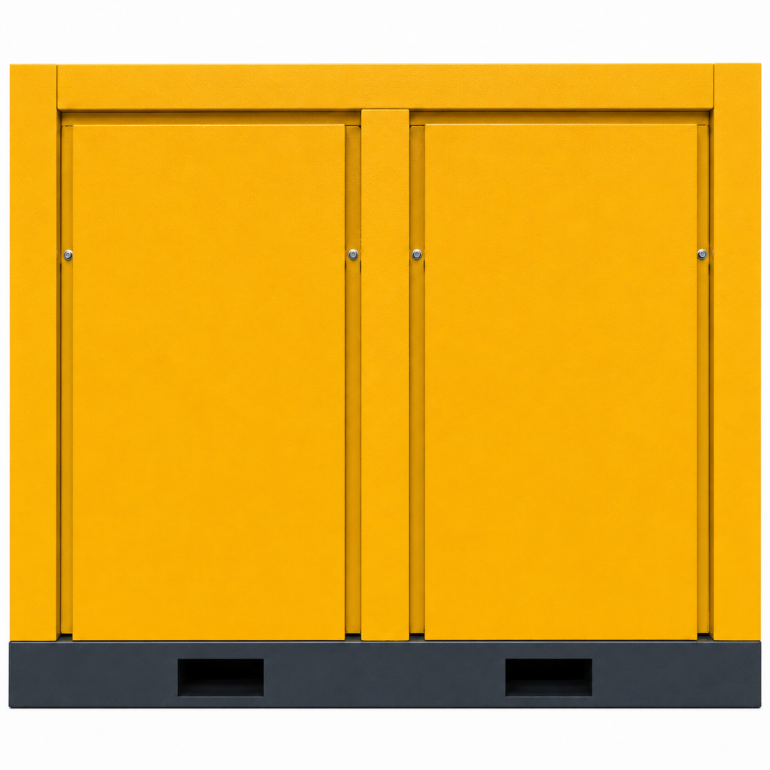

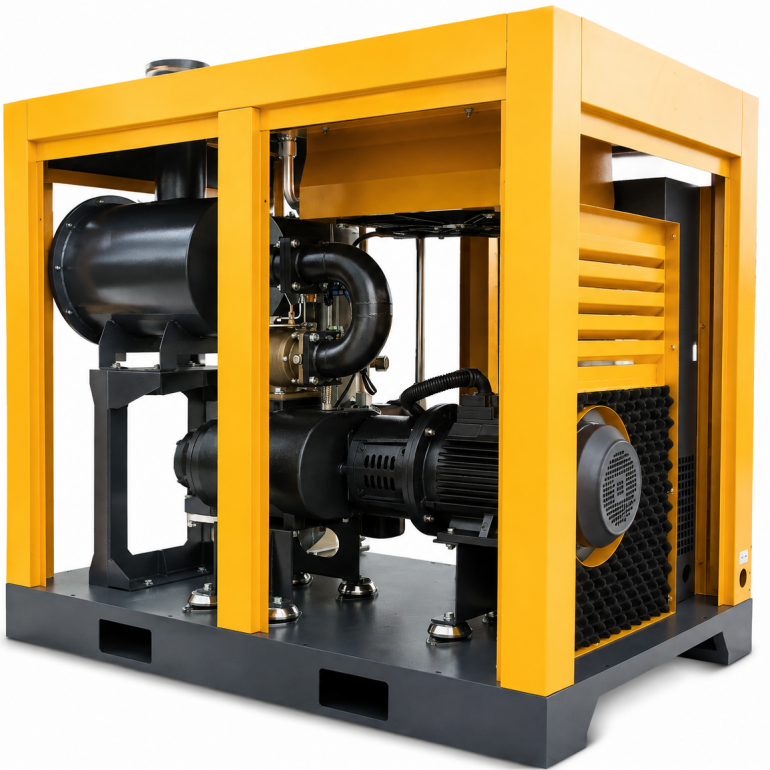

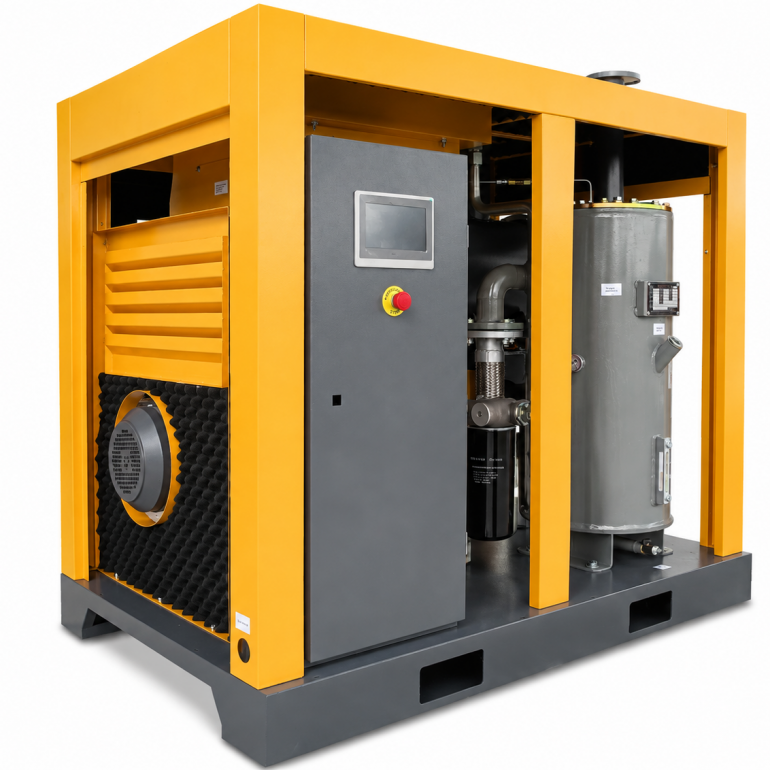

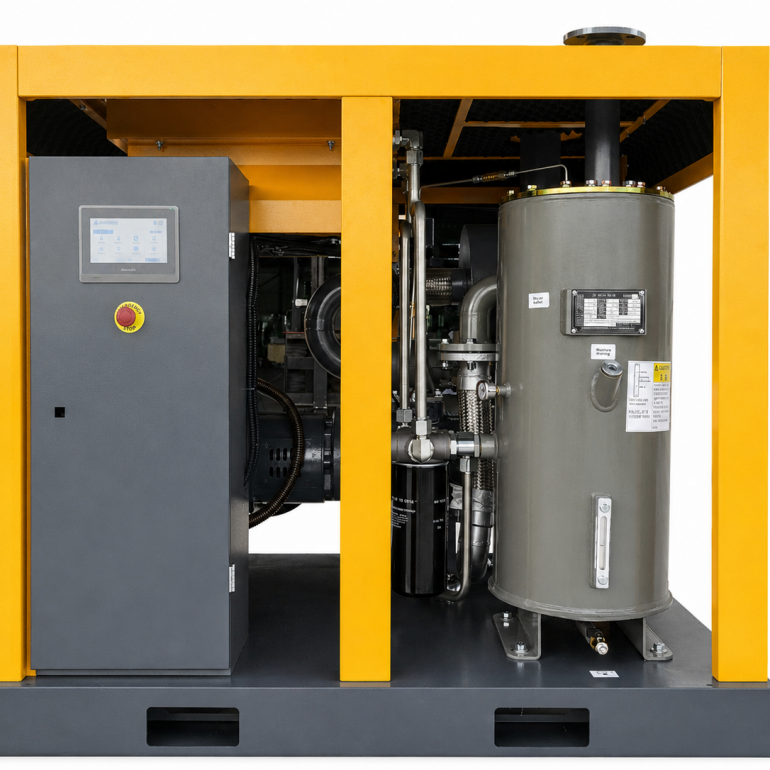

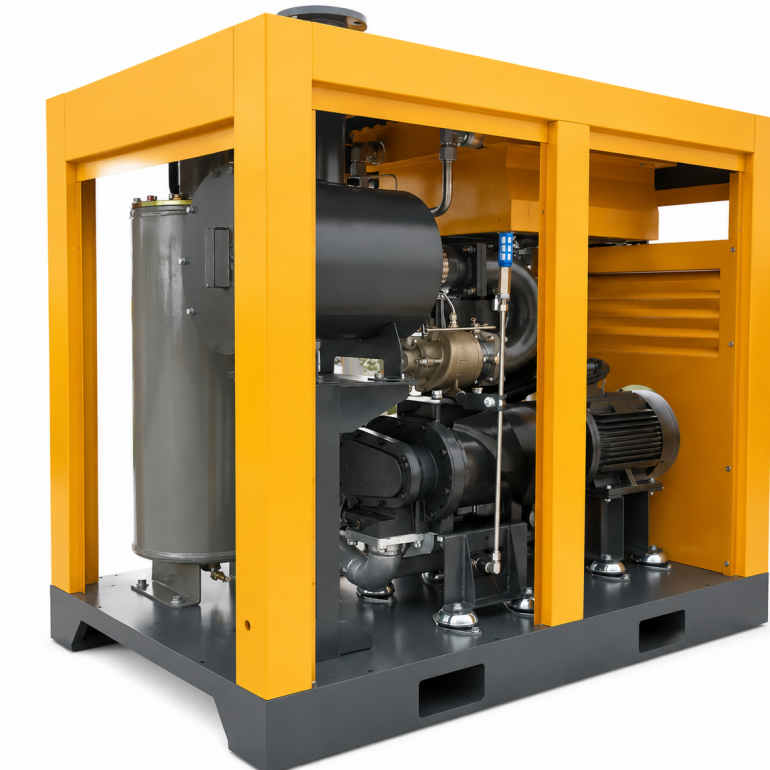

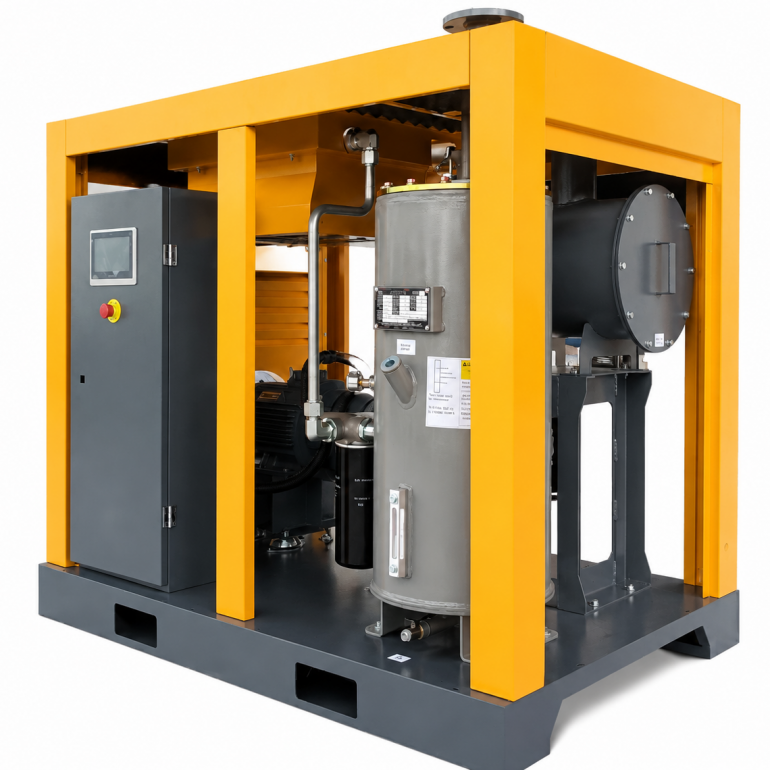

SPACE SAVING : SVP series is one of the smallest equipment on the market, and it is an ideal choice for vacuum machine room installation All parts are assembled in a neat shell. Plug and play.

Next Product

Inquire Now

Product Details

Technical Parmeters

Catalogue Download

SVP SERIES VACUUM PUMP TECHNICAL PARAMETERS LIST
Model	Motor Power	Air Flow (Pumping Speed)	Ultimate Vacuum	Import Pipe Diameter	Outlet Pipe Diameter	Size	Weight
Model	（KW）	（m³/h）	（pa）	（DN）	（DN）	（mm）	（KG）
SVP7-10	7.5	588	60	80	65	15008801460	805
SVP11-12	11	768	60	100	65	18509201493	1040
SVP15-15	15	912	60	100	65	18509201493	1040
SVP18-18	18.5	1092	60	150	100	200010001670	1280
SVP22-22	22	1320	60	150	100	200010001670	1280
SVP30-27	30	1620	60	150	100	230011201827	1910
SVP37-30	37	1850	60	150	100	230011201827	1910
SVP45-44	45	2640	60	200	150	286016502114	3500
SVP55-53	55	3830	60	200	150	286016502114	3500
SVP75-75	75	4560	60	250	200	330022502350	5200
SVP90-90	90	5400	60	250	200	330022502350	5200

*FRIENDLY REMINDER: This parameter list is for reference only. We may adjust the related parameter. if there is any change, we will not inform you otherwise.If you do not know, please call us.

*FRIENDLY REMINDER: The standard specifications of our products are applicable to regions with an altitude below 1,000 meters. For usage environments exceeding 1,000 meters above sea level, please feel free to contact us for customized configurations to ensure optimal equipment performance and operational safety.
