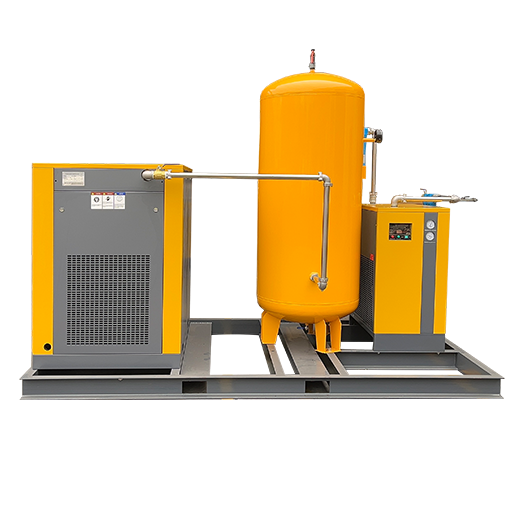

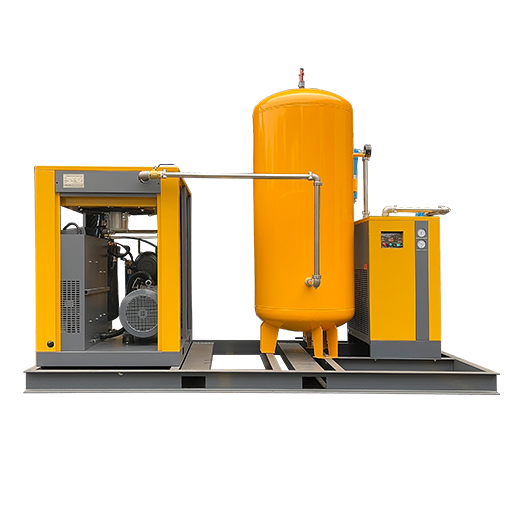

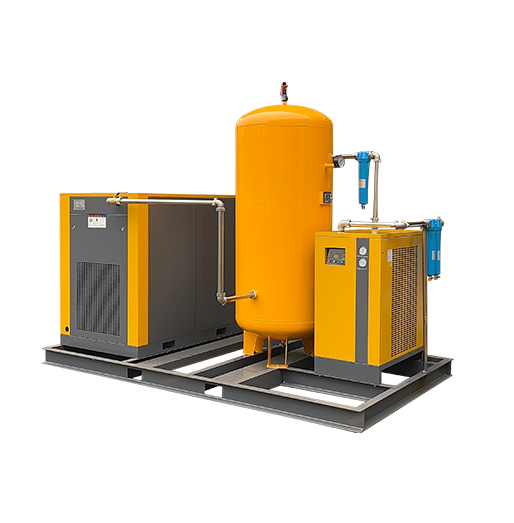

Skid-Mounted Air Compressor 30-100HP

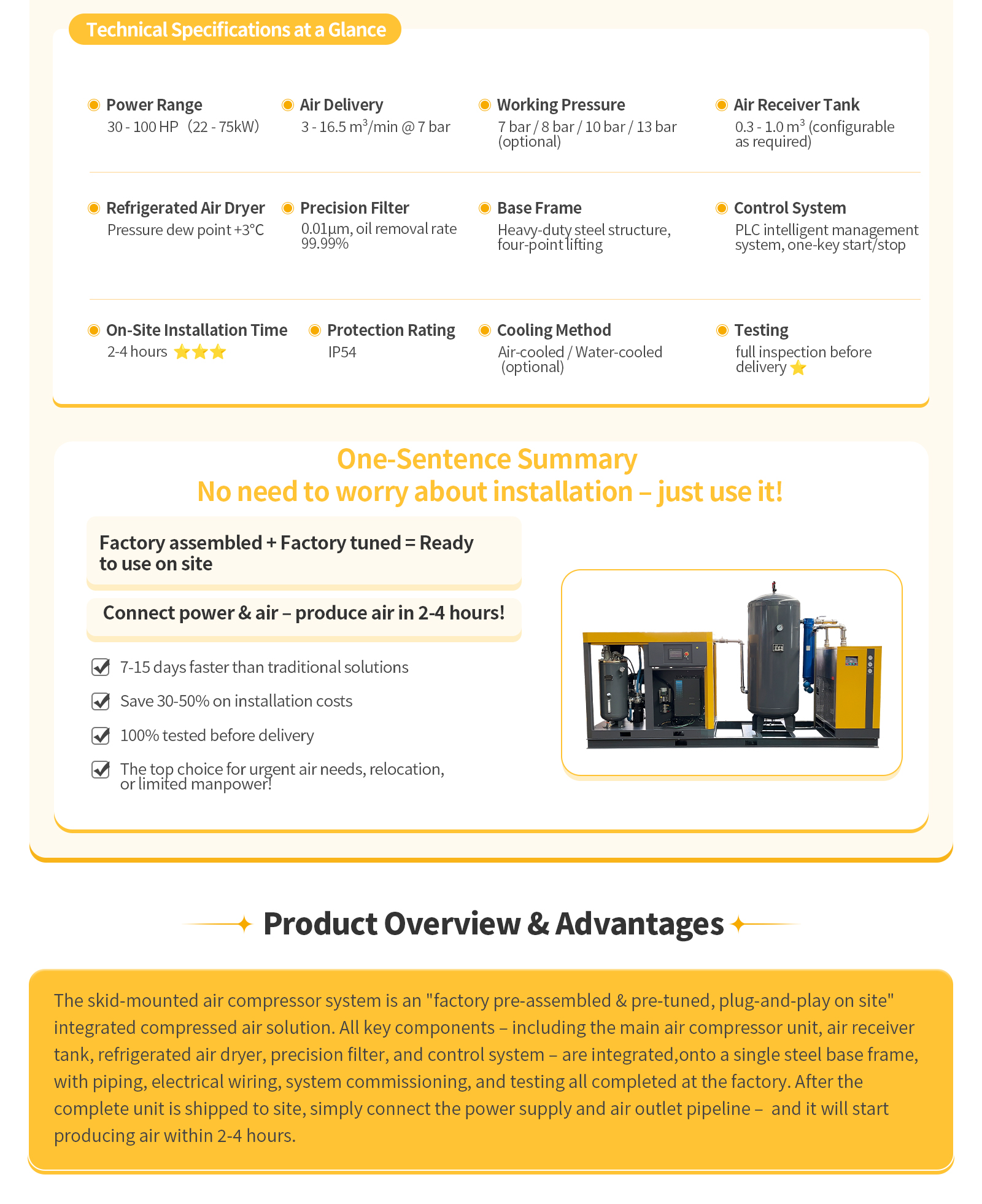

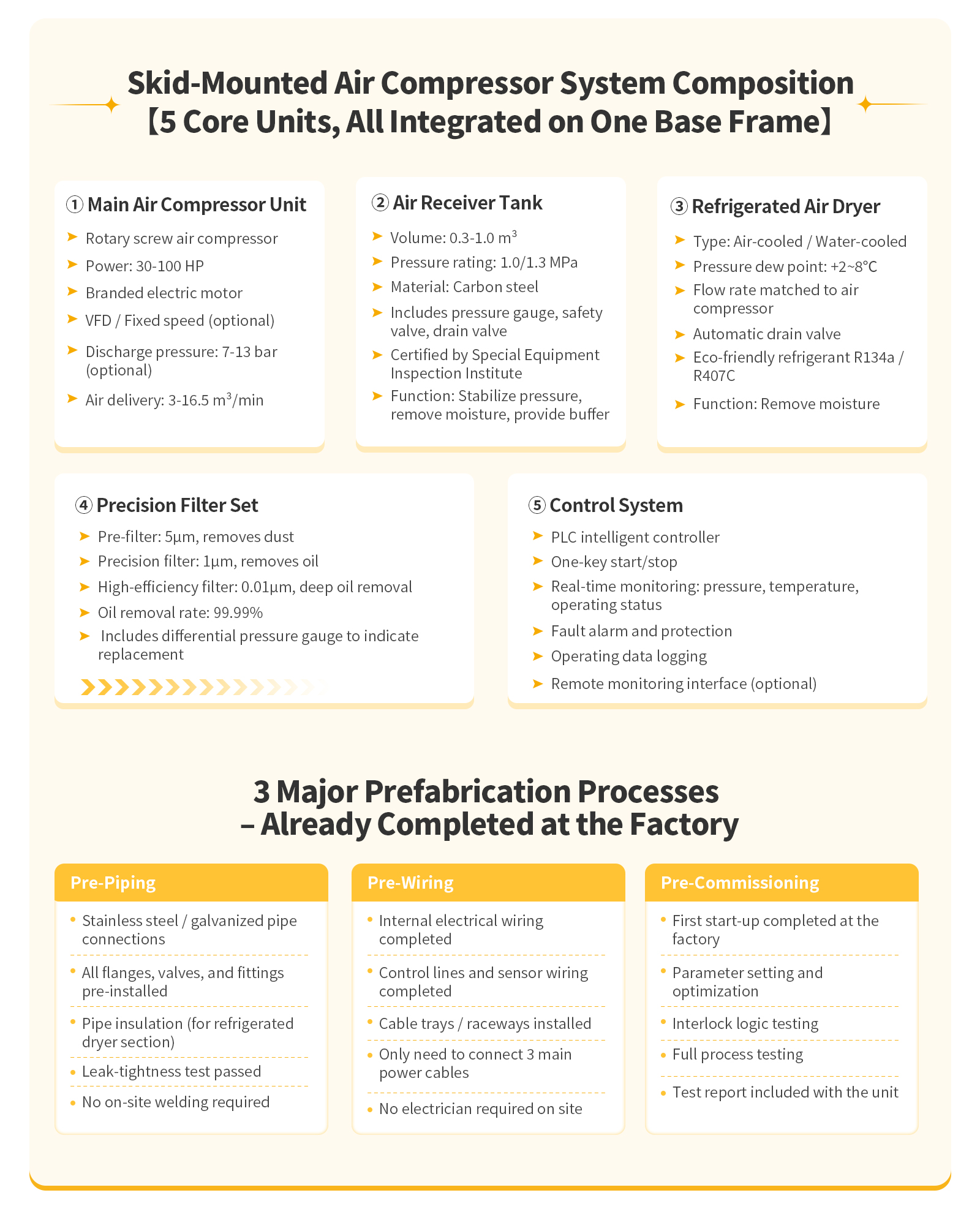

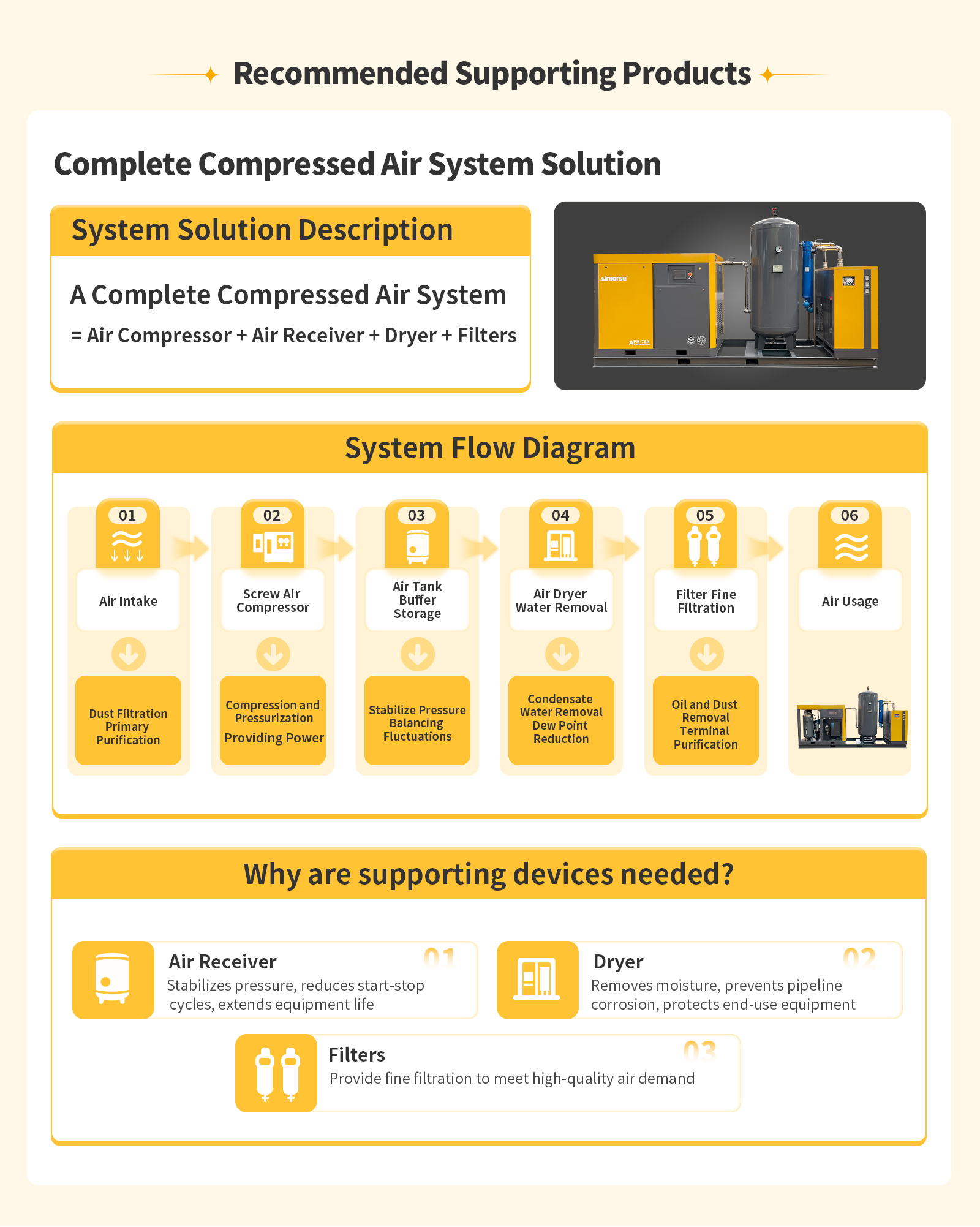

Skid-Mounted Air Compressor, 30HP-100HP, the compressor, refrigerated dryer, precision filters, and air receiver are all pre-piped and pre-wired on a single base. Once delivered, you only need to hook up power and the air line for it to run. After a complete Factory Acceptance Test (FAT) at the plant, on-site start-up and commissioning take just 2–4 hours before compressed air is ready.

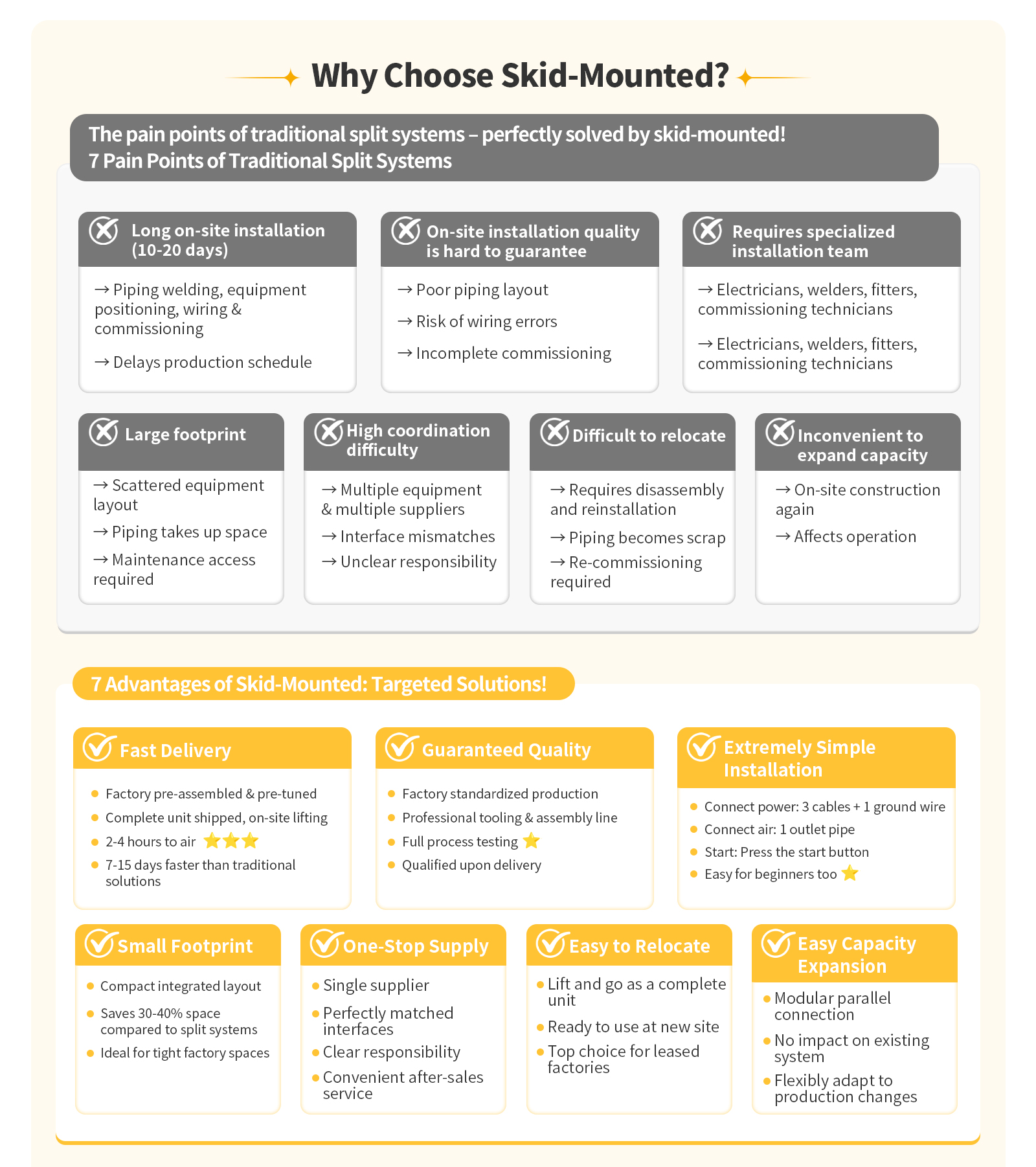

Compact structure and space saving. Since the skid-mounted device adopts intensive layout and compact layout, it can greatly reduce the land occupation, which is of great significance for the oil and gas industry, which occupies a large amount of land.

Convenient demolition and easy to move. The skid-mounted device is easy to disassemble and assemble.

Indoor operation and cost saving. Most of the work is completed in the factory. On-site installation only requires installing the skid to the foundation, connecting the skid inlet and outlet pipelines, and wiring some electrical instruments, which greatly reduces the on-site workload and installation time.

Next Product

Inquire Now

Product Details

Technical Parmeters

Catalogue Download

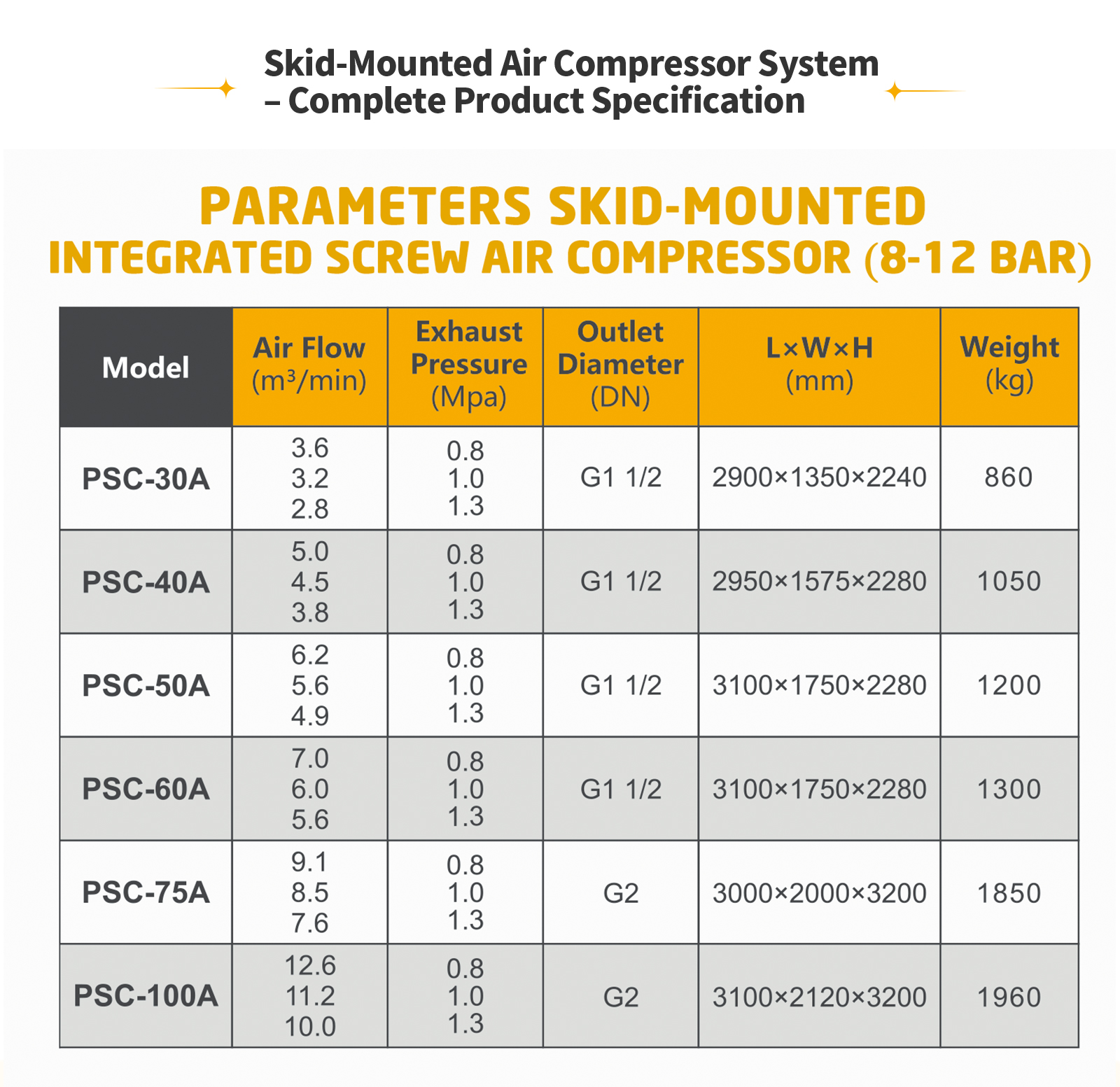

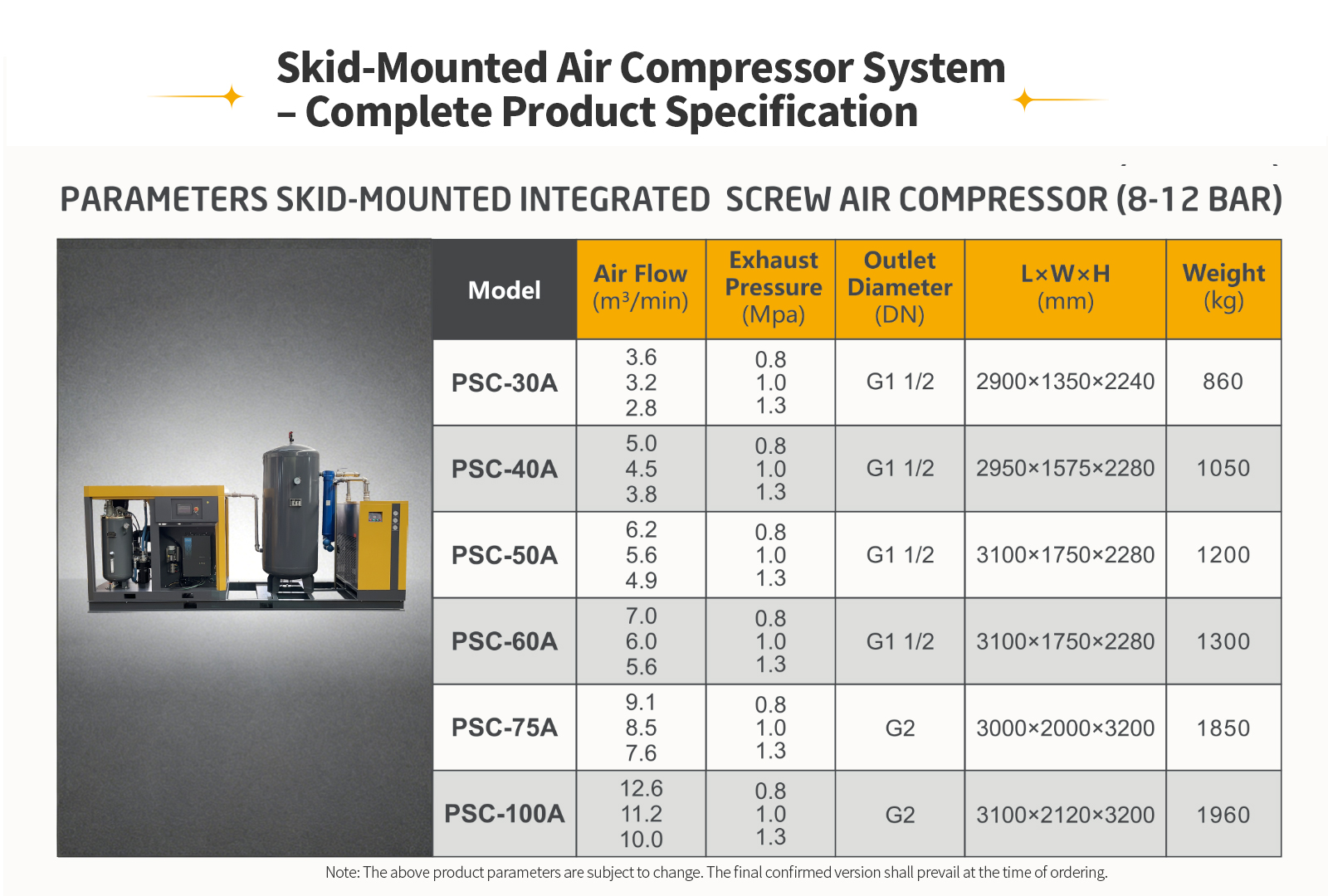

Skid-mounted Integrated Screw Air Compressor（8~12bar）
Model	Discharge volume（m3/min）	exhaust pressure（Mpa）	Size（mm）	Weight（kg）	Outlet pipe diameter（DN）
PSC-30A	3.6 3.2 2.8	0.8 1.0 1.2	290013502240	860	G 1 1/2
PSC-40A	5.0 4.5 3.8	0.8 1.0 1.2	295015752280	1050	G 1 1/2
PSC-50A	6.2 5.6 4.9	0.8 1.0 1.2	310017502280	1200	G 1 1/2
PSC-60A	7.0 6.0 5.6	0.8 1.0 1.2	310017502280	1300	G 1 1/2
PSC-75A	9.1 8.5 7.6	0.8 1.0 1.2	300020003200	1850	G 2
PSC-100A	12.6 11.2 10.0	0.8 1.0 1.2	310021203200	1960	G 2

*FRIENDLY REMINDER: This parameter list is for reference only. We may adjust the related parameter. if there is any change, we will not inform you otherwise.If you do not know, please call us.

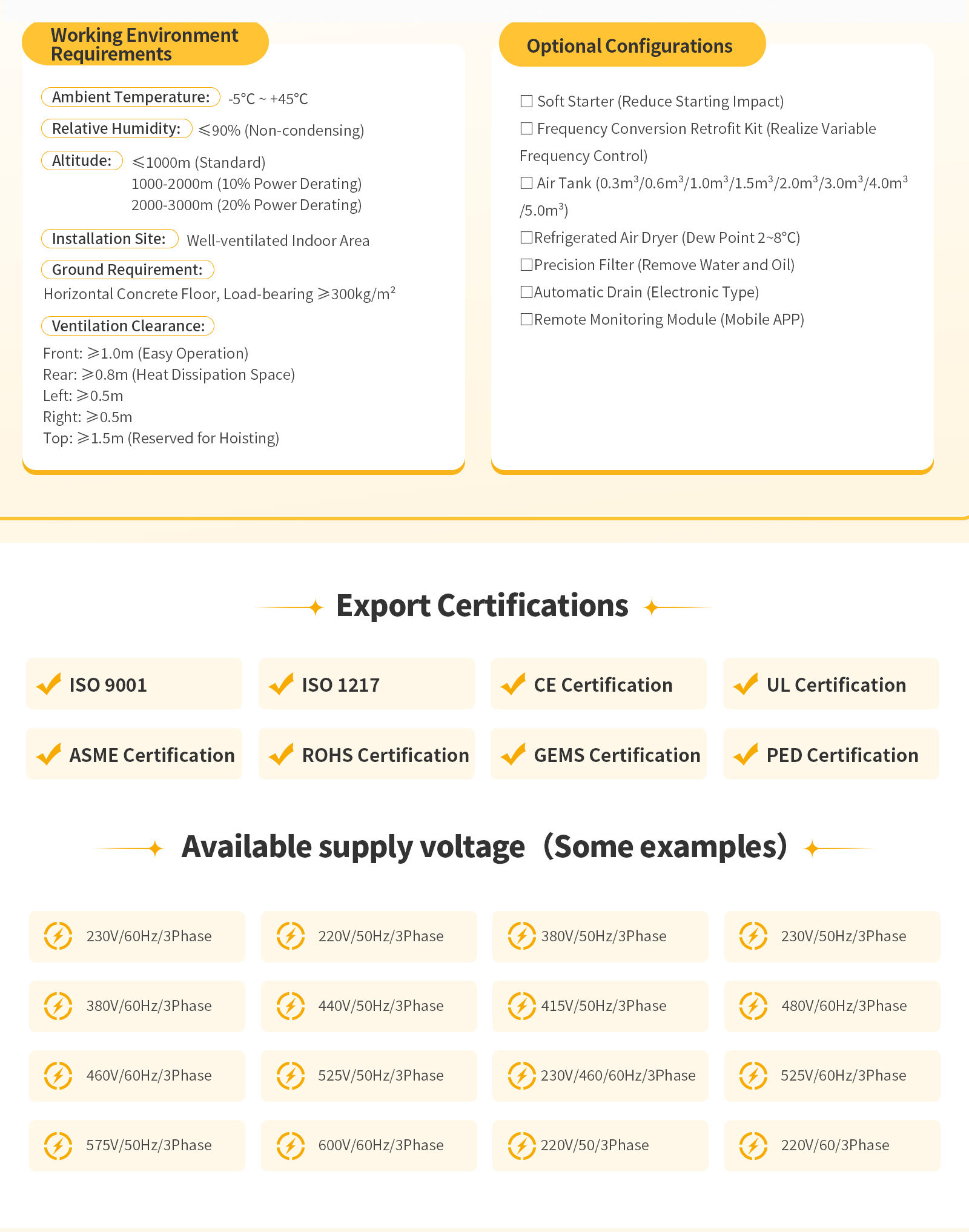

*FRIENDLY REMINDER: The standard specifications of our products are applicable to regions with an altitude below 1,000 meters. For usage environments exceeding 1,000 meters above sea level, please feel free to contact us for customized configurations to ensure optimal equipment performance and operational safety.
