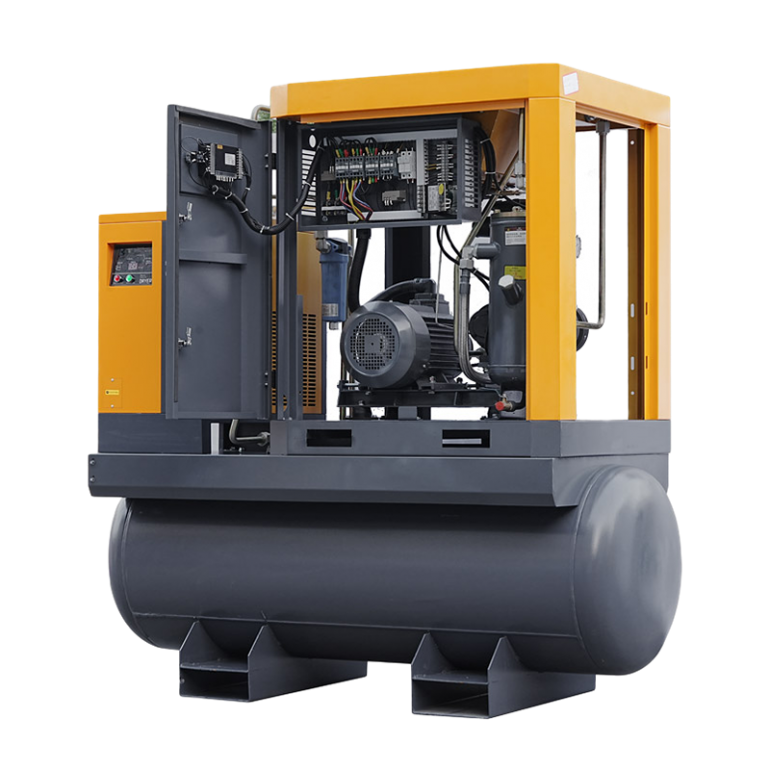

Tank, Dryer,Filter Mounted Screw Compressor 7-30HP111

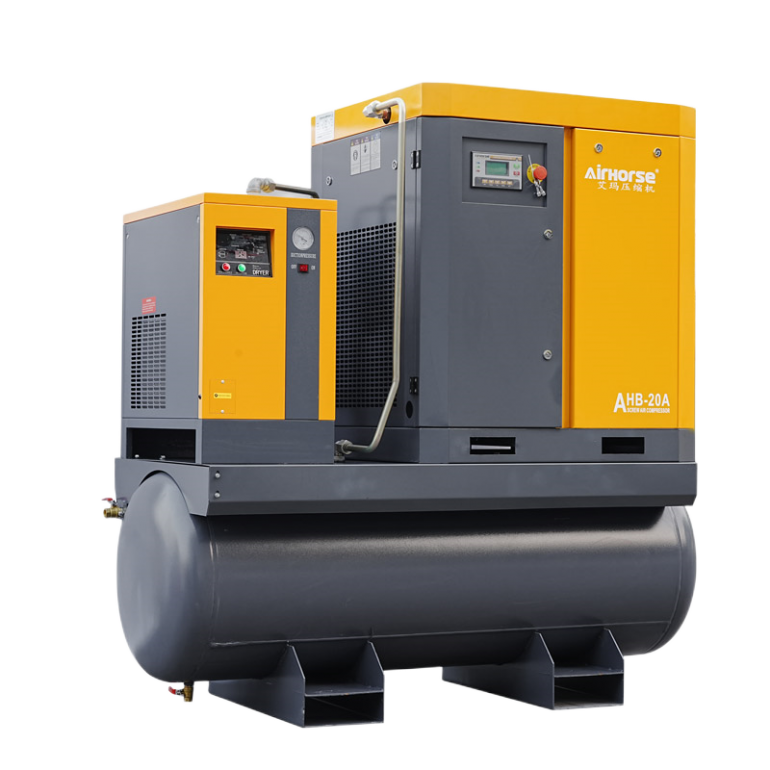

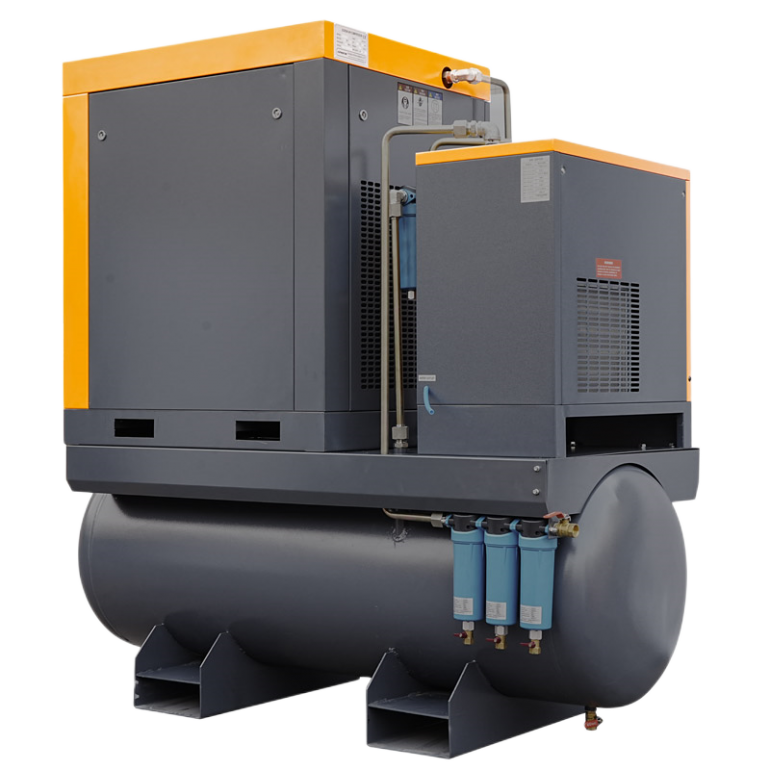

Tank, Dryer,Filter Mounted Screw Compressor 7-30HP

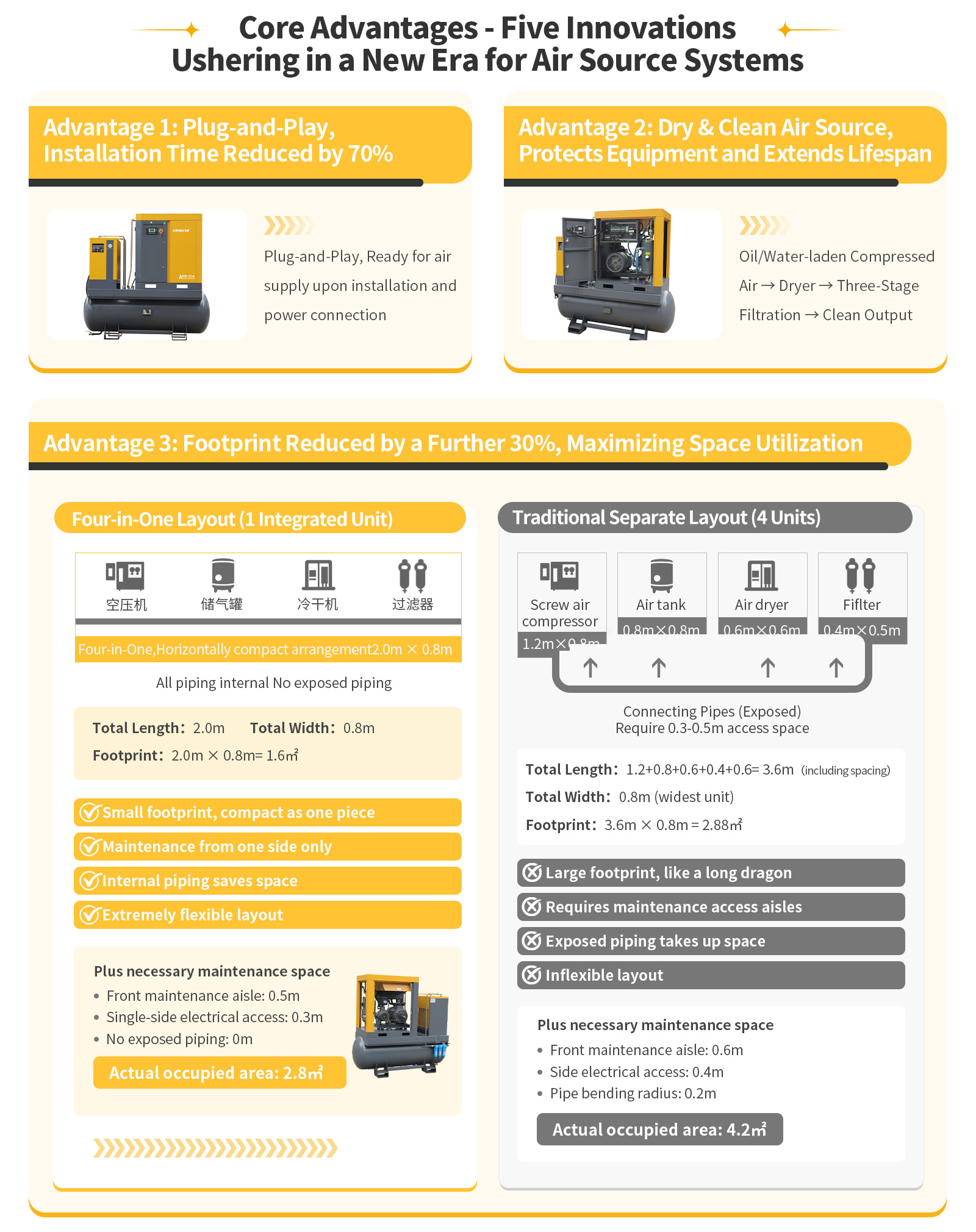

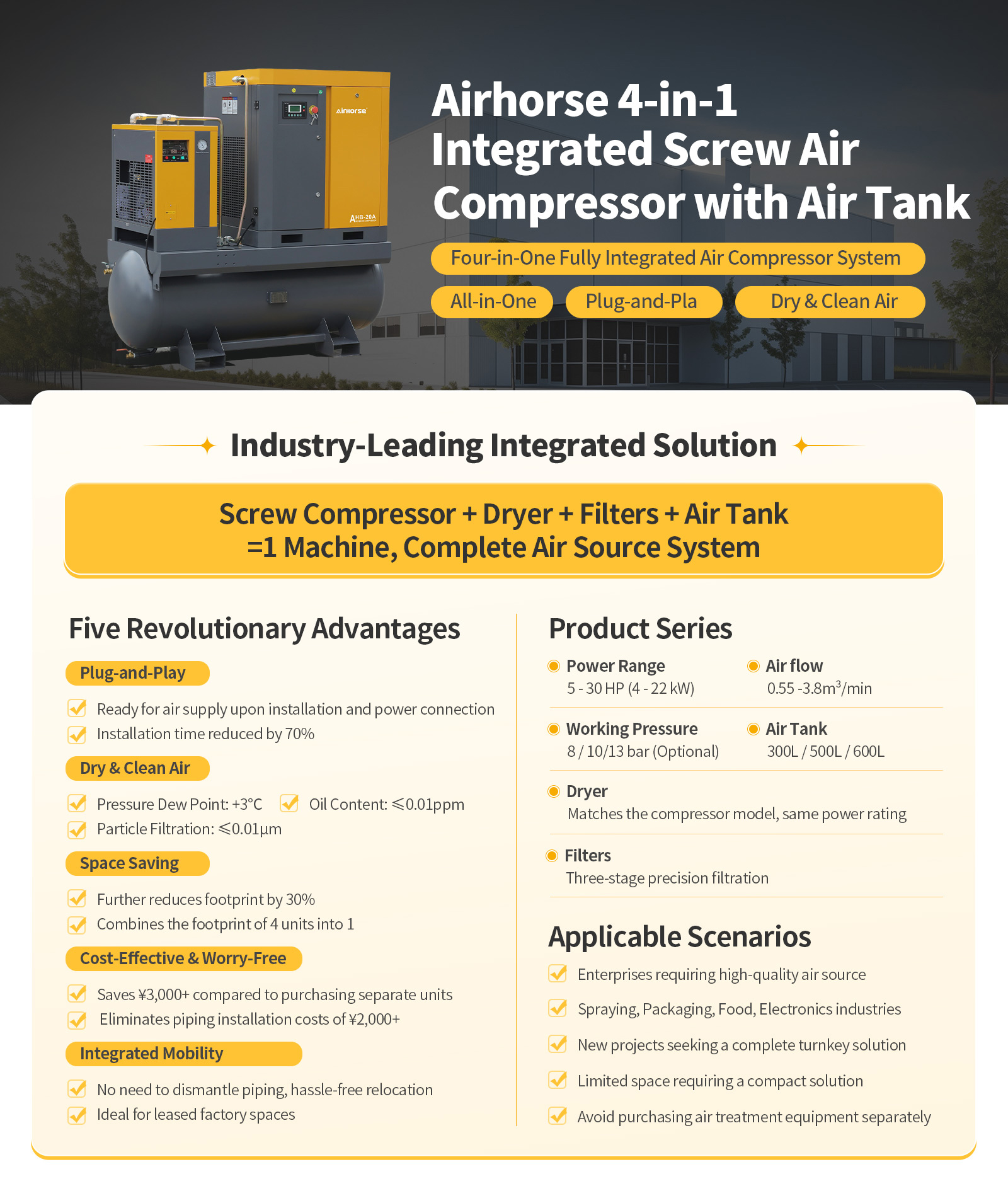

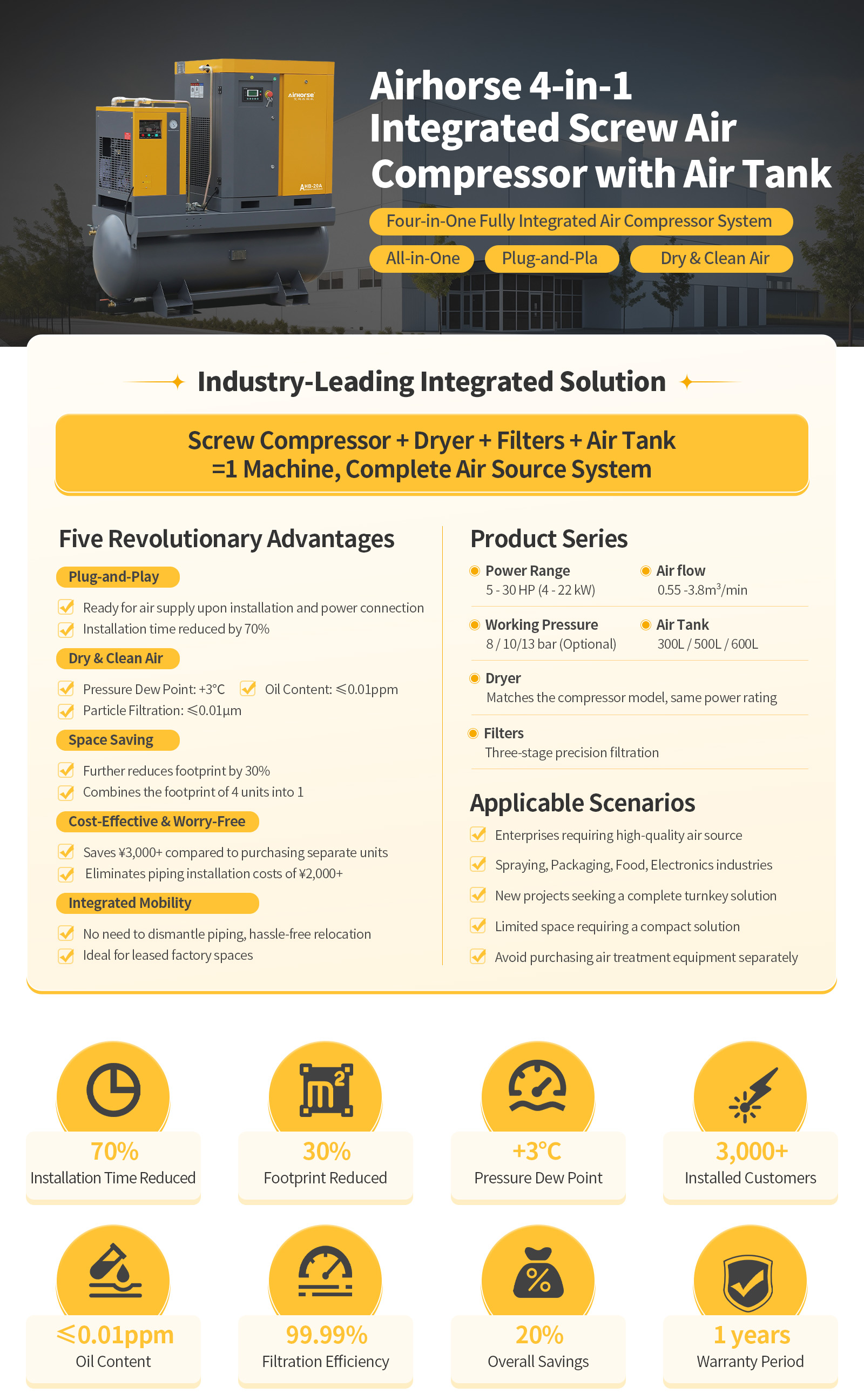

Tank, Dryer,Filter mounted screw compressor 7-30HP comes in a fully integrated package: compressor, refrigerated dryer, filters, and receiver tank are all housed in a single cabinet. It is truly plug-and-play—just set it in place, connect the power, and you’re producing air, reducing installation time by 70 %. The compact footprint trims floor-space needs by an additional 30 %, giving your shop far greater layout flexibility.

High-efficiency Components

Setting the Standard in System Design

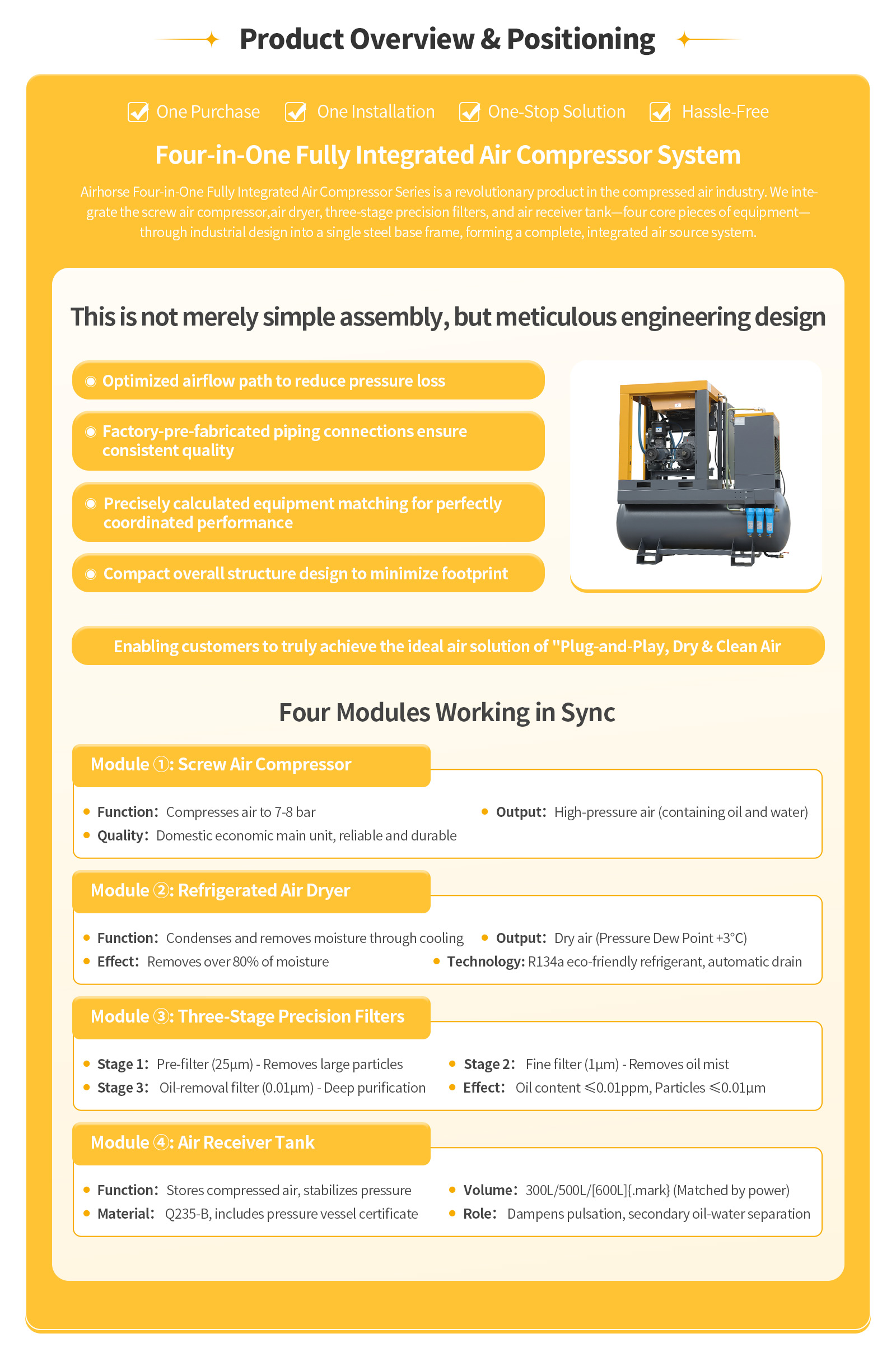

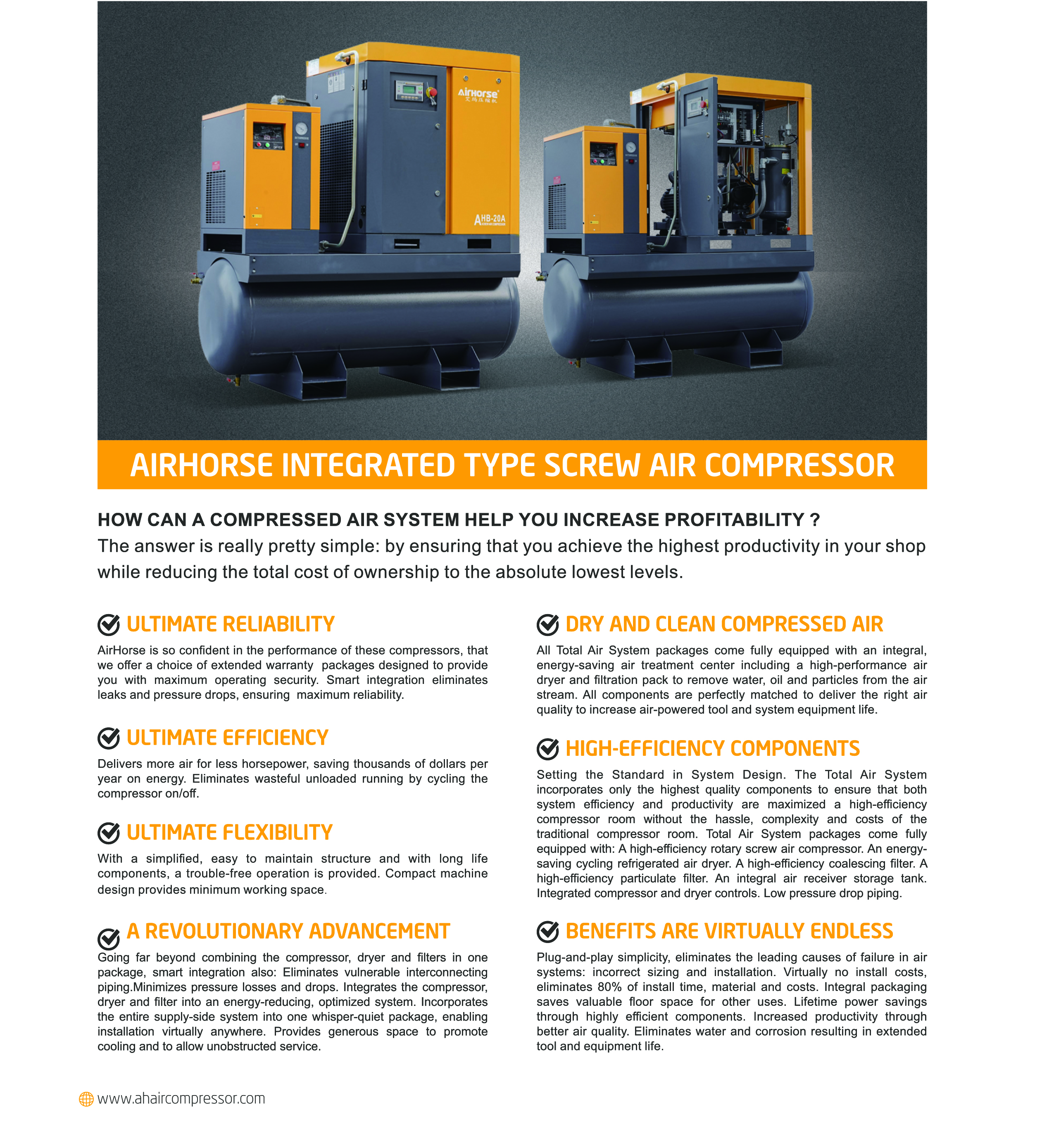

The Total Air System incorporates only the highest quality components to ensure that both system efficiency and productivity are maximized-- a high-efficiency compressor room without the hassle, complexity and costs of the traditional compressor room. Total Air System packages come fully equipped with:

A high-efficiency rotary screw air compressor

An energy-saving cycling refrigerated air dryer

A high-efficiency coalescing filter

A high-efficiency particulate filter

An integral air receiver storage tank

Integrated compressor and dryer controls

Low pressure drop piping

Next Product

Inquire Now

Product Details

Technical Parmeters

Catalogue Download

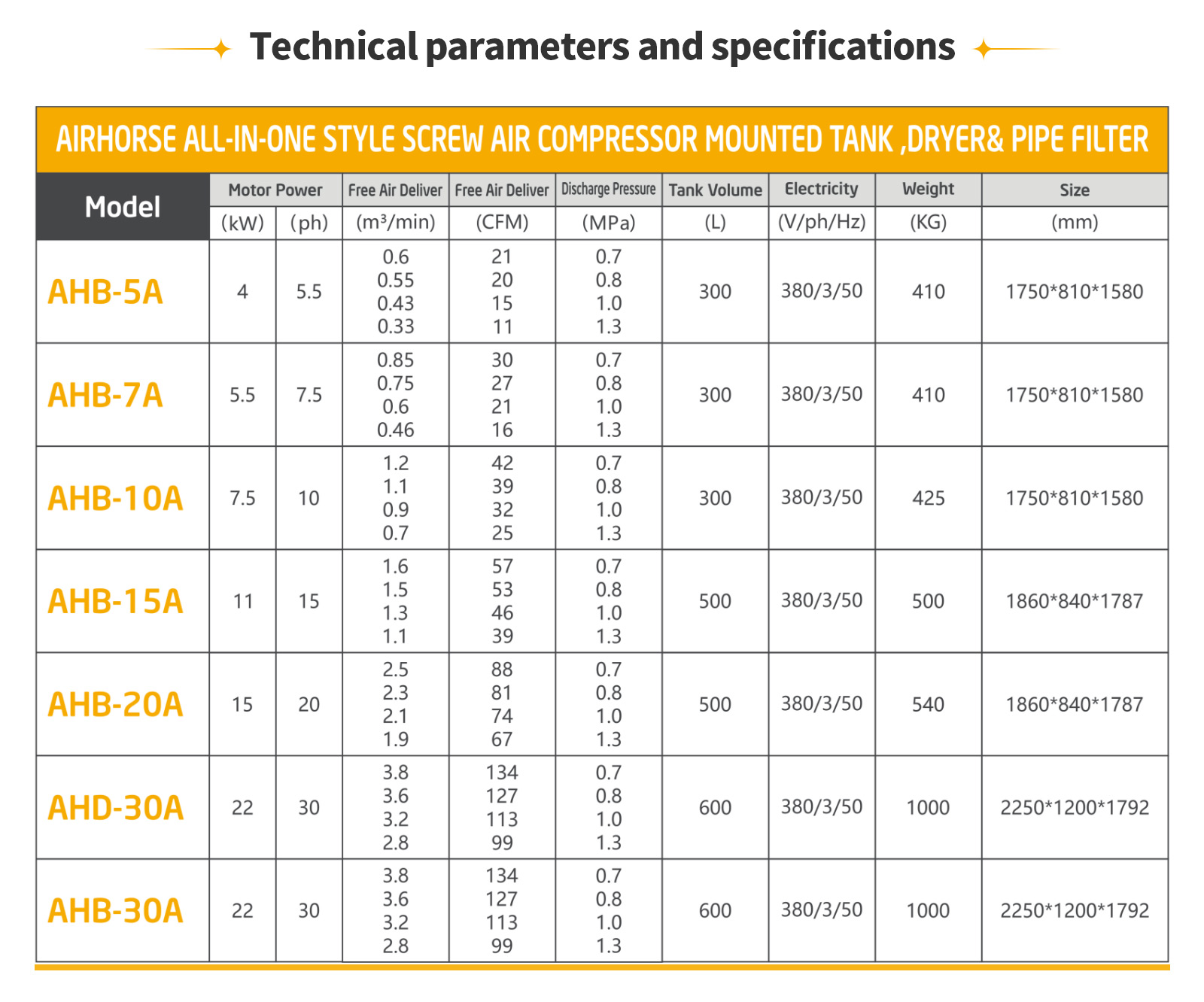

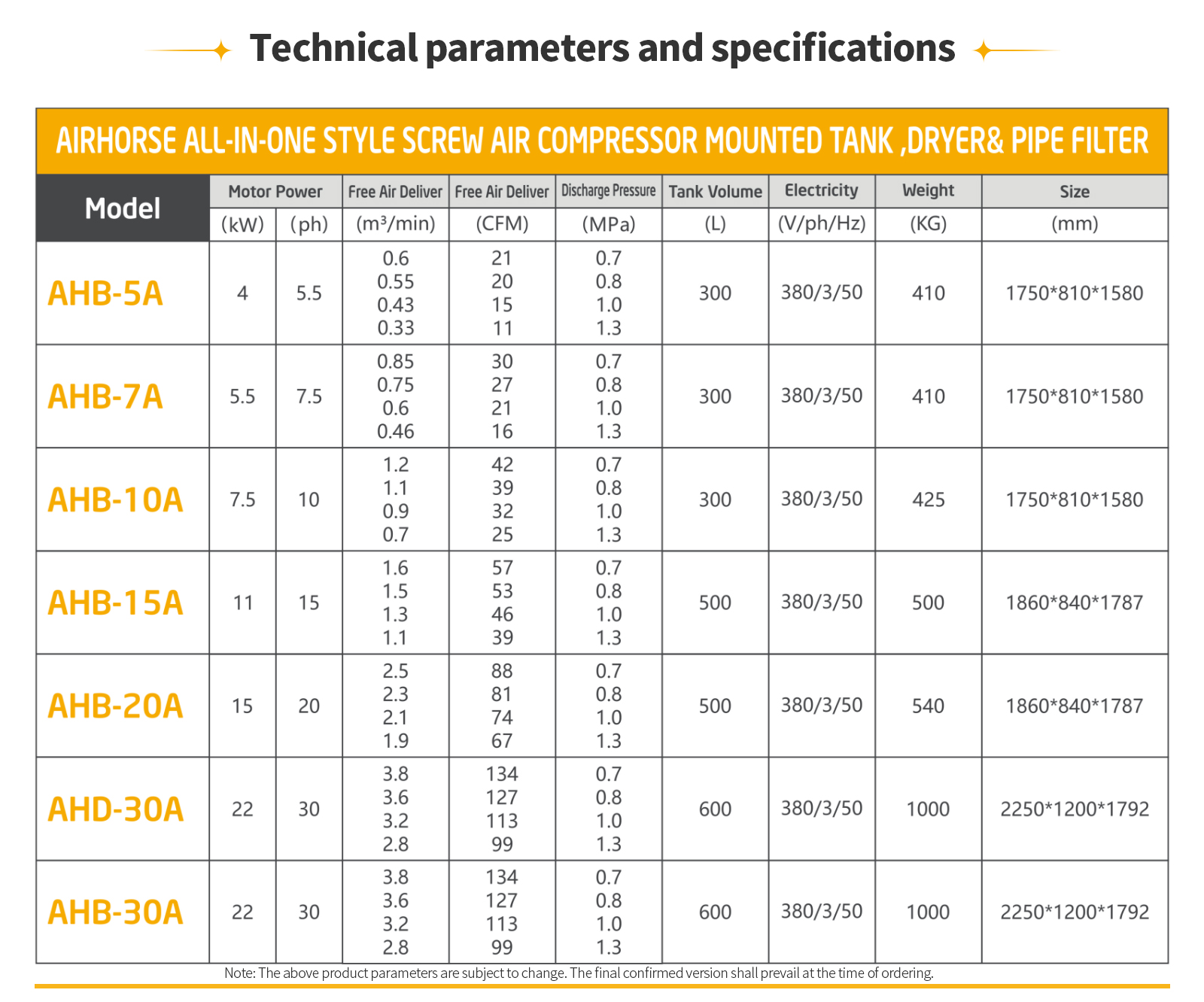

Tank and Dryer Mounted Screw Air Compressor (4-in-1 type)
Model	Motor Power		Free Air Deliver	Free Air Deliver	Discharge Pressure	Tank Volume	Electricity	Weight	Size
Model	(KW)	(HP)	(m³/min)	(CFM)	(MPa)	(L)	(V/ph/Hz)	(KG)	(mm)
AHB-5A	4	5.5	0.6 0.55 0.43 0.33	21 20 15 11	0.7 0.8 1.0 1.3	300	380/3/50	410	17508101580
AHB-7A	5.5	7.5	0.85 0.75 0.6 0.46	30 27 21 16	0.7 0.8 1.0 1.3	300	380/3/50	410	17508401580
AHB-10A	7.5	10	1.2 1.1 0.9 0.7	42 39 32 25	0.7 0.8 1.0 1.3	300	380/3/50	425	17508401580
AHB-15A	11	15	1.6 1.5 1.3 1.1	57 53 46 39	0.7 0.8 1.0 1.3	500	380/3/50	500	18608101580
AHB-20A	15	20	2.5 2.3 2.1 1.9	88 81 74 67	0.7 0.8 1.0 1.3	500	380/3/50	540	18608401787
AHB-30A	22	30	3.8 3.6 3.2 2.8	134 127 113 99	0.7 0.8 1.0 1.3	600	380/3/50	1000	225012001792
AHD-30A	22	30	3.8 3.6 3.2 2.8	134 127 113 99	0.7 0.8 1.0 1.3	600	380/3/50	1000	225012001792

*FRIENDLY REMINDER: This parameter list is for reference only. We may adjust the related parameter. if there is any change, we will not inform you otherwise.If you do not know, please call us.

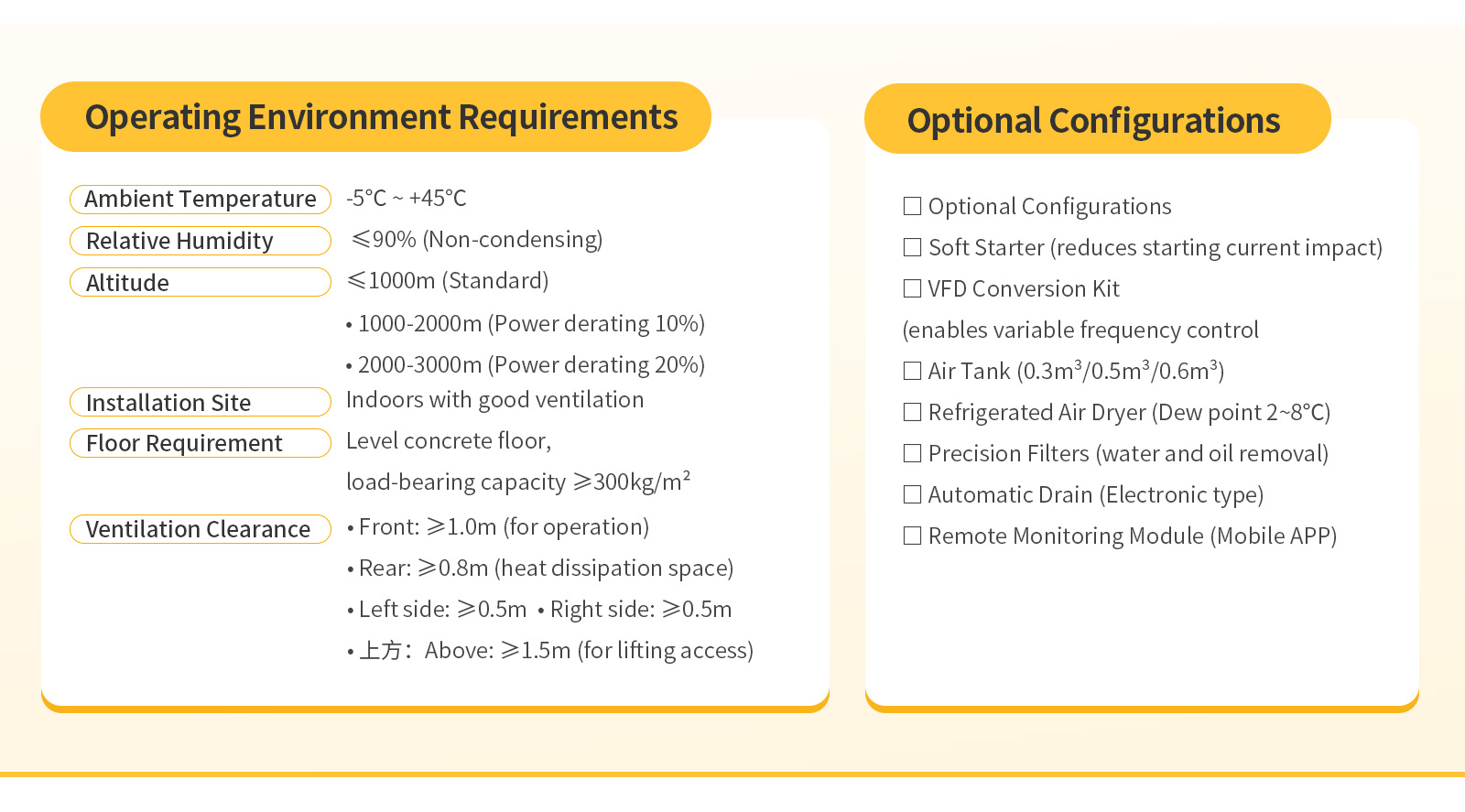

*FRIENDLY REMINDER: The standard specifications of our products are applicable to regions with an altitude below 1,000 meters. For usage environments exceeding 1,000 meters above sea level, please feel free to contact us for customized configurations to ensure optimal equipment performance and operational safety.

Tank, Dryer,Filter mounted screw compressor
Download

Why Choose Us ?

High Quality Control

AirHorse ensure every machine Runs well more than 15 years
Quickly Effect Shipment

Stock Available + Very Quickly Effect Shipment
24 Hours
Service

24 Hours Service Always at your service

AirHorse is an internationally renowned manufacturer of screw air compressors, please contact us for more information on air compressors. For a long time to provide you with high quality air compression services.
