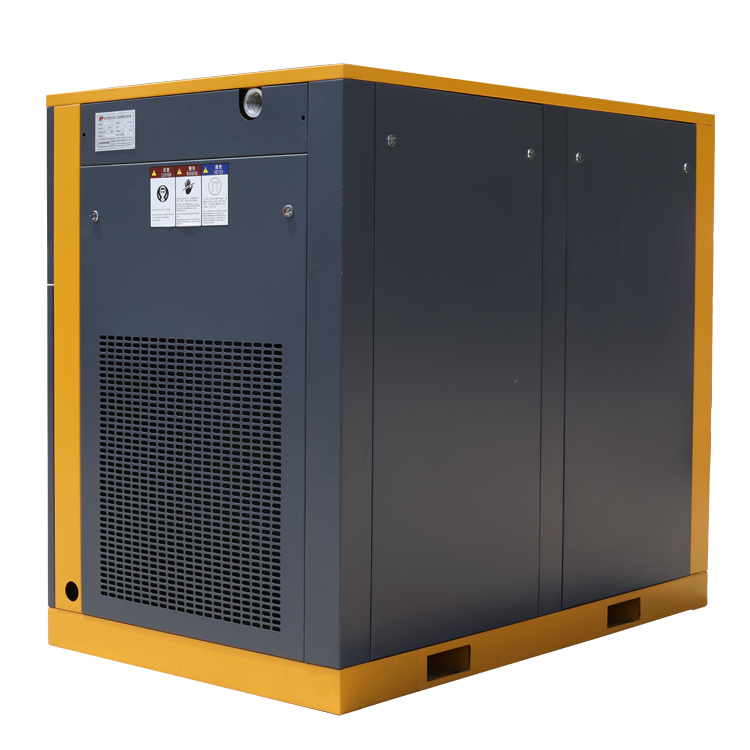

Low Pressure Screw Air Compressor 3-5Bar 20-250HP,rotary screw compressor,screw compressor,air compressor,compressor installation,compressors spares111

Low Pressure Screw Air Compressor 3-5Bar 20-250HP,rotary screw compressor,screw compressor,air compressor,compressor installation,compressors spares

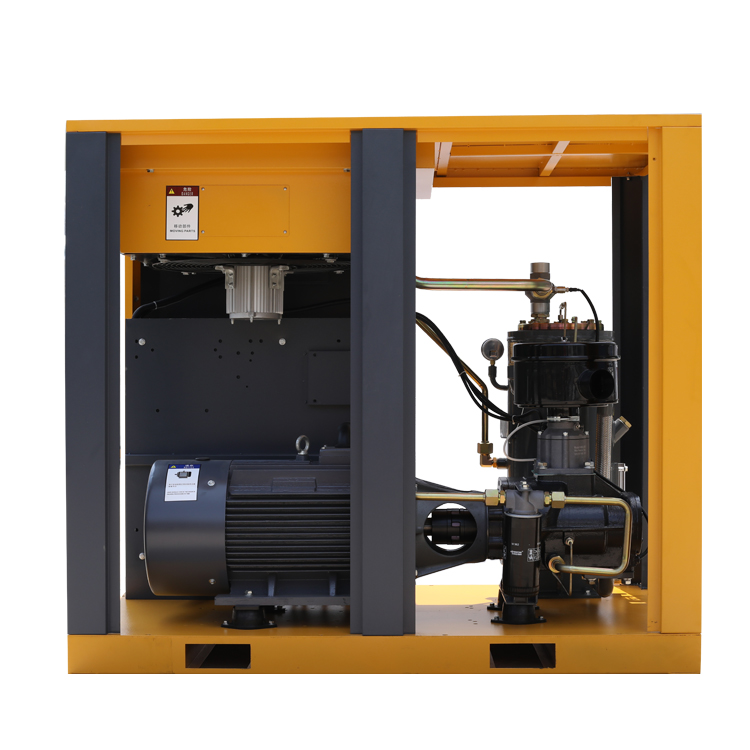

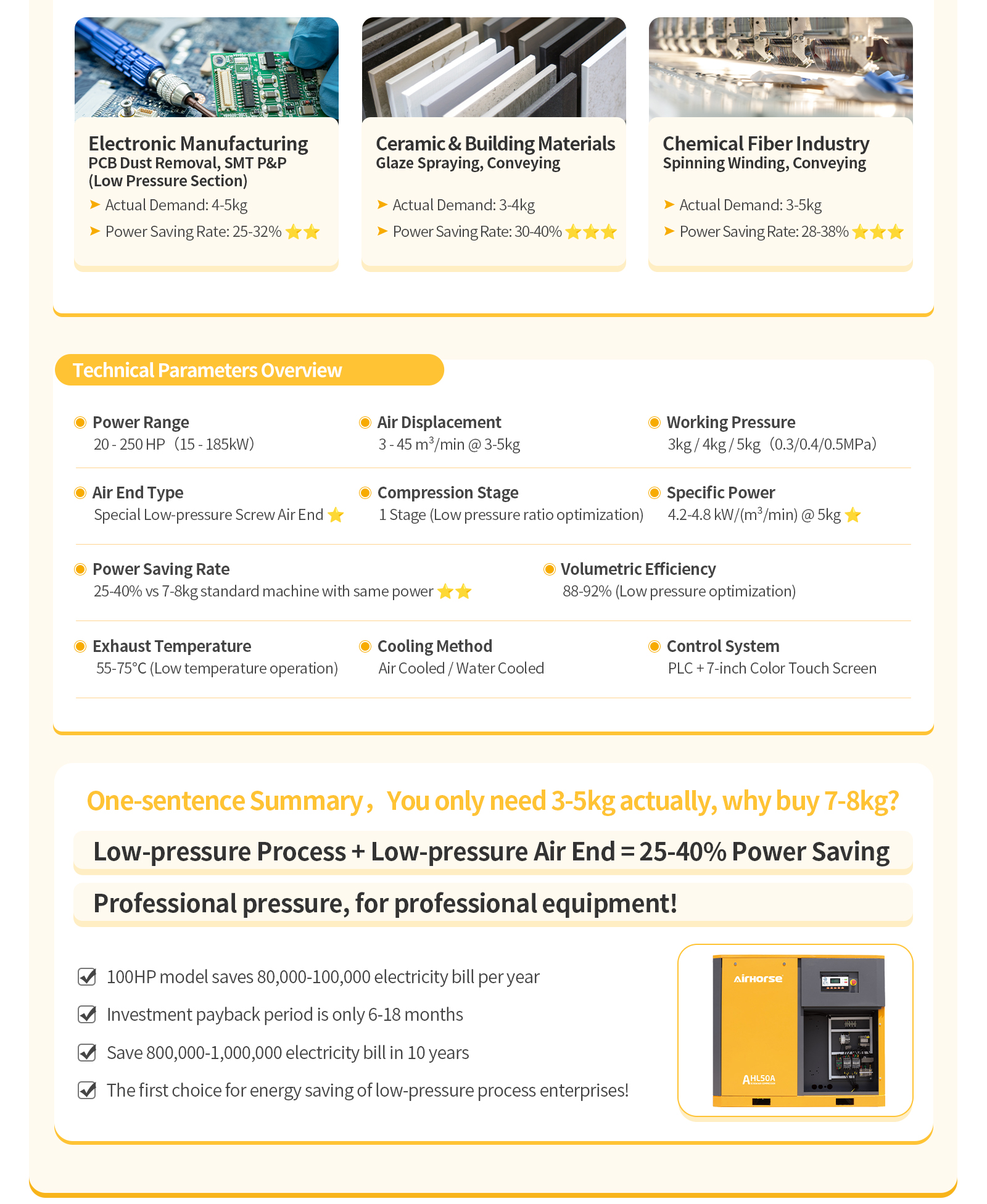

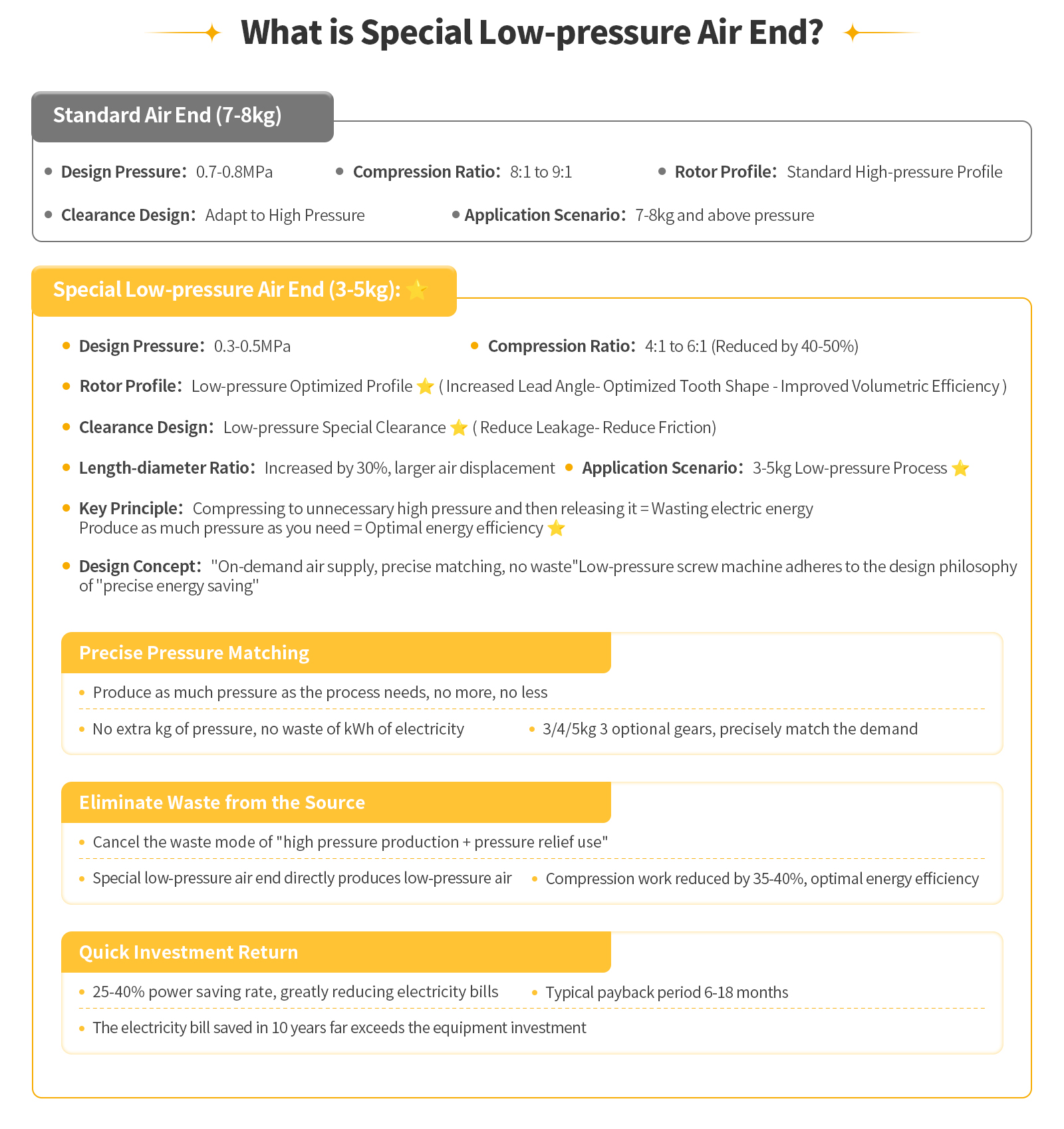

Low pressure screw air compressor 3-5Bar, 20-250HP, equipped with a dedicated low-pressure air end uses 25–40 % less electricity than a standard 7–8 bar unit of the same power; if the existing system is still throttling down from pressures above 0.6 MPa, the savings can exceed 40 %.

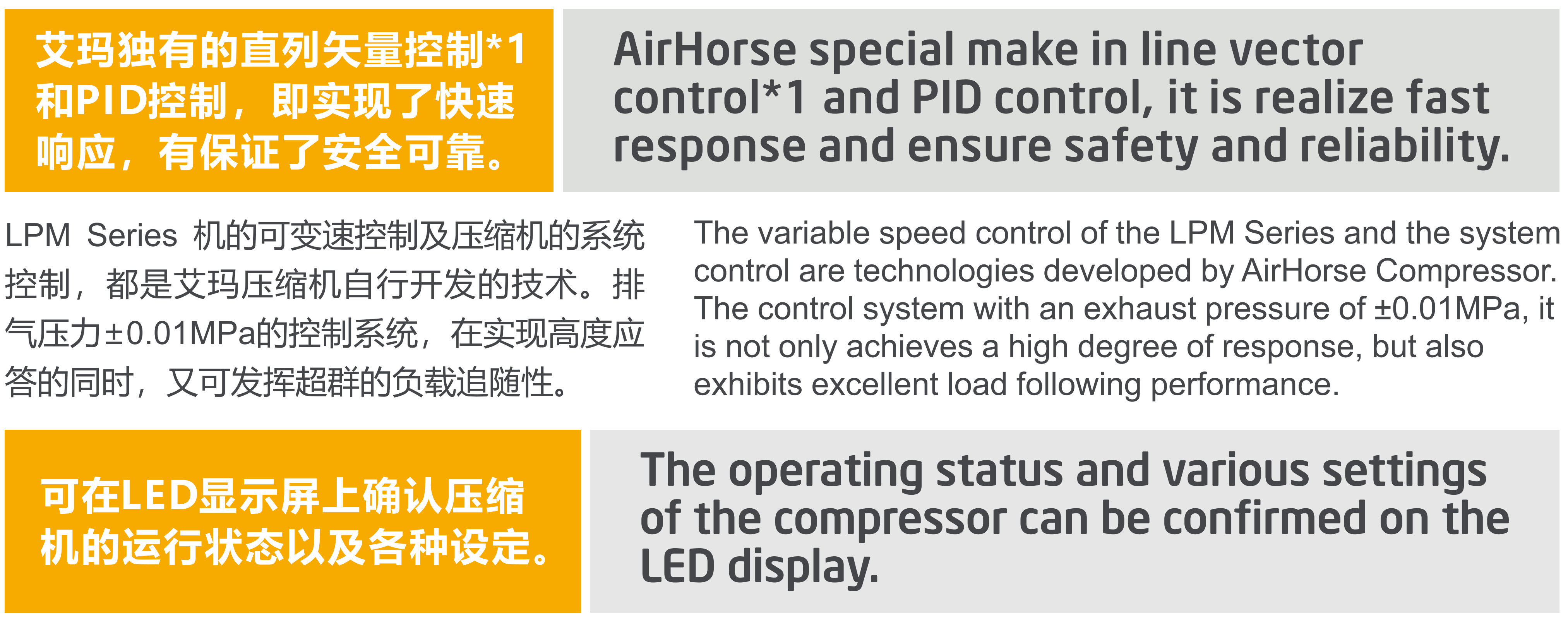

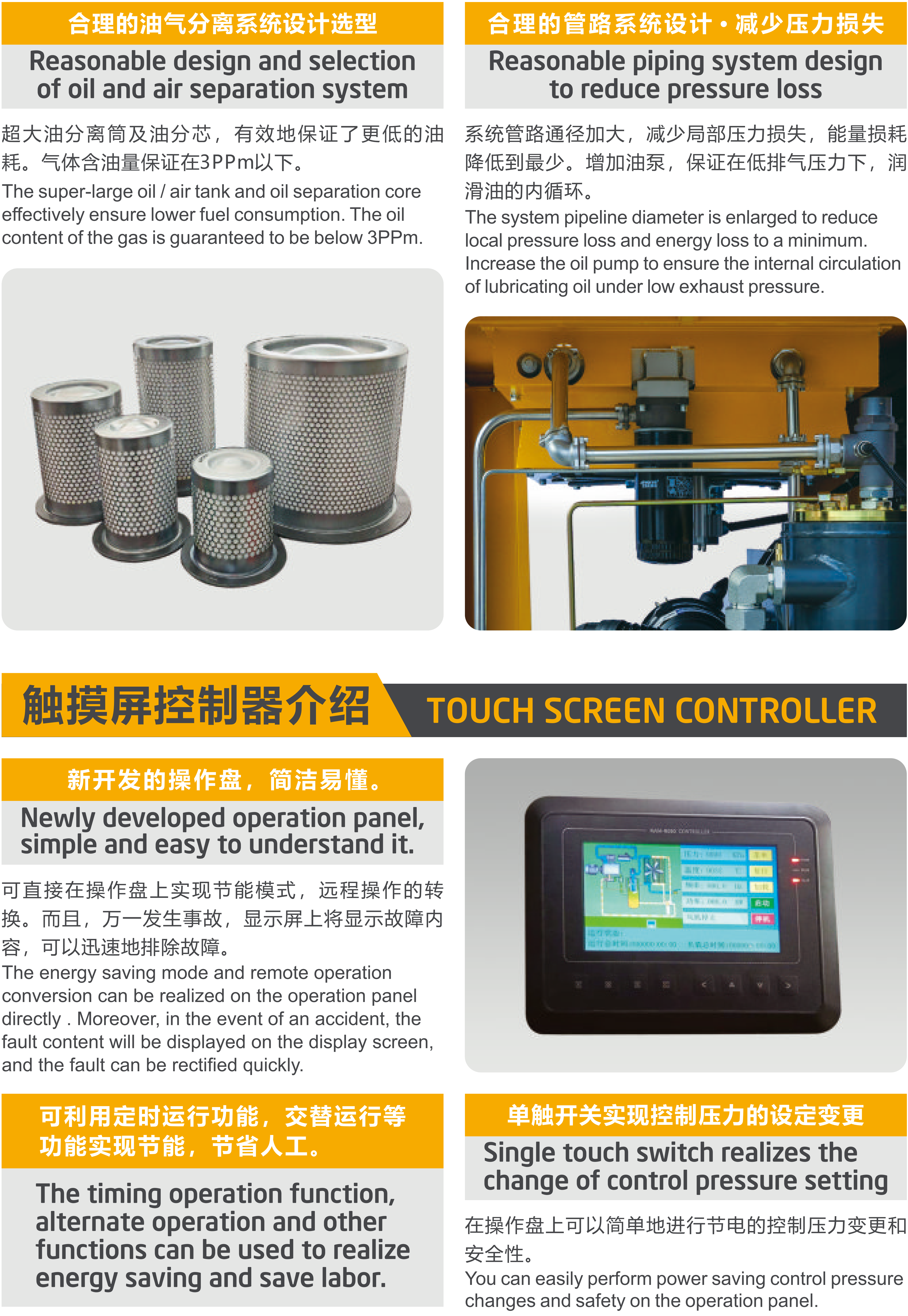

Air Horse special make in line vector control*! and PID control, it is realize fast response and ensure safety and reliability.

What is a low pressure compressor?

Low pressure air compressors are a type of compressor classified by pressure, and the discharge pressure is 1-10MPa. Models are available in piston, membrane, screw and centrifugal compressors.

Next Product

Inquire Now

Product Details

Technical Parmeters

Catalogue Download

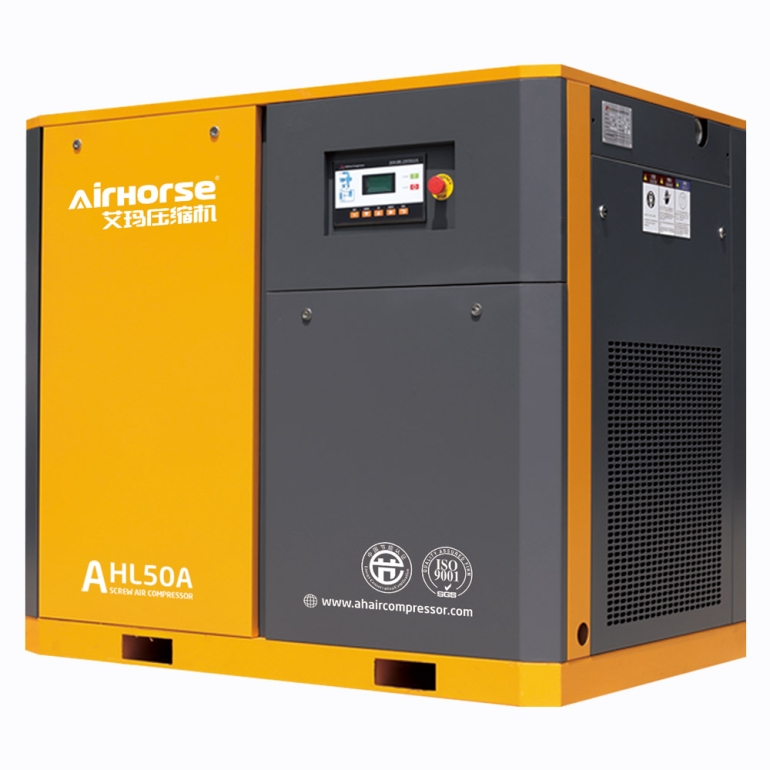

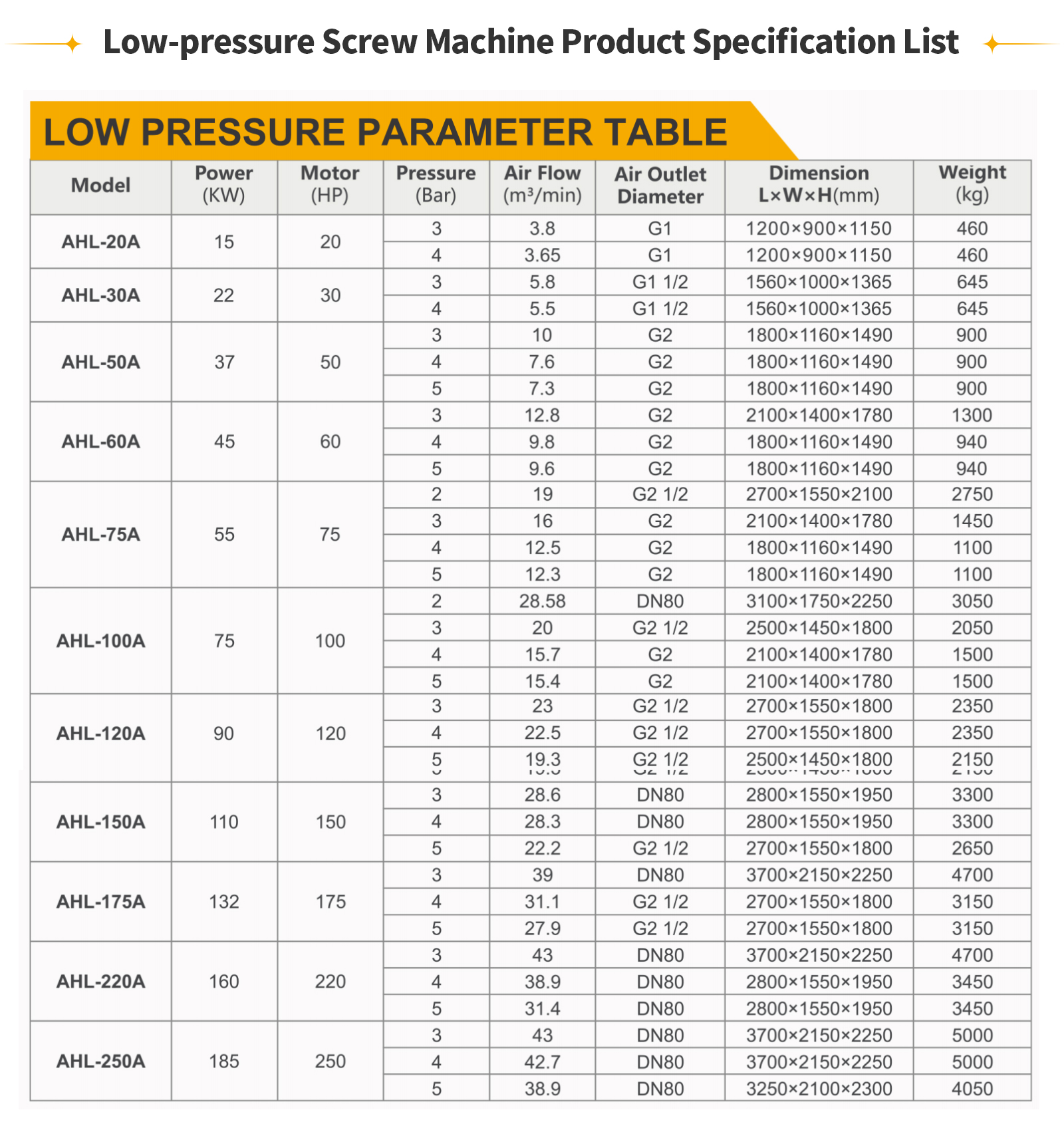

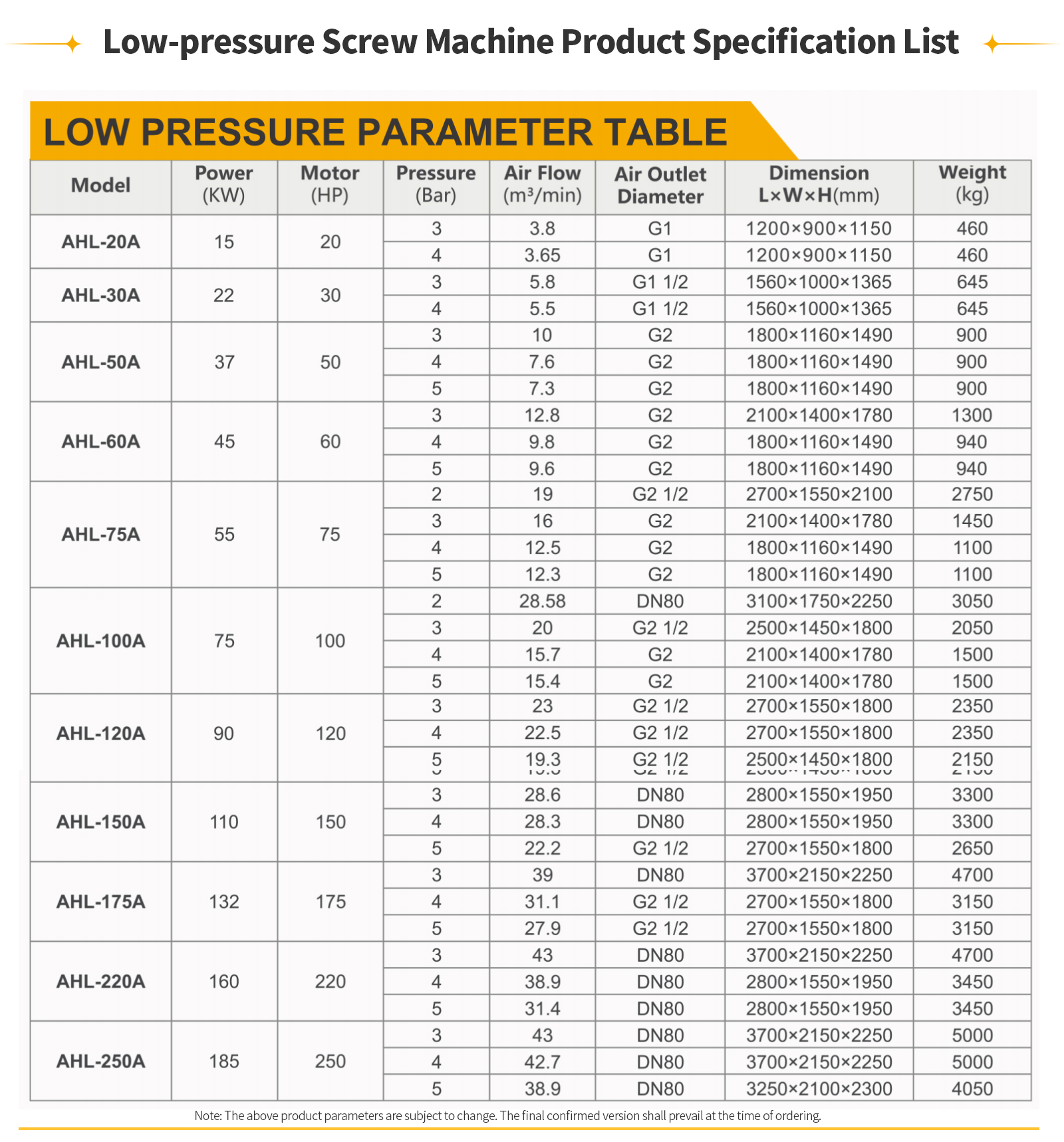

Low pressure screw air compressor (3-5bar)
Model	Discharge pressure	Air flow	Dimension	Pipe diameter	Weight
	（Mpa）	（m³/min）	（LxWxH）mm		（kg）
AHL-20HP	0.3	3.8	12009001150	G 1	460
	0.4	3.65
AHL-30HP	0.3	5.8	156010001365	G1 1/2	645
	0.4	5.5
AHL-50HP	0.3	10	180011601490	G2	900
	0.4	7.6
	0.5	7.3
AHL-60HP	0.3	12.8	210014001780	G2	1300
	0.4	9.8	180011601490		940
	0.5	9.6
AHL-75HP	0.2	19	270015502100	G2 1/2	2750
	0.3	16	210014001780	G2	1450
	0.4	12.5	180011601490		1100
	0.5	12.3
AHL-100HP	0.2	28.58	310017502250	DN80	3050
	0.3	20	250014501800	G2 1/2	2050
	0.4	15.7	210014001780	G2	1500
	0.5	15.4
AHL-120HP	0.3	23	270015501800	G2 1/2	2350
	0.4	22.5
	0.5	19.3	250014501800		2150
AHL-150HP	0.3	28.6	2800x1550x1950	DN80	3300
	0.4	28.3
	0.5	22.2	270015501800	G2 1/2	2650
AHL-175HP	0.3	39	370021502250	DN80	4700
	0.4	31.1	270015501800	G2 1/2	3150
	0.5	17.9
AHL-220HP	0.3	43	370021502250	DN80	4700
	0.4	38.9
	0.5	31.4	2800x1550x1950		3450
AHL-250HP	0.3	43	370021502250	DN80	5000
	0.4	42.7
	0.5	38.9	325021002300		4050

*FRIENDLY REMINDER: This parameter list is for reference only. We may adjust the related parameter. if there is any change, we will not inform you otherwise.If you do not know, please call us.

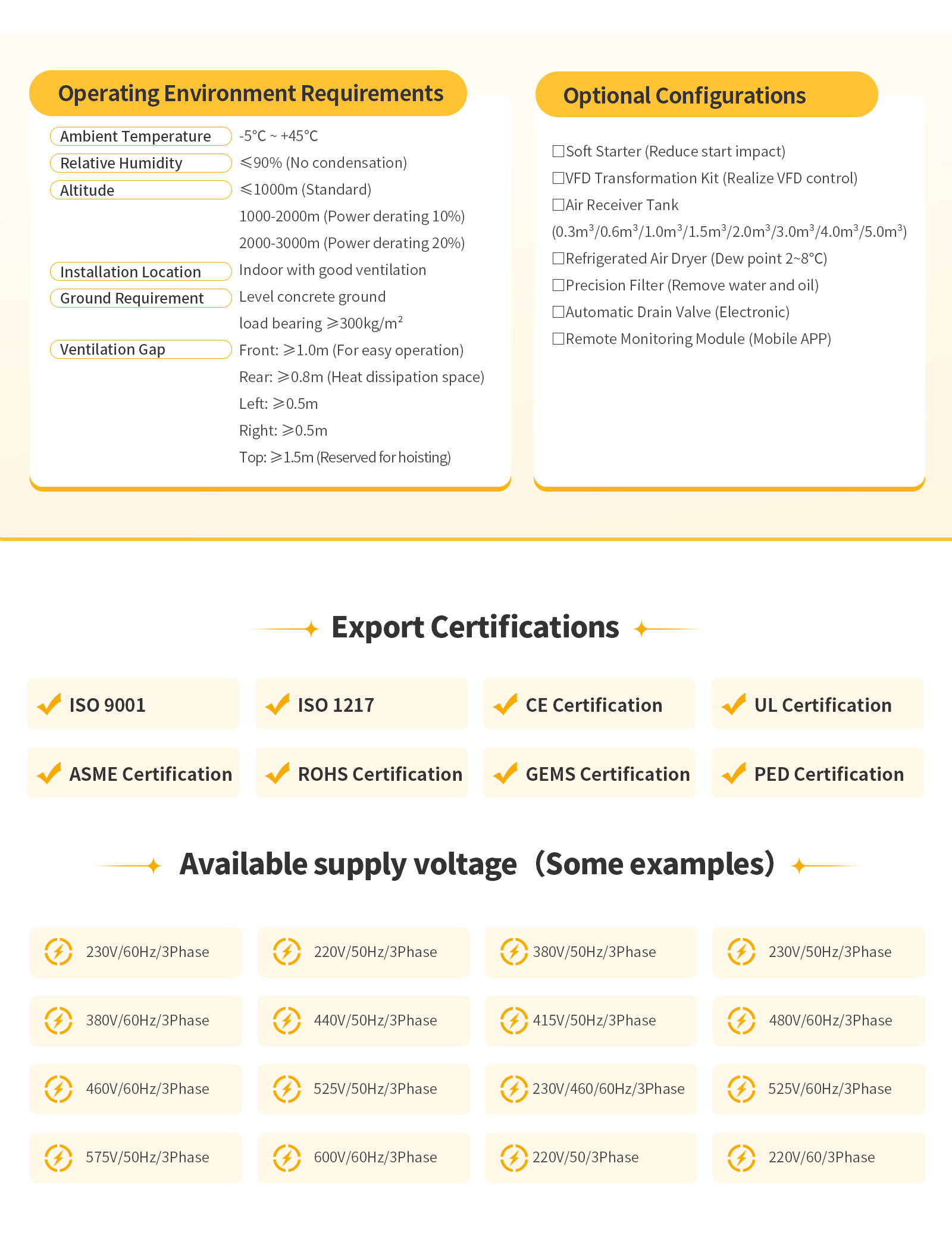

*FRIENDLY REMINDER: The standard specifications of our products are applicable to regions with an altitude below 1,000 meters. For usage environments exceeding 1,000 meters above sea level, please feel free to contact us for customized configurations to ensure optimal equipment performance and operational safety.
