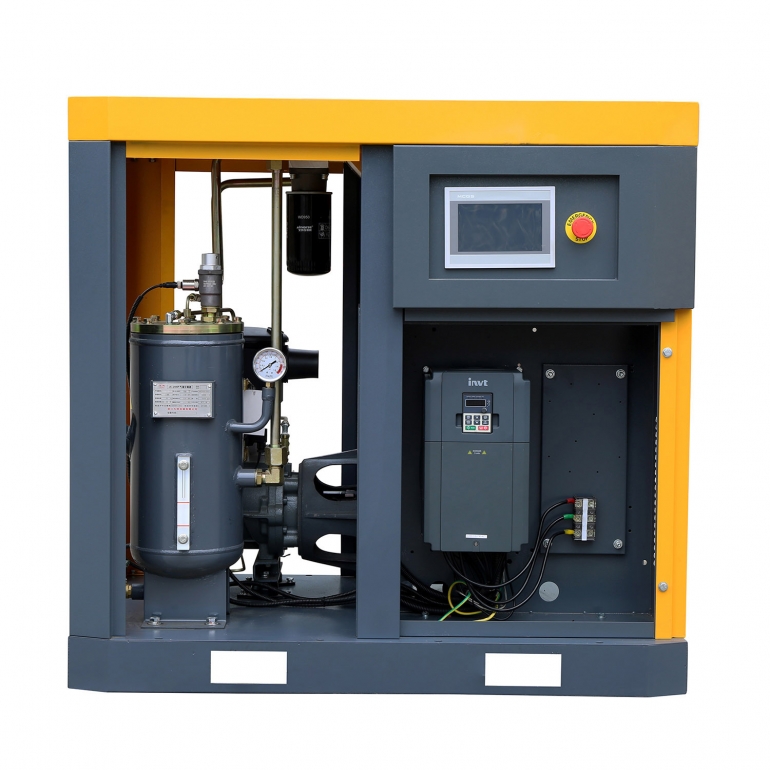

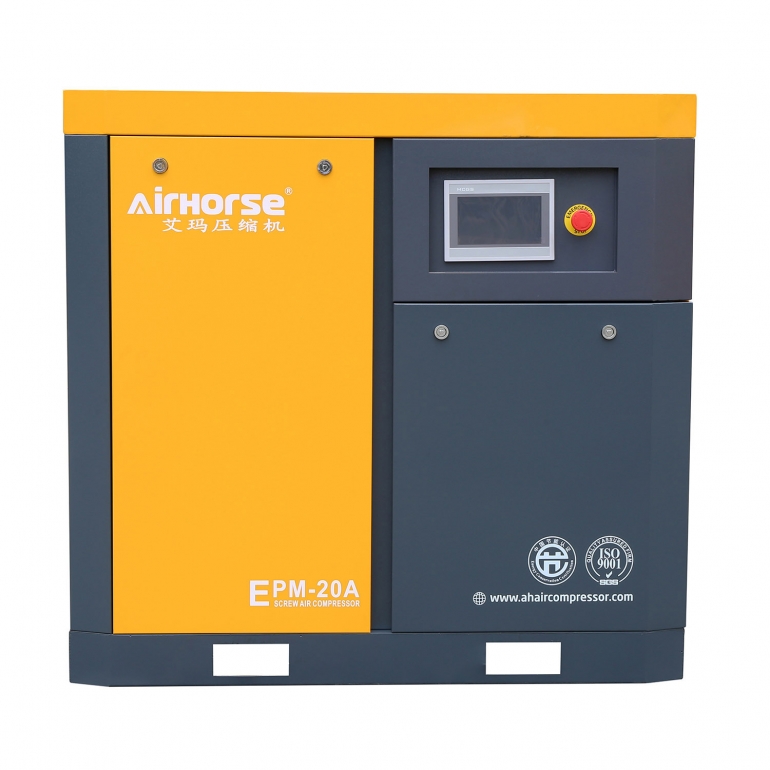

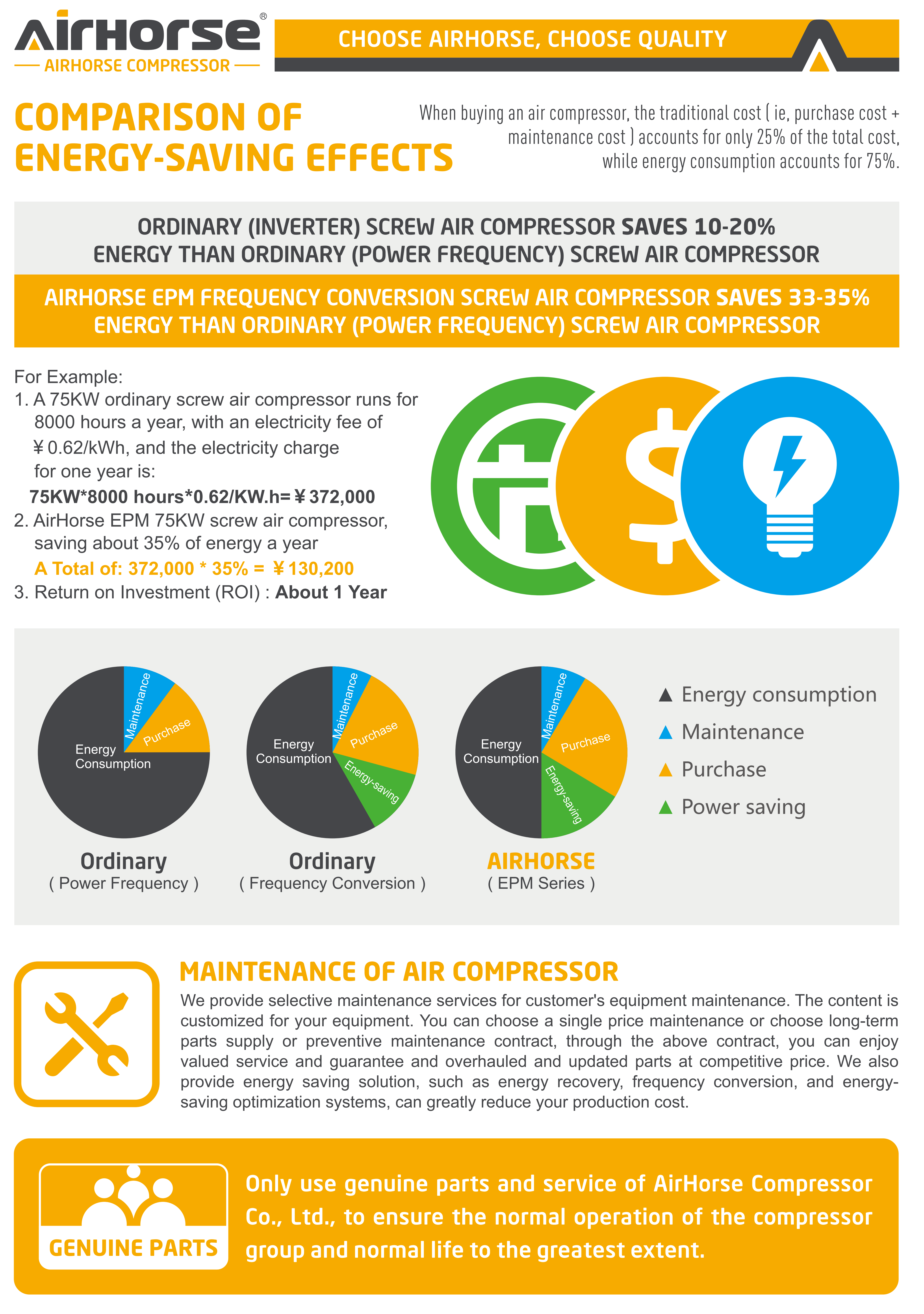

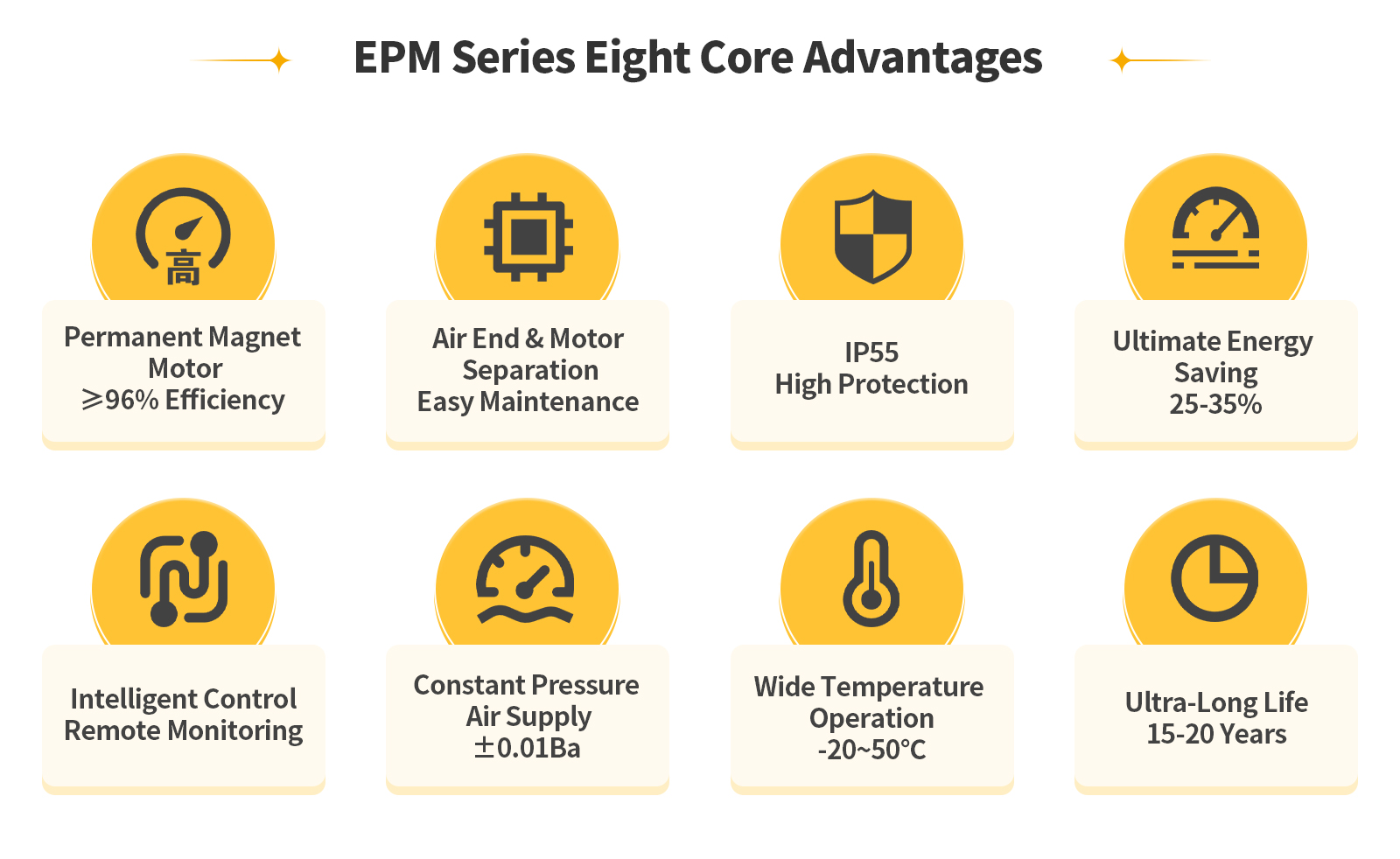

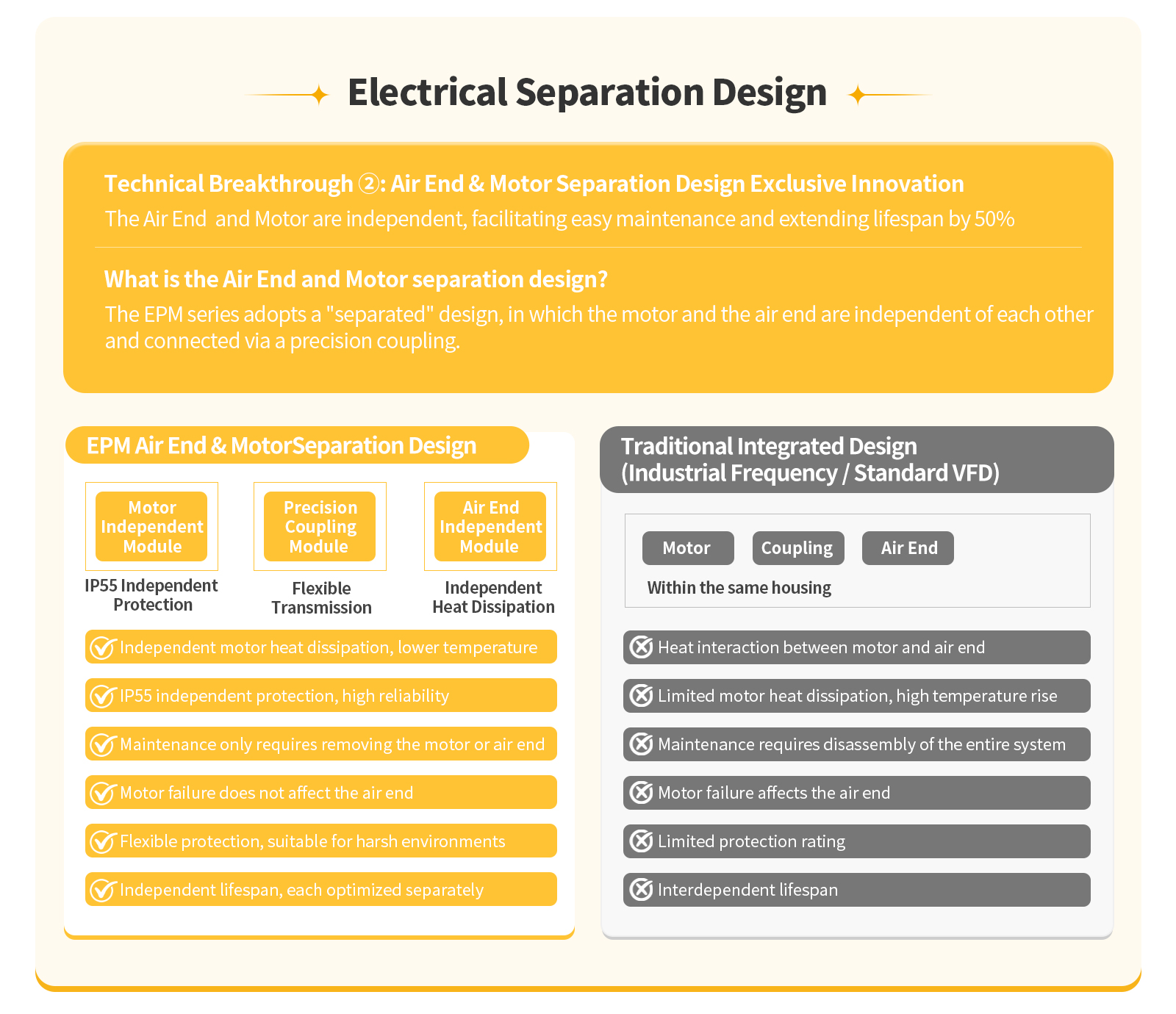

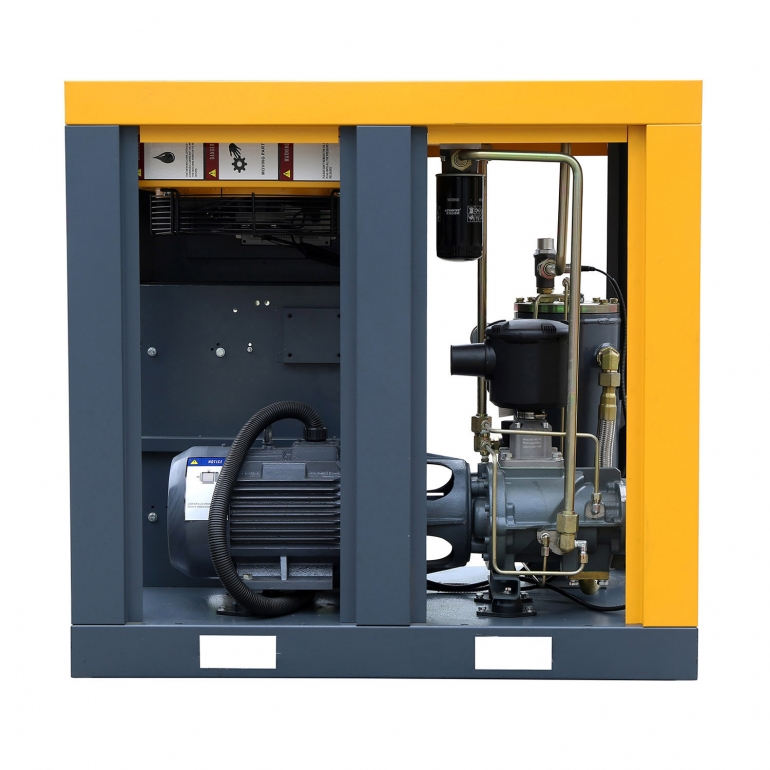

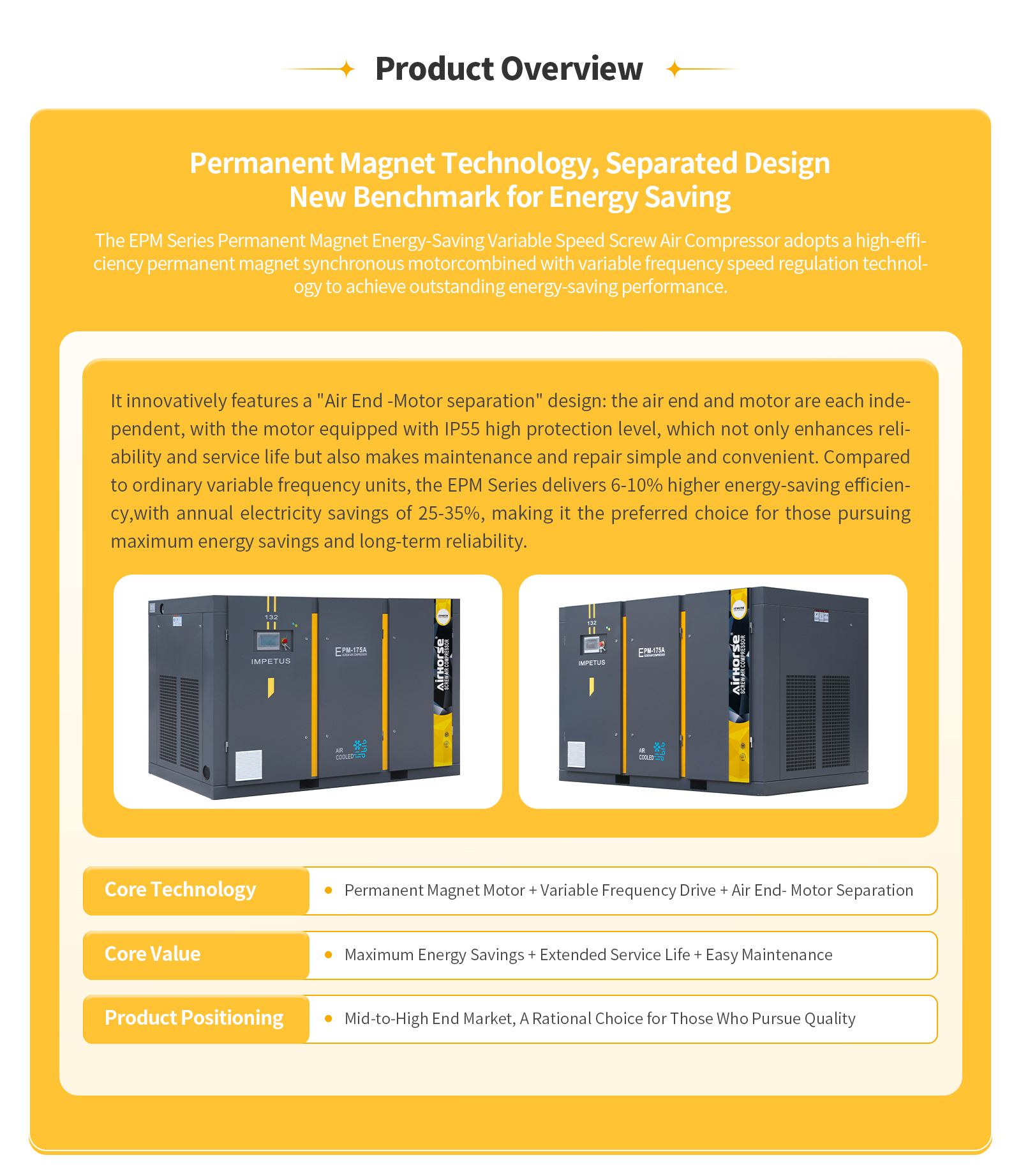

The PM VSD Screw Compressor 10-220HP, feature a separate air end and motor, IP55 protection, longer service life, easy maintenance, and deliver 15–35 % annual energy savings.

ENERGY SAVING AND ENVIRONMENTAL PROTECTION are new technological challenges for today's industrial product and have become the largest mission of air compressor industry in the 21st century.

In order to meet the needs of the times, leading its peers, Guangzhou Air Horse Compressor take meeting customers' demand as the core of technology development, constantly developing advanced leading screw compressors suitable for the trend of the times.

AirHorse EPM series screw air compressors are exporting to more than 100 countries and area, with advantage of reliable operation, low noise, long life, high efficiency and more energy-saving.

Next Product

Inquire Now

Product Details

Technical Parmeters

Catalogue Download

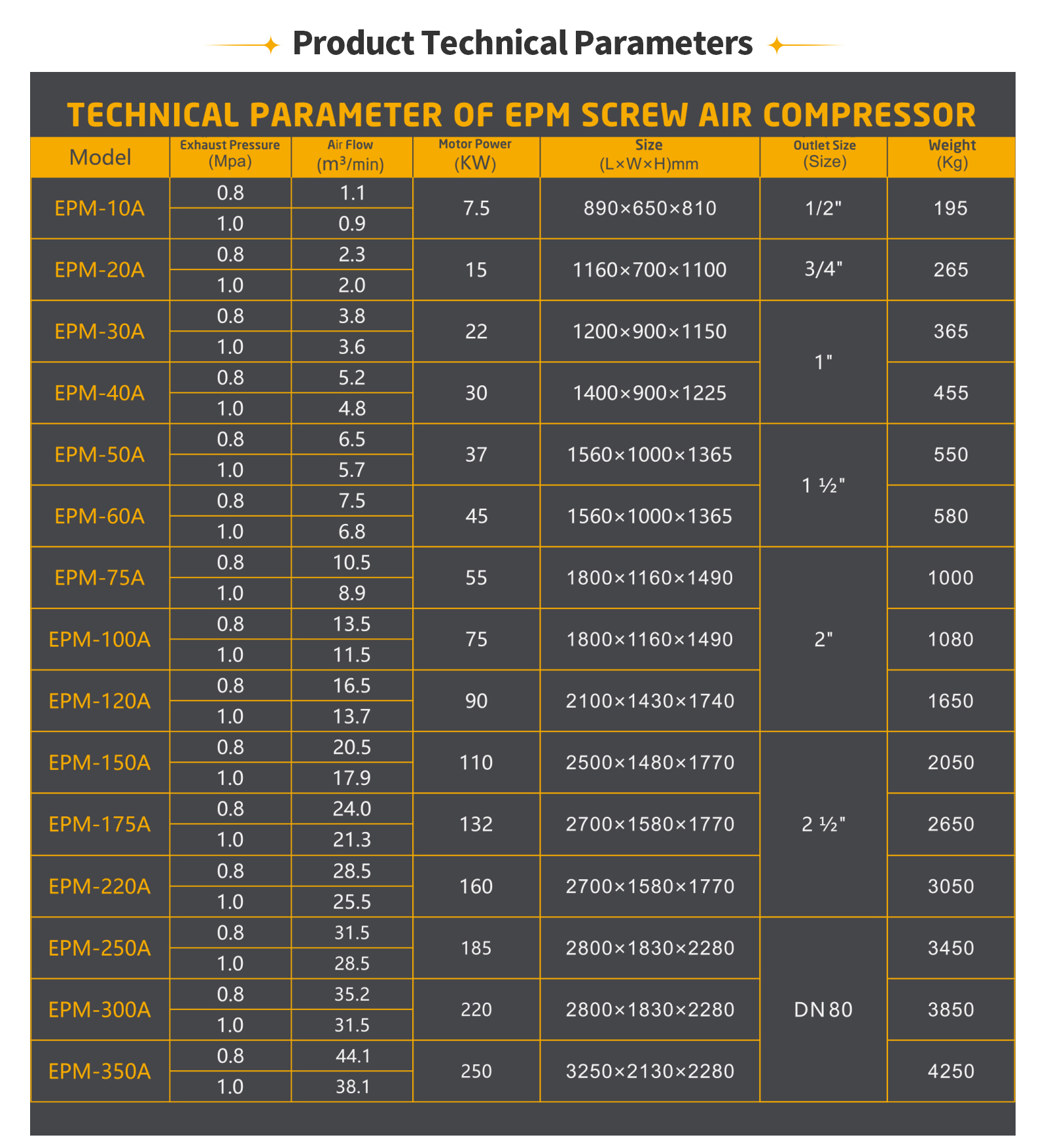

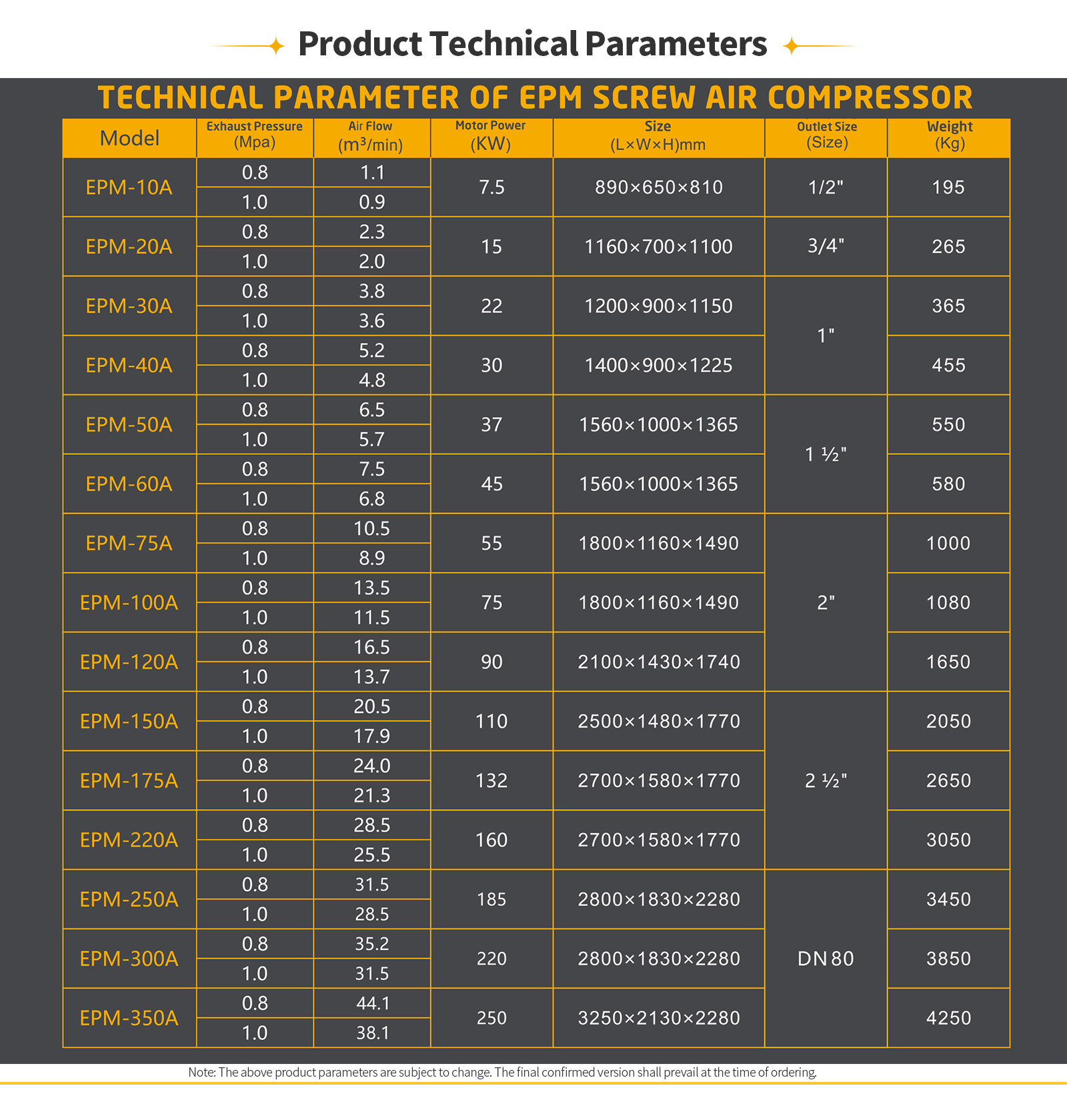

Technical Specifications of EPM screw air compressor
Model	Exhaust pressure	Air flow	Motor power	Size	Outlet size	Weight
	(Mpa)	(m³/min)	（KW）	（L×W×H）mm	(size)	(Kg)
EPM-10A	0.8	1.1	7.5	890650810	1/2"	195
	1	0.9

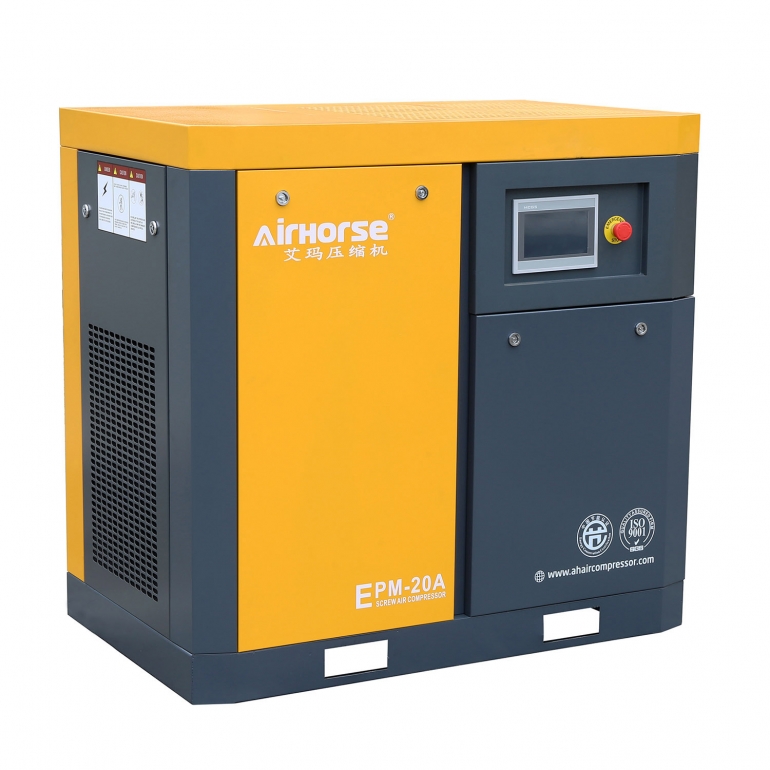

EPM-20A	0.8	2.3	15	11607001100	3/4''	265
	1	2
EPM-30A	0.8	3.8	22	12009001150	1"	365
	1	3.6
EPM-40A	0.8	5.2	30	14009001225		455
	1	4.8
EPM-50A	0.8	6.5	37	156010001365	1 ½"	550
	1	5.7
EPM-60A	0.8	7.5	45	156010001365		580
	1	6.8
EPM-75A	0.8	10.5	55	180011601490	2''	1000
	1	8.9
EPM-100A	0.8	13.5	75	180011601490		1080
	1	11.5
EPM-120A	0.8	16.5	90	210014301740		1650
	1	13.7
EPM-150A	0.8	20.5	110	250014801770	2 ½"	2050
	1	17.9

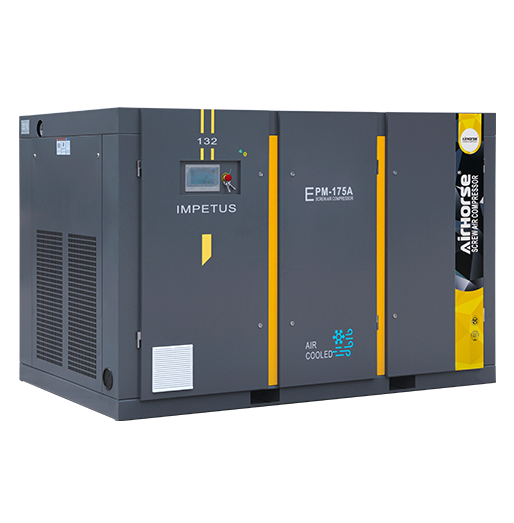

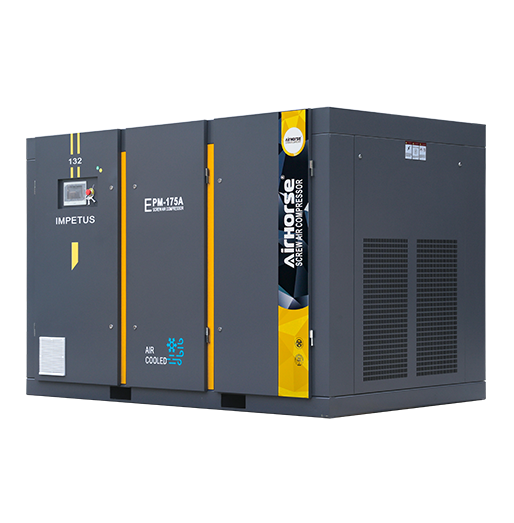

EPM-175A	0.8	24	132	270015801770		2650
	1	21.3
EPM-220A	0.8	28.5	160	270015801770		3050
	1	25.5
EPM-250A	0.8	31.5	185	280018302280	DN80	3450
	1	28.5
EPM-300A	0.8	35.2	220	280018302280	DN80	3850
	1	31.5
EPM-350A	0.8	44.1	250	325021302280	DN80	4250
	1	38.1

*FRIENDLY REMINDER: This parameter list is for reference only. We may adjust the related parameter. if there is any change, we will not inform you otherwise.If you do not know, please call us.

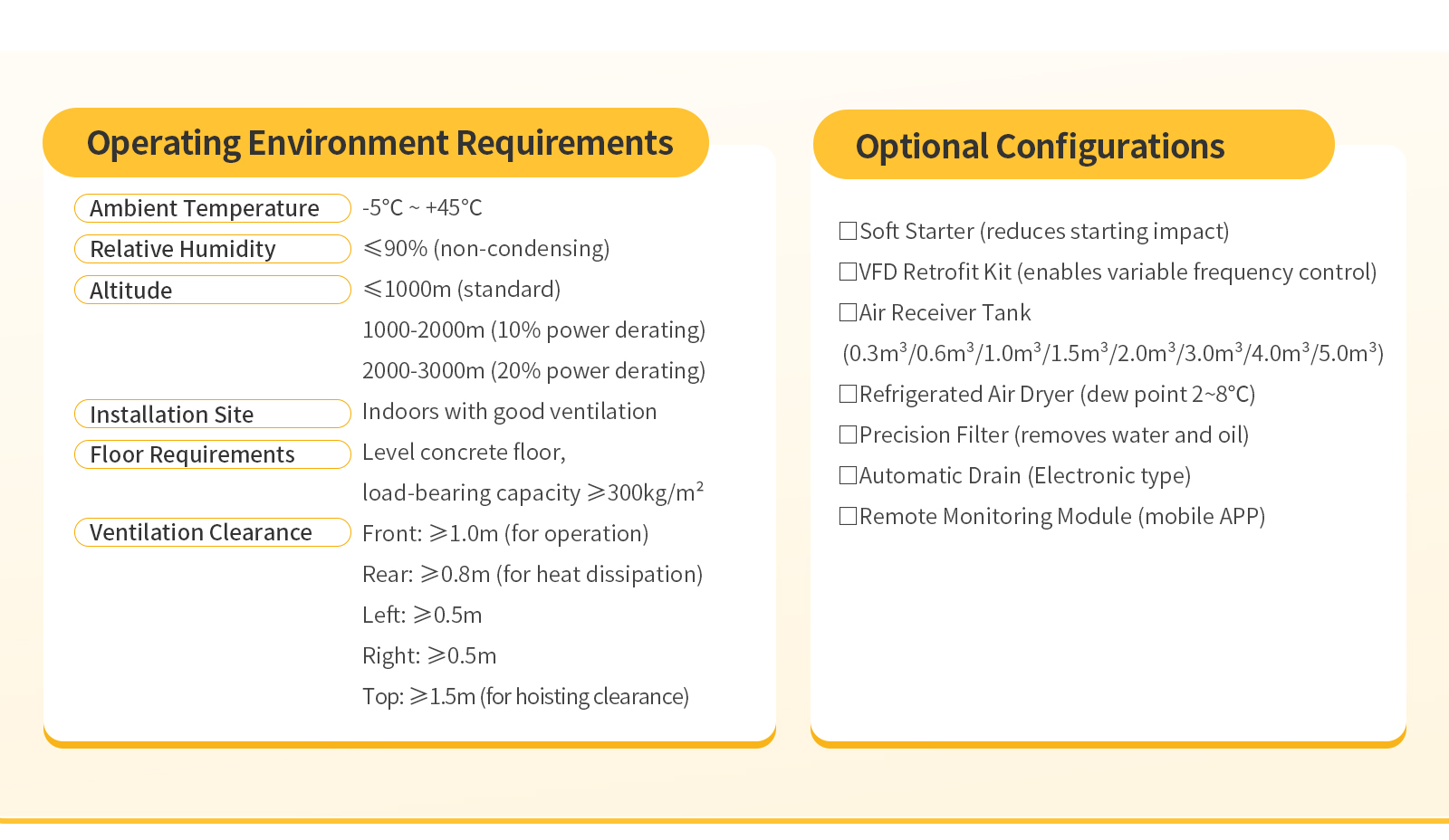

*FRIENDLY REMINDER: The standard specifications of our products are applicable to regions with an altitude below 1,000 meters. For usage environments exceeding 1,000 meters above sea level, please feel free to contact us for customized configurations to ensure optimal equipment performance and operational safety.

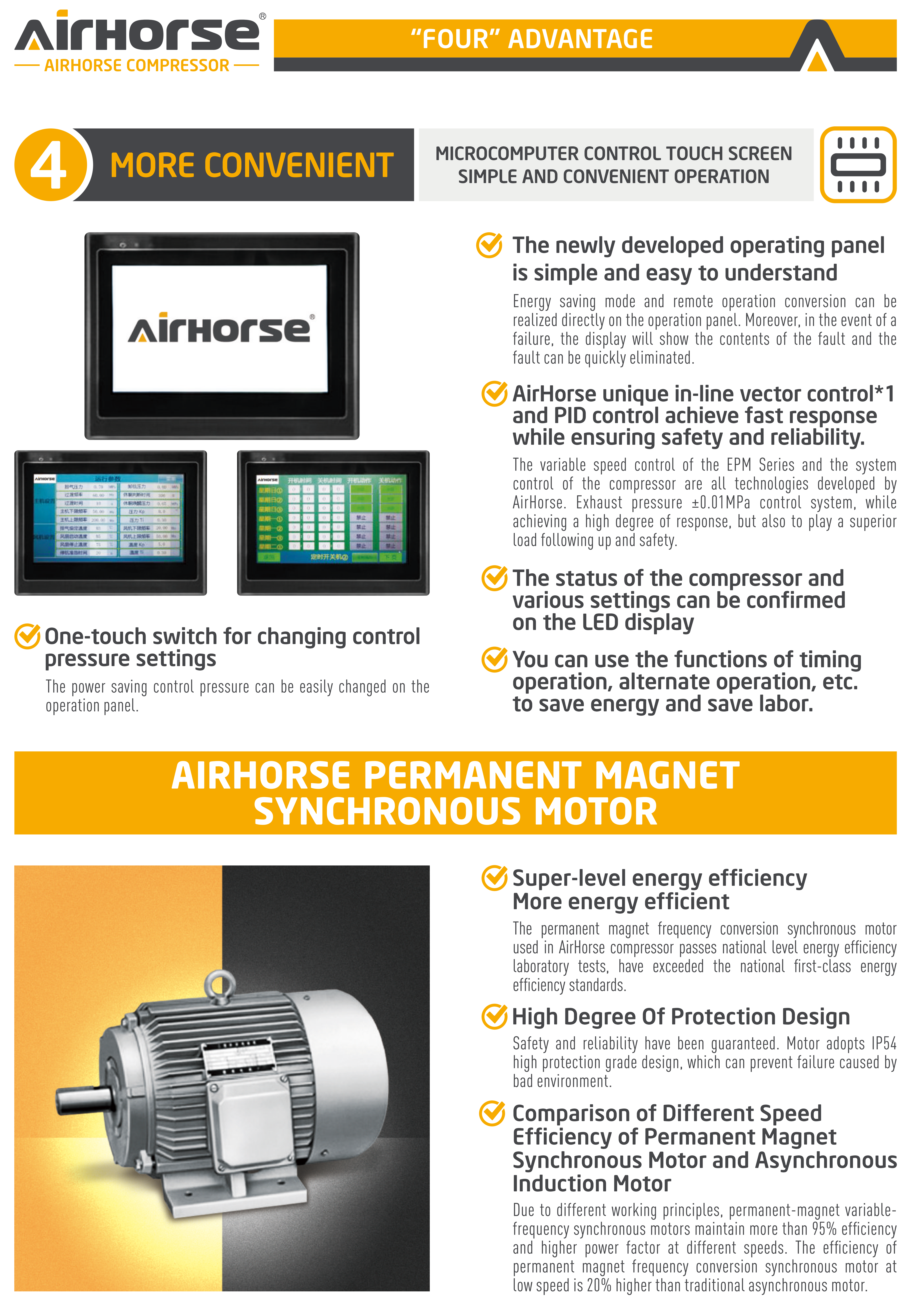

Permanent Magnetic VSD air compressor
Download

Why Choose Us ?

High Quality Control

AirHorse ensure every machine Runs well more than 15 years
Quickly Effect Shipment

Stock Available + Very Quickly Effect Shipment
24 Hours
Service

24 Hours Service Always at your service

AirHorse is an internationally renowned manufacturer of screw air compressors, please contact us for more information on air compressors. For a long time to provide you with high quality air compression services.
