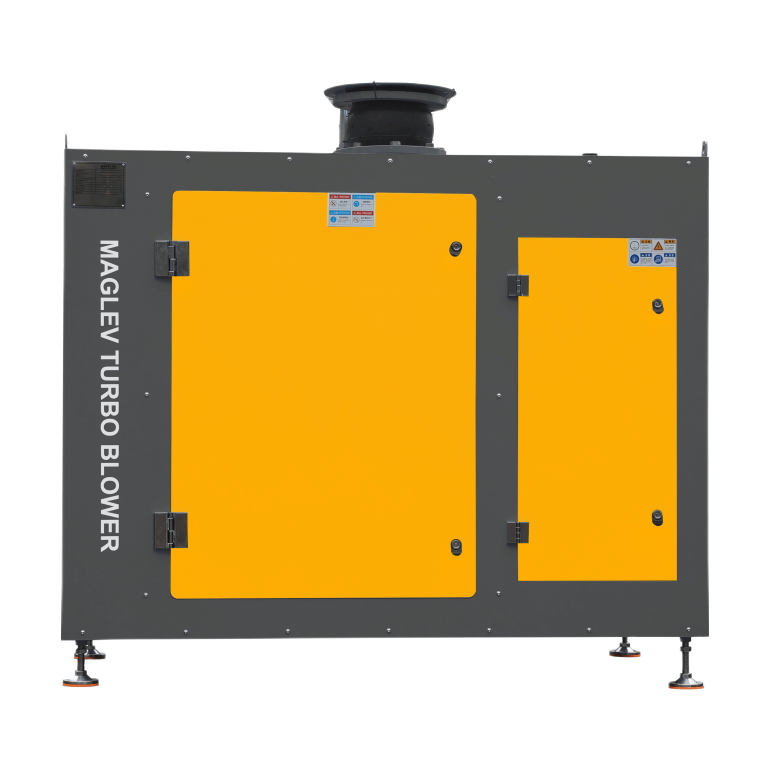

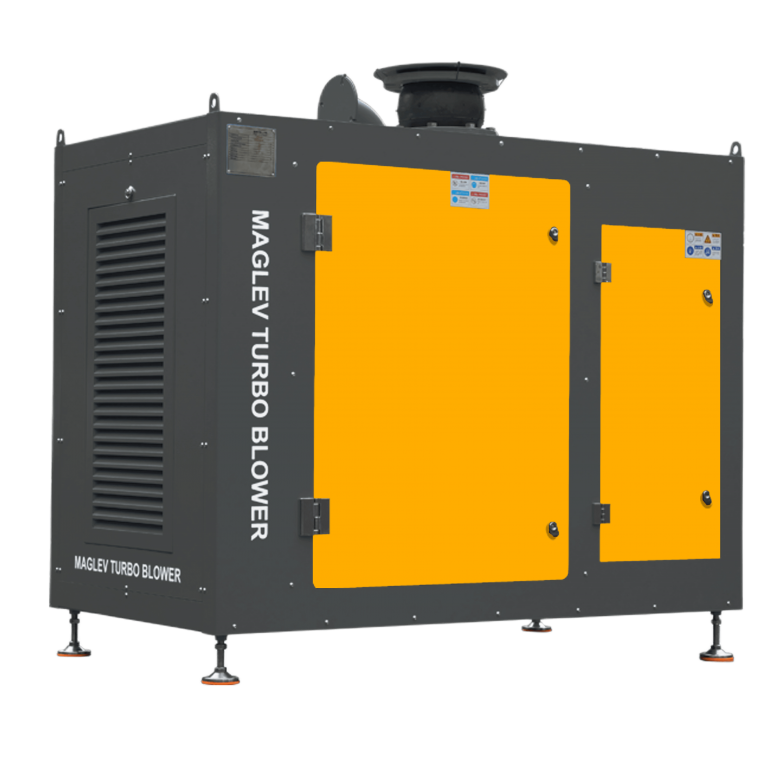

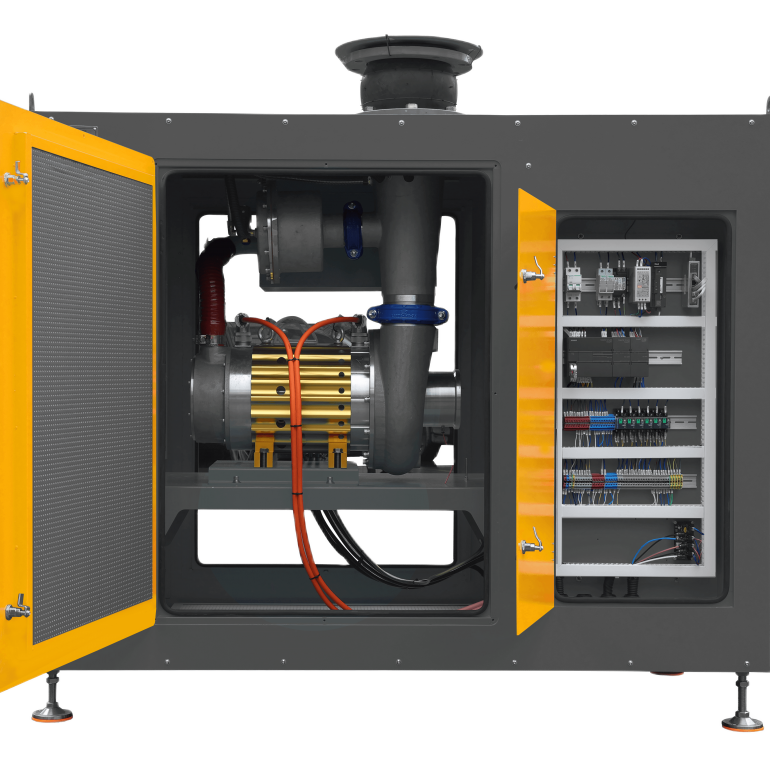

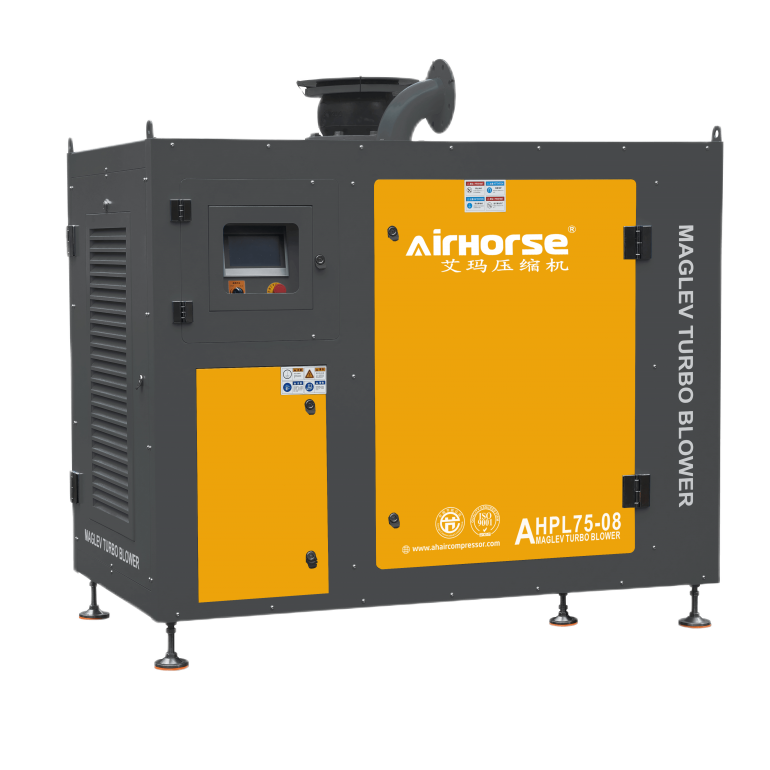

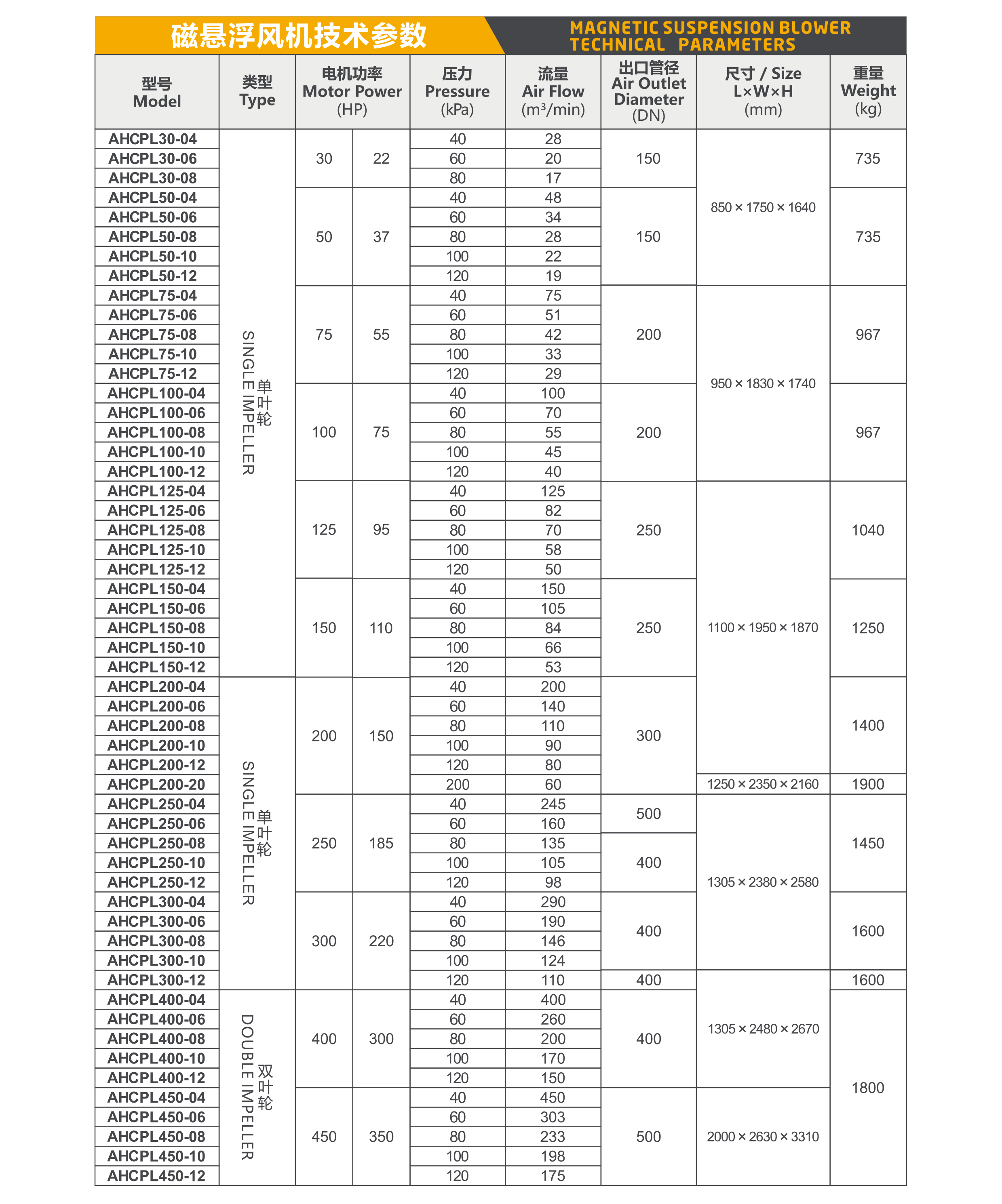

| AHCPL magnetic levitation blower |
||||||||
| Model | Type | Motor Power | Pressure | Air Flow | Air OutletDiameter | SizeLxWxH | Weight | |
| （HP） | （Bar） | （m³/min） | （DN） | （mm） | （KG） | |||
| AHPL10-04 | SINGLEIMPELLER | 10 | 7.5 | 0.4 | 10 | 100 | 760*1770*1590 | 350 |
| AHPL10-06 | 0.6 | 7 | ||||||
| AHPL10-08 | 0.8 | 5 | ||||||
| AHPL20-04 | 20 | 15 | 0.4 | 20 | 410 | |||
| AHPL20-06 | 0.6 | 14 | ||||||
| AHPL20-08 | 0.8 | 11 | ||||||
| AHPL30-04 | 30 | 22 | 0.4 | 28 | 150 | 450 | ||
| AHPL30-06 | 0.6 | 20 | ||||||
| AHPL30-08 | 0.8 | 17 | ||||||
| AHPL50-04 | SINGLEIMPELLER | 50 | 37 | 0.4 | 48 | 530 | ||
| AHPL50-06 | 0.6 | 34 | ||||||
| AHPL50-08 | 0.8 | 28 | ||||||
| AHPL50-10 | 1.0 | 22 | ||||||
| AHPL50-12 | 1.2 | 19 | ||||||
| AHPL75-04 | 75 | 55 | 0.4 | 75 | 200 | 735 | ||
| AHPL75-06 | 0.6 | 51 | ||||||
| AHPL75-08 | 0.8 | 42 | ||||||
| AHPL75-10 | 1.0 | 33 | ||||||
| AHPL75-12 | 1.2 | 29 | ||||||
| AHPL100-04 | 100 | 75 | 0.4 | 100 | 736 | |||
| AHPL100-06 | 0.6 | 70 | ||||||
| AHPL100-08 | 0.8 | 55 | ||||||
| AHPL100-10 | 1.0 | 45 | ||||||
| AHPL100-12 | 1.2 | 40 | ||||||
| AHPL125-04 | SINGLEIMPELLER | 125 | 95 | 0.4 | 125 | 250 | 1000*1850*1920 | 1035 |
| AHPL125-06 | 0.6 | 82 | ||||||
| AHPL125-08 | 0.8 | 70 | ||||||
| AHPL125-10 | 1.0 | 58 | ||||||
| AHPL125-12 | 1.2 | 50 | ||||||
| AHPL150-04 | 150 | 110 | 0.4 | 150 | 300 | 1040 | ||
| AHPL150-06 | 0.6 | 105 | ||||||
| AHPL150-08 | 0.8 | 84 | 250 | |||||
| AHPL150-10 | 1.0 | 66 | ||||||
| AHPL150-12 | 1.2 | 58 | ||||||
| AHPL200-04 | 200 | 150 | 0.4 | 200 | 300 | 1000*1980*1920 | 1045 | |
| AHPL200-06 | 0.6 | 140 | ||||||
| AHPL200-08 | 0.8 | 110 | ||||||
| AHPL200-10 | 1.0 | 90 | ||||||
| AHPL200-12 | 1.2 | 80 | ||||||
| AHPL250-04 | 250 | 185 | 0.4 | 245 | 300 | 1200*2305*2020 | 1080 | |
| AHPL250-06 | 0.6 | 160 | ||||||
| AHPL250-08 | 0.8 | 135 | ||||||
| AHPL250-10 | 1.0 | 112 | ||||||
| AHPL250-12 | 1.2 | 98 | ||||||
| AHPL300T-04 | DOUBLEIMPELLER | 300 | 220 | 0.4 | 290 | 400 | 1300*2500*2400 | 1600 |
| AHPL300T-06 | 0.6 | 210 | ||||||
| AHPL300T-08 | 0.8 | 164 | ||||||
| AHPL300T-10 | 1.0 | 133 | ||||||
| AHPL300T-12 | 1.2 | 115 | ||||||
| AHPL400T-04 | 400 | 300 | 0.4 | 400 | 500 | |||
| AHPL400T-06 | 0.6 | 272 | ||||||
| AHPL400T-08 | 0.8 | 216 | 400 | |||||
| AHPL400T-10 | 1.0 | 185 | ||||||
| AHPL400T-12 | 1.2 | 160 | ||||||
*FRIENDLY REMINDER: This parameter list is for reference only. We may adjust the related parameter. if there is any change, we will not inform you otherwise.If you do not know, please call us.
*FRIENDLY REMINDER: The standard specifications of our products are applicable to regions with an altitude below 1,000 meters. For usage environments exceeding 1,000 meters above sea level, please feel free to contact us for customized configurations to ensure optimal equipment performance and operational safety.
