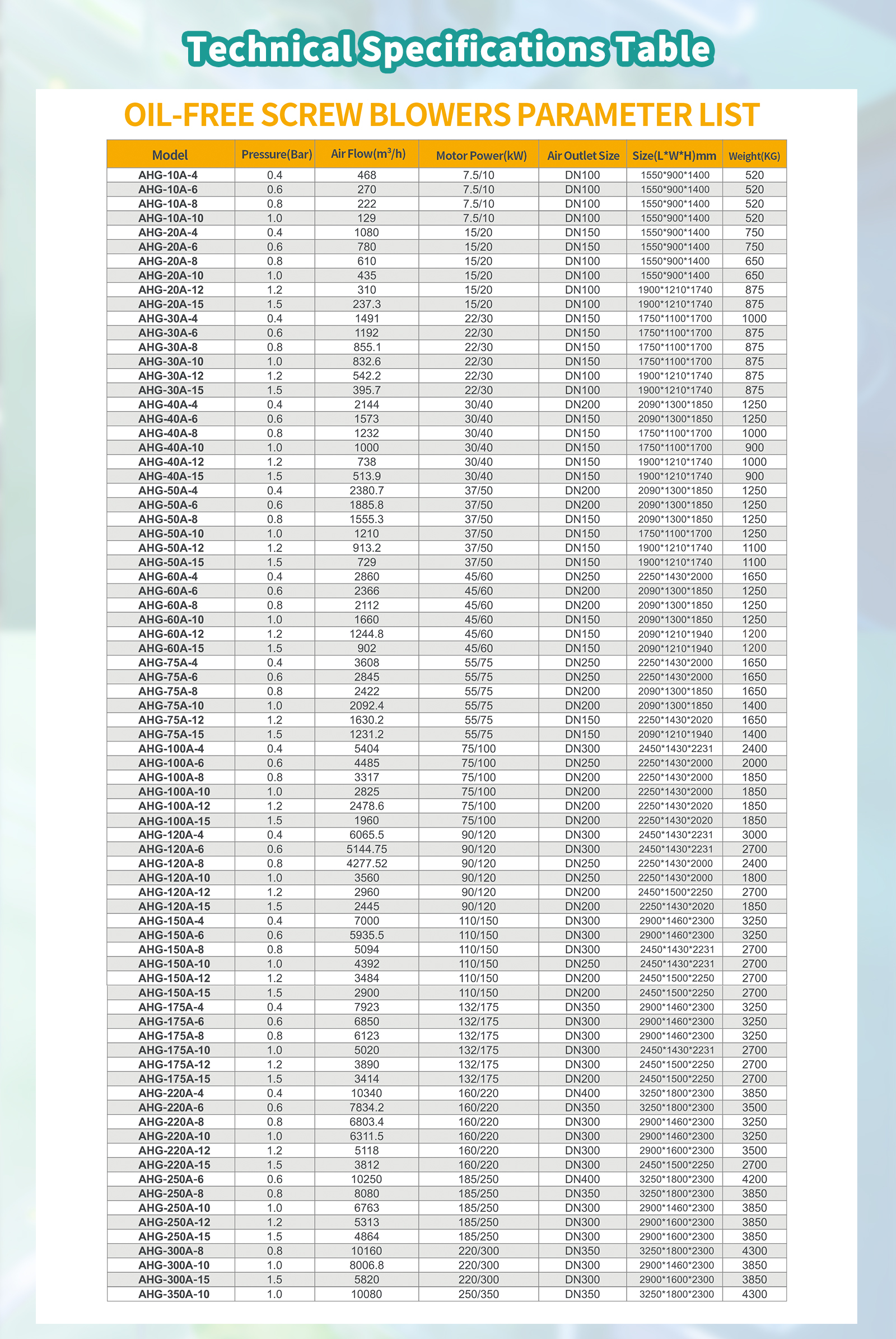

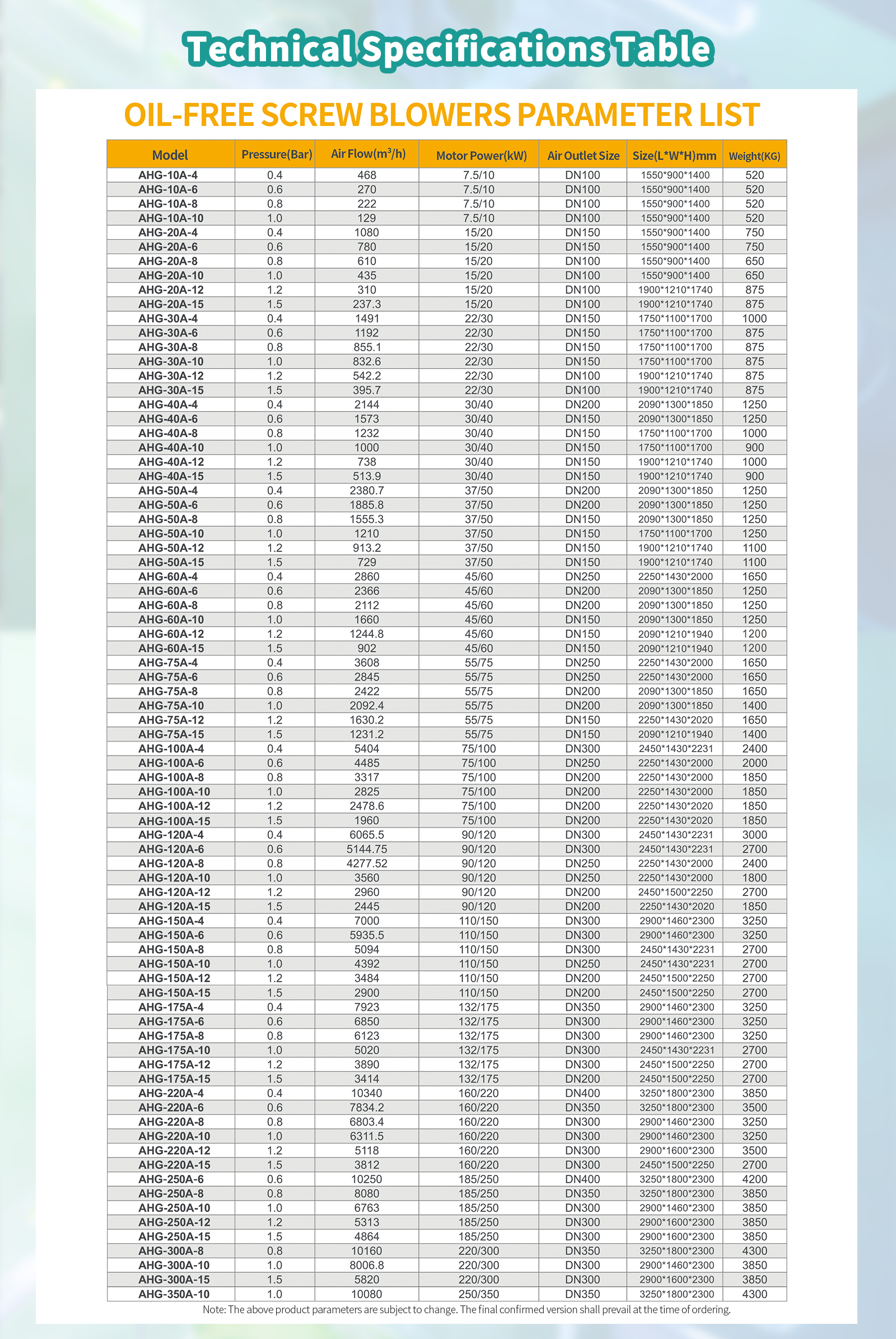

| OIL-FREE SCREW BLOWERS PARAMETER LIST | |||||||
| Model | Pressure | Air Flow | Motor Power | Motor Speed | Air Outlet Size |
Size | Weight |
| （Bar） | （m³/h） | （KW） | （rpm） | （L*W*H） | （KG） | ||
| AHG-10A-4 | 0.4 | 7.8 | 7.5/10 | 3000 | DN100 | 1550*900*1400 | 520 |
| AHG-10A-6 | 0.6 | 4.5 | 7.5/10 | 3300 | DN100 | 1550*900*1400 | 520 |
| AHG-10A-8 | 0.8 | 3.7 | 7.5/10 | 3000 | DN100 | 1550*900*1400 | 520 |
| AHG-10A-10 | 1 | 2.15 | 7.5/10 | 3300 | DN100 | 1550*900*1400 | 520 |
| AHG-20A-4 | 0.4 | 18 | 15/20 | 3000 | DN150 | 1550*900*1400 | 750 |
| AHG-20A-6 | 0.6 | 13 | 15/20 | 3000 | DN150 | 1550*900*1400 | 750 |
| AHG-20A-8 | 0.8 | 10.17 | 15/20 | 3000 | DN100 | 1550*900*1400 | 650 |
| AHG-20A-10 | 1 | 7.25 | 15/20 | 3000 | DN100 | 1550*900*1400 | 650 |
| AHG-20A-12 | 1.2 | 5.17 | 15/20 | 5000 | DN100 | 1900*1210*1740 | 875 |
| AHG-20A-15 | 1.5 | 3.96 | 15/20 | 4250 | DN100 | 875 | |
| AHG-30A-4 | 0.4 | 24.85 | 22/30 | 3300 | DN150 | 1750*1100*1700 | 1000 |
| AHG-30A-6 | 0.6 | 19.87 | 22/30 | 3300 | DN150 | 1750*1100*1700 | 875 |
| AHG-30A-8 | 0.8 | 14.25 | 22/30 | 3300 | DN150 | 1750*1100*1700 | 875 |
| AHG-30A-10 | 1 | 13.88 | 22/30 | 3300 | DN150 | 1750*1100*1700 | 875 |
| AHG-30A-12 | 1.2 | 9.04 | 22/30 | 6000 | DN100 | 1900*1210*1740 | 875 |
| AHG-30A-15 | 1.5 | 6.6 | 22/30 | 5000 | DN100 | 1900*1210*1740 | 875 |
| AHG-40A-4 | 0.4 | 35.73 | 30/40 | 3000 | DN200 | 2700*1300*2000 | 1250 |
| AHG-40A-6 | 0.6 | 26.22 | 30/40 | 2800 | DN150 | 2700*1300*2000 | 1250 |
| AHG-40A-8 | 0.8 | 20.53 | 30/40 | 3000 | DN150 | 1750*1210*1700 | 1000 |
| AHG-40A-10 | 1 | 16.67 | 30/40 | 3000 | DN150 | 1750*1210*1700 | 900 |
| AHG-40A-12 | 1.2 | 12.3 | 30/40 | 3000 | DN150 | 1900*1210*1740 | 1000 |
| AHG-40A-15 | 1.5 | 8.57 | 30/40 | 6000 | DN150 | 1900*1210*1740 | 900 |
| AHG-50A-4 | 0.4 | 39.68 | 37/50 | 3300 | DN250 | 2090*1300*1850 | 1250 |
| AHG-50A-6 | 0.6 | 31.43 | 37/50 | 3300 | DN250 | 2090*1300*1850 | 1250 |
| AHG-50A-8 | 0.8 | 25.92 | 37/50 | 2800 | DN250 | 2090*1300*1850 | 1250 |
| AHG-50A-10 | 1 | 20.17 | 37/50 | 3000 | DN150 | 1750*1100*1700 | 1250 |
| AHG-50A-12 | 1.2 | 15.22 | 37/50 | 3600 | DN150 | 1900*1210*1740 | 1100 |
| AHG-50A-15 | 1.5 | 12.15 | 37/50 | 3000 | DN150 | 1900*1210*1740 | 1100 |
| AHG-60A-4 | 0.4 | 47.67 | 45/60 | 3000 | DN250 | 2250*1430*2000 | 1650 |
| AHG-60A-6 | 0.6 | 39.43 | 45/60 | 3300 | DN200 | 2090*1300*1850 | 1250 |
| AHG-60A-8 | 0.8 | 35.2 | 45/60 | 3000 | DN200 | 2090*1300*1850 | 1250 |
| AHG-60A-10 | 147 | 27.67 | 45/60 | 3000 | DN150 | 2090*1300*1850 | 1250 |
| AHG-60A-12 | 1.2 | 20.75 | 45/60 | 3600 | DN150 | 2090*1210*1940 | 1100 |
| AHG-60A-15 | 1.5 | 15.03 | 45/60 | 3600 | DN150 | 2090*1210*1940 | 1100 |
| AHG-75A-4 | 0.4 | 60.13 | 55/75 | 3000 | DN250 | 2250*1430*2200 | 1650 |
| AHG-75A-6 | 0.6 | 47.42 | 55/75 | 3000 | DN250 | 2250*1430*2200 | 1650 |
| AHG-75A-8 | 0.8 | 40.37 | 55/75 | 3300 | DN200 | 2090*1300*1850 | 1650 |
| AHG-75A-10 | 1 | 34.87 | 55/75 | 3000 | DN200 | 2090*1300*1850 | 1400 |
| AHG-75A-12 | 1.2 | 27.17 | 55/75 | 3000 | DN150 | 2250*1430*2020 | 1650 |
| AHG-75A-15 | 1.5 | 20.52 | 55/75 | 3600 | DN150 | 2090*1210*1940 | 1400 |
| AHG-100A-4 | 0.4 | 90.07 | 75/100 | 3000 | DN300 | 2450*1430*2231 | 2400 |
| AHG-100A-6 | 0.6 | 74.75 | 75/100 | 3000 | DN250 | 2250*1430*2000 | 2000 |
| AHG-100A-8 | 0.8 | 55.28 | 75/100 | 2800 | DN200 | 2250*1430*2000 | 1850 |
| AHG-100A-10 | 1 | 47.08 | 75/100 | 3000 | DN200 | 2250*1430*2000 | 1850 |
| AHG-100A-12 | 1.2 | 41.31 | 75/100 | 3600 | DN200 | 2250*1430*2020 | 1850 |
| AHG-100A-15 | 1.5 | 32.67 | 75/100 | 3600 | DN200 | 2250*1430*2020 | 1850 |
| AHG-120A-4 | 0.4 | 101.09 | 90/120 | 2600 | DN300 | 2450*1430*2231 | 3000 |
| AHG-120A-6 | 0.6 | 85.75 | 90/120 | 2900 | DN300 | 2450*1430*2231 | 2700 |
| AHG-120A-8 | 0.8 | 71.29 | 90/120 | 2900 | DN250 | 2250*1430*2000 | 2400 |
| AHG-120A-10 | 1 | 59.33 | 90/120 | 3000 | DN250 | 2250*1430*2000 | 1800 |
| AHG-120A-12 | 1.2 | 49.33 | 90/120 | 2600 | DN200 | 2450*1500*2250 | 2700 |
| AHG-120A-15 | 1.5 | 40.75 | 90/120 | 3600 | DN200 | 2250*1430*2020 | 1850 |
| AHG-150A-4 | 0.4 | 116.67 | 110/150 | 3000 | DN300 | 2900*1460*2300 | 3250 |
| AHG-150A-6 | 0.6 | 98.93 | 110/150 | 2600 | DN300 | 2900*1460*2300 | 3250 |
| AHG-150A-8 | 0.8 | 84.9 | 110/150 | 2900 | DN300 | 2450*1430*2231 | 2700 |
| AHG-150A-10 | 1 | 73.2 | 110/150 | 3000 | DN250 | 2450*1430*2231 | 2700 |
| AHG-150A-12 | 1.2 | 58.07 | 110/150 | 3000 | DN200 | 2450*1500*2250 | 2700 |
| AHG-150A-15 | 1.5 | 48.33 | 110/150 | 2600 | DN200 | 2450*1500*2250 | 2700 |
| AHG-175A-4 | 0.4 | 132.05 | 132/175 | 3000 | DN350 | 2900*1460*2300 | 3250 |
| AHG-175A-6 | 0.6 | 114.17 | 132/175 | 3000 | DN300 | 2900*1460*2300 | 3250 |
| AHG-175A-8 | 0.8 | 102.05 | 132/175 | 2700 | DN300 | 2900*1460*2300 | 3250 |
| AHG-175A-10 | 1 | 83.67 | 132/175 | 2900 | DN300 | 2450*1430*2231 | 2700 |
| AHG-175A-12 | 1.2 | 64.83 | 132/175 | 3300 | DN300 | 2450*1500*2250 | 2700 |
| AHG-175A-15 | 1.5 | 56.9 | 132/175 | 3000 | DN200 | 2450*1500*2250 | 2700 |
| AHG-220A-4 | 0.4 | 172.33 | 160/220 | 3000 | DN400 | 3250*1800*2300 | 3850 |
| AHG-220A-6 | 0.6 | 130.57 | 160/220 | 3000 | DN350 | 3250*1800*2300 | 3500 |
| AHG-220A-8 | 0.8 | 113.39 | 160/220 | 3000 | DN300 | 2900*1460*2300 | 3250 |
| AHG-220A-10 | 1 | 105.19 | 160/220 | 2800 | DN300 | 2900*1460*2300 | 3250 |
| AHG-220A-12 | 1.2 | 85.3 | 160/220 | 2900 | DN300 | 2900*1600*2300 | 3500 |
| AHG-220A-15 | 1.5 | 63.53 | 160/220 | 3300 | DN300 | 2450*1500*2250 | 2700 |
| AHG-250A-6 | 0.6 | 170.83 | 185/250 | 3000 | DN400 | 3250*1800*2300 | 4200 |
| AHG-250A-8 | 0.8 | 134.67 | 185/250 | 3000 | DN350 | 3250*1800*2300 | 3850 |
| AHG-250A-10 | 1 | 112.72 | 185/250 | 3000 | DN300 | 2900*1460*2300 | 3850 |
| AHG-250A-12 | 1.2 | 88.55 | 185/250 | 3000 | DN300 | 2900*1600*2300 | 3850 |
| AHG-250A-15 | 1.5 | 81.07 | 185/250 | 2800 | DN300 | 2900*1600*2300 | 3850 |
| AHG-300A-8 | 0.8 | 169.33 | 220/300 | 3000 | DN350 | 3250*1800*2300 | 4300 |
| AHG-300A-10 | 1.0 | 133.45 | 220/300 | 3000 | DN300 | 2900*1460*2300 | 3850 |
| AHG-300A-15 | 1.5 | 97 | 220/300 | 3300 | DN300 | 2900*1460*2300 | 3850 |
| AHG-350A-10 | 1.0 | 168 | 250/350 | 3000 | DN350 | 3250*1800*2300 | 4300 |
*FRIENDLY REMINDER: This parameter list is for reference only. We may adjust the related parameter. if there is any change, we will not inform you otherwise.If you do not know, please call us.
*FRIENDLY REMINDER: The standard specifications of our products are applicable to regions with an altitude below 1,000 meters. For usage environments exceeding 1,000 meters above sea level, please feel free to contact us for customized configurations to ensure optimal equipment performance and operational safety.
